Description

The Laser Beam Profiler from IZAK Scientific is a cutting-edge solution for precise laser beam characterization across multiple spectral ranges, including VIS, NIR, SWIR and LWIR as well as standalone application can work with any beam profiler or imager. This versatile tool is designed to provide in-depth analysis of laser beams for various applications, delivering comprehensive insights into beam quality.

The Laser Beam Profiler comes equipped with all the powerful features of our well-established Beam Profilers, including the ability to measure key beam parameters such as:

• Beam Width: Accurately analyze the full-width half maximum (FWHM) and 1/e² diameter.
• Ellipticity: Assess the symmetry of the beam, ensuring optimal shape and performance.
• Center of Mass: Determine the beam’s alignment for precise positioning.
• Beam Position: Locate the beam’s position within the measurement frame.
• Azimuth Angle: Evaluate the beam’s orientation for directional applications.
• Peak Value: Monitor the intensity profile to ensure beam stability and quality.

In addition to these core capabilities, the Laser Beam Profiler features our advanced Test functionality, which automates the testing process for production environments. The Test feature allows users to define pass/fail criteria for each parameter and perform an automated assessment with just one click, generating comprehensive reports that include CSV files, screenshots, and raw beam images. This makes the Laser Beam Profiler an ideal choice for production line testing, quality assurance, and research applications that require repeatable, high-precision beam measurements.

Laser Beam Profiler Versions

The Laser Beam Profiler is available in several versions tailored for different spectral bands, each providing the same core features and high-precision measurement capabilities as well as the beam profiler hardware:

1. Laser Beam Profiler for VIS (Visible Spectrum)
   • Designed for applications in the visible spectrum range, this version is perfect for characterizing beams used in optical systems, laser displays, and general research in visible wavelengths.
2. Laser Beam Profiler for NIR-SWIR (Near Infrared)
   • Optimized for Near Infrared lasers or Short Wave Infrared lasers, this version supports applications such as fiber optics, medical devices, and telecommunications where precise beam profiling in the NIR range is crucial.
3. Laser Beam Profiler for LWIR (Long-Wave Infrared)
   • Developed for Long-Wave Infrared beams, this version is ideal for thermal imaging systems, CO2 laser analysis, and other LWIR-specific applications requiring accurate beam profiling.
4. Laser Beam Profiler Application
   • Delivered as a standalone application with a USB dongle license, this version can work with any imager, offering unmatched flexibility and adaptability for integration into existing systems. This version comes with an application license on USB dongle without beam profiler hardware.

Each version is built to provide unparalleled accuracy and efficiency, ensuring consistent results across different wavelengths. By offering a streamlined solution without unnecessary components, the Laser Beam Profiler is a cost-effective and powerful tool for users seeking robust laser beam analysis in production lines and research facilities.

These profilers are the perfect solution for industrial production lines, quality assurance, research laboratories, and a variety of specialized applications where laser beam quality is crucial. Each of the beam profilers can be triggered using either hardware or software triggers, providing maximum flexibility to fit into any experimental setup or production environment.

Exposure times from micro-seconds to a few seconds

See demo – Basic Operation:

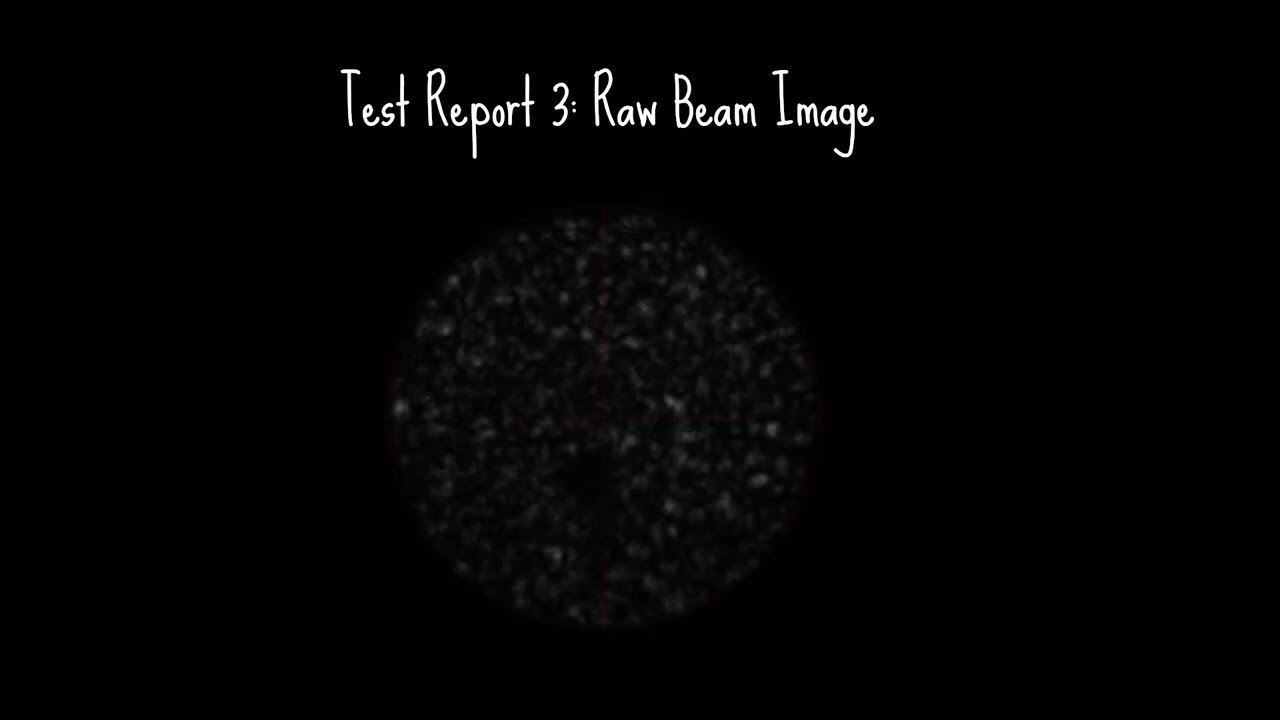

See demo – Test and Report Feature:





See demo – Fractional Laser Beam Profiler Feature:



Additional Information:

• Support & Warranty: All TriBeam Precision systems come with a one-year warranty and full technical support.
• Customization: Need a specific configuration? Contact us for customized solutions to fit your precise requirements.
• API: The beam profiler application can also be delivered as an API for integration into other software applications, offering further flexibility to meet specific user needs.

Notice, the user must ensure proper beam attenuation when necessary. For a complete product that includes not only the beam profiler but also attenuators, a power meter, and a fast sensor for temporal pulse shape analysis, please refer to our TriBeam Precision product.
