Mid-Wave Infrared Beam Profiling

MWIR Laser Beam Profilers | 1.5–5.7 µm

Twelve cooled MWIR configurations spanning standard, high-speed, high-resolution and ultra-HD beam profiling for R&D, production and automated inspection.

AI built inTest & Pass/Fail includedTurnkey, OEM or integration

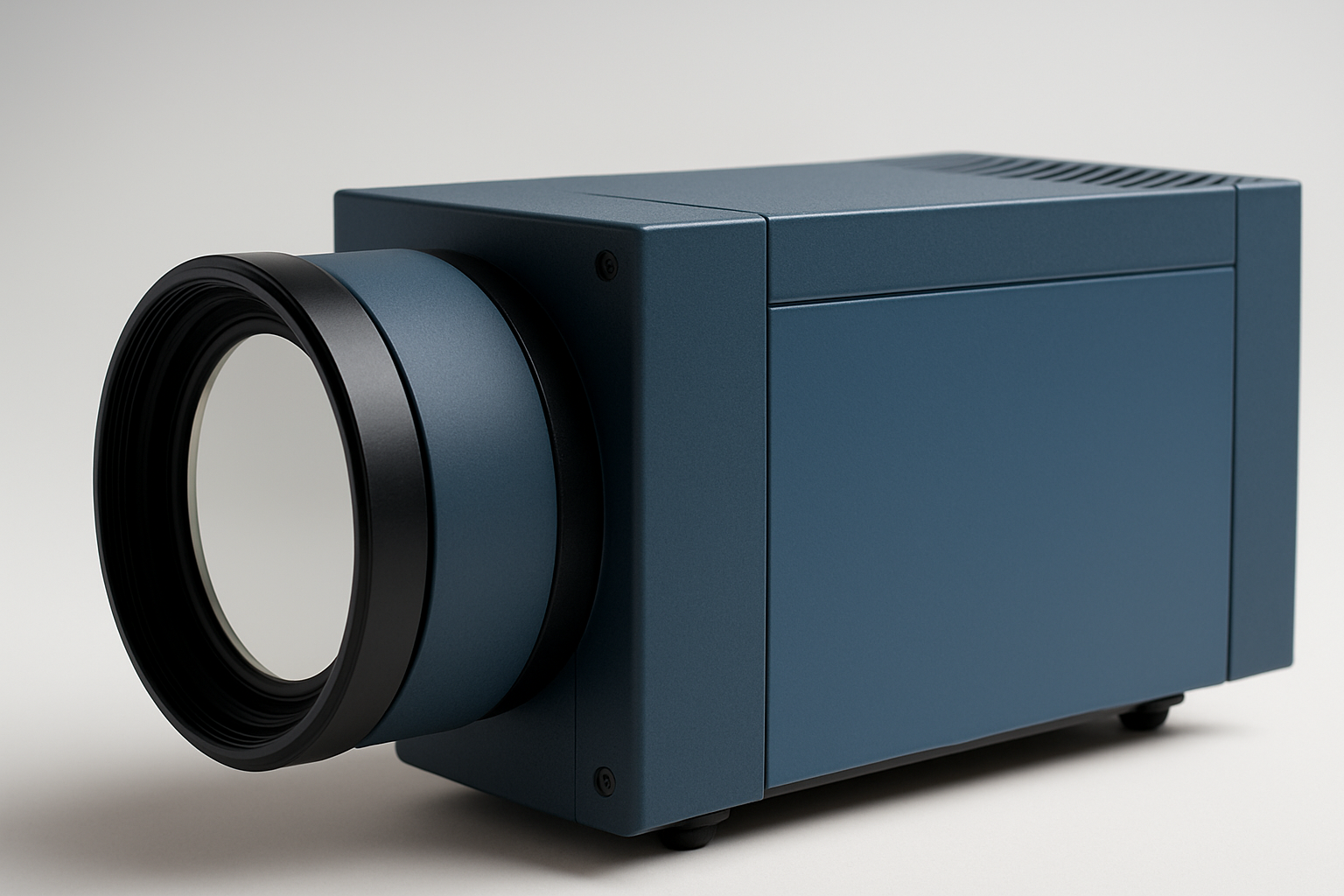

IZAK Scientific MWIR laser beam profiler system — MWIR system image. The detector, high-speed interface, filter wheel and cable set are finalized for the measurement range and frame-rate requirement.

Choose your configuration

Choose the detector according to wavelength, active width, spatial resolution and required frame rate. Available configurations extend from 75 Hz to 1004 Hz and from 0.08 MP to 2.95 MP.

33001MWIR Standard 75 Hz – 7.7 mm / 0.08 MPSpectral range3.7–4.8 µmActive width7.7 mmResolution320×256 (0.08 MP)

MWIR Standard 75 Hz – 7.7 mm / 0.08 MP

Spectral range: 3.7–4.8 µm. Active width: 7.7 mm. Resolution: 320×256 (0.08 MP). Frame rate: 75 Hz. 14-bit; 5-position filter/aperture wheels.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 33001GigE · optional HDMIGigE cable, power and trigger I/O cable; HDMI kit if selected.Request a quote

33002MWIR High-Speed 481 Hz – 7.7 mm / 0.08 MPSpectral range3.7–4.8 µmActive width7.7 mmResolution320×256 (0.08 MP)

MWIR High-Speed 481 Hz – 7.7 mm / 0.08 MP

Spectral range: 3.7–4.8 µm. Active width: 7.7 mm. Resolution: 320×256 (0.08 MP). Frame rate: 481 Hz. 16-bit high-speed configuration.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 33002GigE · optional HDMIGigE cable, power and trigger/analog I/O cable; HDMI kit if selected.Request a quote

33003Broadband MWIR 75 Hz – 15.4 mm / 0.33 MPSpectral range1.5–5.7 µmActive width15.4 mmResolution640×512 (0.33 MP)

Broadband MWIR 75 Hz – 15.4 mm / 0.33 MP

Spectral range: 1.5–5.7 µm. Active width: 15.4 mm. Resolution: 640×512 (0.33 MP). Frame rate: 75 Hz. 14-bit.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 33003GigE · optional HDMIGigE cable, power and I/O cable; MCT or InSb detector configuration.Request a quote

33004Broadband MWIR 151 Hz – 15.4 mm / 0.33 MPSpectral range1.5–5.7 µmActive width15.4 mmResolution640×512 (0.33 MP)

Broadband MWIR 151 Hz – 15.4 mm / 0.33 MP

Spectral range: 1.5–5.7 µm. Active width: 15.4 mm. Resolution: 640×512 (0.33 MP). Frame rate: 151 Hz. 16-bit.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 33004GigE · optional Camera Link / HDMIGigE cable, power and I/O; Camera Link or HDMI kit if selected.Request a quote

33005Broadband MWIR 232 Hz – 15.4 mm / 0.33 MPSpectral range1.5–5.7 µmActive width15.4 mmResolution640×512 (0.33 MP)

Broadband MWIR 232 Hz – 15.4 mm / 0.33 MP

Spectral range: 1.5–5.7 µm. Active width: 15.4 mm. Resolution: 640×512 (0.33 MP). Frame rate: 232 Hz. 16-bit.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 33005GigE · optional 10GigE / dual Camera Link / HDMISelected data cable/interface card, power and I/O cable.Request a quote

33006Ultra-Fast MWIR 1004 Hz – 12.8 mm / 0.33 MPSpectral range1.5–5.5 µmActive width12.8 mmResolution640×512 (0.33 MP)

Ultra-Fast MWIR 1004 Hz – 12.8 mm / 0.33 MP

Spectral range: 1.5–5.5 µm. Active width: 12.8 mm. Resolution: 640×512 (0.33 MP). Frame rate: 1004 Hz. 14-bit.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 3300610GigE · optional HDMI10GigE cable and NIC, power and trigger/analog I/O cable.Request a quote

33007High-Resolution MWIR – 10.2 mm / 1.3 MPSpectral range1.5–5.5 µmActive width10.2 mmResolution1280×1024 (1.3 MP)

High-Resolution MWIR – 10.2 mm / 1.3 MP

Spectral range: 1.5–5.5 µm. Active width: 10.2 mm. Resolution: 1280×1024 (1.3 MP). Frame rate: 180 Hz. 16-bit.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 33007GigE / 10GigE / Camera Link · optional HDMISelected data cable/interface card, power and trigger/analog I/O cable.Request a quote

33008Fast MWIR 622 Hz – 10.2 mm / 0.33 MPSpectral range1.5–5.5 µmActive width10.2 mmResolution640×512 (0.33 MP)

Fast MWIR 622 Hz – 10.2 mm / 0.33 MP

Spectral range: 1.5–5.5 µm. Active width: 10.2 mm. Resolution: 640×512 (0.33 MP). Frame rate: 622 Hz. 16-bit.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 3300810GigE / Camera Link · optional HDMISelected high-speed data cable/interface card, power and I/O cable.Request a quote

33009High-Resolution MWIR 180 Hz – 10.2 mm / 1.3 MPSpectral range1.5–5.5 µmActive width10.2 mmResolution1280×1024 (1.3 MP)

High-Resolution MWIR 180 Hz – 10.2 mm / 1.3 MP

Spectral range: 1.5–5.5 µm. Active width: 10.2 mm. Resolution: 1280×1024 (1.3 MP). Frame rate: 180 Hz. 16-bit.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 3300910GigE / Camera Link · optional GigE / HDMISelected data cable/interface card, power and trigger/analog I/O cable.Request a quote

33010MWIR HD – 8.6 mm / 0.92 MPSpectral range3.5–4.8 µmActive width8.6 mmResolution1280×720 (0.92 MP)

MWIR HD – 8.6 mm / 0.92 MP

Spectral range: 3.5–4.8 µm. Active width: 8.6 mm. Resolution: 1280×720 (0.92 MP). Frame rate: 120 Hz. 14-bit.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 3301010GigE · optional GigE / dual Camera Link / HDMI10GigE cable/NIC, power and I/O; alternative interface kit if selected.Request a quote

33011MWIR Ultra-HD – 15.4 mm / 2.95 MPSpectral range3.6–4.9 µmActive width15.4 mmResolution1920×1536 (2.95 MP)

MWIR Ultra-HD – 15.4 mm / 2.95 MP

Spectral range: 3.6–4.9 µm. Active width: 15.4 mm. Resolution: 1920×1536 (2.95 MP). Frame rate: 113 Hz. 14-bit.

Live 2D/3D profiling and complete beam parameters
Test, Pass/Fail, reporting and AI analytics built in
Fractional/multiple-spot analysis, custom attenuation/optics and API/OEM integration available on request

SKU 3301110GigE · optional HDMI10GigE cable and NIC, power and trigger/analog I/O cable.Request a quote

33012Compact MWIR OEM – Most Cost-Effective – 9.6 mm / 0.33 MPSpectral range1.5–5.7 µmActive width9.6 mmResolution640×512 (0.33 MP)

Compact MWIR OEM – Most Cost-Effective MWIR OEM Option

Spectral range: 1.5–5.7 µm. Active area: 9.6 × 7.68 mm. Resolution: 640×512 (0.33 MP). Frame rate: 100 Hz full frame, 326 Hz half frame and up to 863 Hz quarter/random subwindow. 14-bit cooled InSb detector.

Compact rugged OEM system, 200 × 100 × 100 mm and 2.8 kg
Live 2D/3D profiling, Test, Pass/Fail, reports and AI analytics built in
IZAK application, SDK v4 and 36 months of software updates included

Most Cost-Effective OEMSKU 33012GigE3 m Ethernet cable, power adapter, trigger I/O and Peli case included.Request a quote

Included in every configuration

Beam analysis
Live 2D/3D profile, centroid, widths, ellipticity and orientation.

Production tools
Test sequences, Pass/Fail decisions and configurable reports.

Built-in AI analytics
Database analysis, trend detection and production/R&D insight.

Flexible delivery
Complete system, OEM module or integration with customer hardware.

Fractional and multiple-spot analysis, custom attenuation or optics, and API integration are available according to the application.
