Description
Laser Beam Profiler Family · OEM line

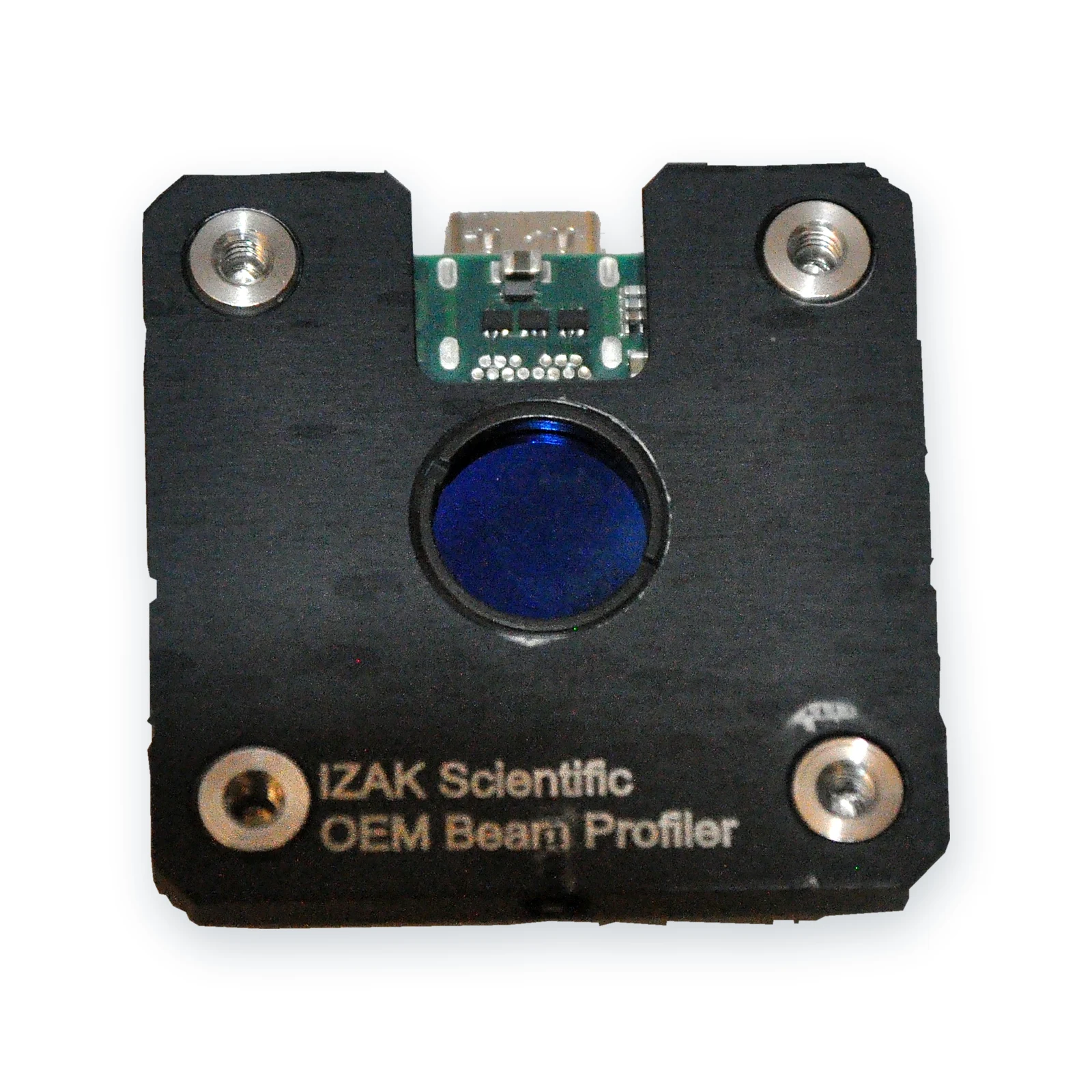

OEM Board-Level Laser Beam Profilers
Board-level beam-profiler engines for integration inside your instrument, production tester or machine. Each module pairs a board-level USB 3 industrial camera with the full IZAK Laser Beam Profiler software and API, so you get the same measurements as our packaged systems in a footprint as small as 29 × 29 × 6.4 mm.
OEM or packaged
Choose the integration level
The OEM line uses the same IZAK measurement software as our packaged systems. The difference is the hardware form and who mounts it.
| OEM board-level (this page) | Packaged system (31xxx–34xxx) | |
|---|---|---|
| Form | Camera board without housing, mounted by you | Housed head with mount, ready on the bench |
| Best for | Volume integration in instruments and testers | Lab, R&D and single test stations |
| Spectral range | Visible–NIR, up to 1100 nm | UV to LWIR, 250 nm to 12 µm |
| Software | IZAK LBP software and API | IZAK LBP software and API |
| Attenuation and optics | Options per application | Included per configuration |
Looking for a housed system? See the Laser Beam Profiler families.
Models
Compare OEM board-level models
Global-shutter models measure both pulsed and CW lasers. Rolling-shutter models are the lowest-cost option for CW lasers only. Open each model for its full specification, then request a quote for one or several.
The recommended beam range uses about 10 pixels across the beam as the minimum and 2/3 of the short sensor side as the maximum. Larger beams: ask about reducing optics.
SKU 35001
OEM LBP 1.6 MP Global
Global shutter · pulsed + CW- Resolution
- 1.6 MP
- Active area
- 5.00 × 3.75 mm
- Max rate
- 235 fps
- Launch pricePrice
- $2,090
Open details
SKU 35001
OEM LBP 1.6 MP Global
Global shutter · pulsed + CWFast global-shutter engine for pulsed and CW lasers, up to 235 fps at full frame. Best when speed matters more than resolution.
- Global shutter: measures pulsed and CW lasers
- Live 2D/3D profiling and complete beam parameters
- Test, Pass/Fail, logging and reporting built in
- API for production integration; attenuation and optics options per application
Best for: High-speed pulsed or CW measurement where frame rate matters more than resolution.
OEM board-level module. Final optics and attenuation are confirmed by IZAK engineering for your laser.
$2,090 launch price per moduleper module
Regular $2,790 · 5+ units $1,990 · 10+ units $1,880 · 25+ units: quote
USD, excl. VAT and shipping. Includes IZAK LBP software license and 3 m USB 3 cable. Launch price valid until 31 March 2027.
Ships in 5–6 weeks after payment12-month warrantyBank transferFlat $80 shipping worldwide
| Camera | Board-level USB 3 camera, S-mount lens holder |
|---|---|
| Sensor | Monochrome, global shutter |
| Spectral range | 300–1100 nm (sensor response) |
| Resolution / pixel | 1456 × 1088 px / 3.45 µm |
| Active area | 5.00 × 3.75 mm (1/2.9″) |
| Recommended beam | 0.035–2.5 mm |
| Frame rate / ADC | 235 fps / 12 bit |
| Exposure | 0.022 ms to 2 s |
| Interface / mount | USB 3 Type-C / S-mount (M12 × 0.5) |
| Size / weight / power | 36 × 36 × 26 mm / 16 g / 0.8–1.8 W |
| Operating temperature | 0 to +55 °C |
SKU 35002
OEM LBP 5.1 MP Global
Global shutter · pulsed + CW- Resolution
- 5.1 MP
- Active area
- 6.77 × 5.65 mm
- Max rate
- 49 fps
- Launch pricePrice
- $2,090
Open details
SKU 35002
OEM LBP 5.1 MP Global
Global shutter · pulsed + CWHigh-resolution global-shutter engine for small beams and pulsed lasers, in a 32.5 mm square footprint.
- Global shutter: measures pulsed and CW lasers
- Live 2D/3D profiling and complete beam parameters
- Test, Pass/Fail, logging and reporting built in
- API for production integration; attenuation and optics options per application
Best for: Small beams and pulsed lasers that need fine sampling in a compact footprint.
OEM board-level module. Final optics and attenuation are confirmed by IZAK engineering for your laser.
$2,090 launch price per moduleper module
Regular $2,790 · 5+ units $1,990 · 10+ units $1,880 · 25+ units: quote
USD, excl. VAT and shipping. Includes IZAK LBP software license and 3 m USB 3 cable. Launch price valid until 31 March 2027.
Ships in 5–6 weeks after payment12-month warrantyBank transferFlat $80 shipping worldwide
| Camera | Board-level USB 3 camera, S-mount lens holder |
|---|---|
| Sensor | Monochrome, global shutter |
| Spectral range | Visible–NIR (sensor response) |
| Resolution / pixel | 2472 × 2062 px / 2.74 µm |
| Active area | 6.77 × 5.65 mm (1/1.8″) |
| Recommended beam | 0.03–3.7 mm |
| Frame rate / ADC | 49 fps / 12 bit |
| Exposure | 0.009 ms to 2 s |
| Interface / mount | USB 3 micro-B / S-mount (M12 × 0.5) |
| Size / weight / power | 32.5 × 32.5 × 14 mm / 10 g / 0.5–1.2 W |
| Operating temperature | 0 to +75 °C |
SKU 35003
OEM LBP 2.3 MP Global
Global shutter · pulsed + CW- Resolution
- 2.3 MP
- Active area
- 5.76 × 3.60 mm
- Depth
- 6.4 mm
- Launch pricePrice
- $1,790
Open details
SKU 35003
OEM LBP 2.3 MP Global
Global shutter · pulsed + CWUltra-thin global-shutter engine (6.4 mm deep, 7 g) for tight spaces, 101 fps at full frame.
- Global shutter: measures pulsed and CW lasers
- Live 2D/3D profiling and complete beam parameters
- Test, Pass/Fail, logging and reporting built in
- API for production integration; attenuation and optics options per application
Best for: Integration in tight spaces where depth and weight are the limit.
OEM board-level module. Final optics and attenuation are confirmed by IZAK engineering for your laser.
$1,790 launch price per moduleper module
Regular $2,290 · 5+ units $1,700 · 10+ units $1,610 · 25+ units: quote
USD, excl. VAT and shipping. Includes IZAK LBP software license and 3 m USB 3 cable. Launch price valid until 31 March 2027.
Ships in 5–6 weeks after payment12-month warrantyBank transferFlat $80 shipping worldwide
| Camera | Board-level USB 3 camera, ultra-thin, no lens mount |
|---|---|
| Sensor | Monochrome, global shutter |
| Spectral range | Visible–NIR (sensor response) |
| Resolution / pixel | 1920 × 1200 px / 3.0 µm |
| Active area | 5.76 × 3.60 mm (1/2.6″) |
| Recommended beam | 0.03–2.4 mm |
| Frame rate / ADC | 101 fps / 10 bit |
| Exposure | 0.012 to 446 ms |
| Interface | USB 3 micro-B |
| Size / weight / power | 29 × 29 × 6.4 mm / 7 g / 0.5–1 W |
| Operating temperature | 0 to +85 °C |
SKU 35004
OEM LBP 12.4 MP Global
Global shutter · pulsed + CW- Resolution
- 12.4 MP
- Active area
- 11.31 × 8.24 mm
- Max rate
- 32 fps
- Launch pricePrice
- $4,390
Open details
SKU 35004
OEM LBP 12.4 MP Global
Global shutter · pulsed + CWLarge-format global-shutter engine: 11.3 × 8.2 mm active area for larger beams without extra optics. Opto-isolated trigger input for synchronisation with pulsed sources.
- Global shutter: measures pulsed and CW lasers
- Live 2D/3D profiling and complete beam parameters
- Test, Pass/Fail, logging and reporting built in
- API for production integration; attenuation and optics options per application
Best for: Larger beams without reducing optics, and pulsed sources that need hardware trigger sync.
OEM board-level module. Final optics and attenuation are confirmed by IZAK engineering for your laser.
$4,390 launch price per moduleper module
Regular $4,890 · 5+ units $4,170 · 10+ units $3,950 · 25+ units: quote
USD, excl. VAT and shipping. Includes IZAK LBP software license and 3 m USB 3 cable. Launch price valid until 31 March 2027.
Ships in 5–6 weeks after payment12-month warrantyBank transferFlat $80 shipping worldwide
| Camera | Board-level USB 3 camera, no lens mount |
|---|---|
| Sensor | Monochrome, global shutter |
| Spectral range | 400–1000 nm (sensor response) |
| Resolution / pixel | 4128 × 3008 px / 2.74 µm |
| Active area | 11.31 × 8.24 mm (1/1.1″) |
| Recommended beam | 0.03–5.5 mm |
| Frame rate / ADC | 32 fps / 12 bit |
| Exposure | 0.012 ms to 2 s (long exposure up to 120 s) |
| Interface / I/O | USB 3 Type-C / opto-isolated trigger and flash |
| Size / weight / power | 40 × 29.5 × 25 mm / 20 g / 1.7–3.8 W |
| Operating temperature | 0 to +55 °C |
SKU 35005
OEM LBP 5 MP CW
Rolling shutter · CW only- Resolution
- 5 MP
- Active area
- 5.70 × 4.28 mm
- Max rate
- 49 fps
- Launch pricePrice
- $1,790
Open details
SKU 35005
OEM LBP 5 MP CW
Rolling shutter · CW onlyLowest-cost engine for CW lasers. Rolling shutter: not for pulsed lasers.
- Rolling shutter: CW lasers only, not for pulsed sources
- Live 2D/3D profiling and complete beam parameters
- Test, Pass/Fail, logging and reporting built in
- API for production integration; attenuation and optics options per application
Best for: Cost-sensitive CW-only integration.
OEM board-level module. Final optics and attenuation are confirmed by IZAK engineering for your laser.
$1,790 launch price per moduleper module
Regular $2,290 · 5+ units $1,700 · 10+ units $1,610 · 25+ units: quote
USD, excl. VAT and shipping. Includes IZAK LBP software license and 3 m USB 3 cable. Launch price valid until 31 March 2027.
Ships in 5–6 weeks after payment12-month warrantyBank transferFlat $80 shipping worldwide
| Camera | Board-level USB 3 camera, S-mount lens holder |
|---|---|
| Sensor | Monochrome, rolling shutter |
| Spectral range | 300–1100 nm (sensor response) |
| Resolution / pixel | 2592 × 1944 px / 2.2 µm |
| Active area | 5.70 × 4.28 mm (1/2.5″) |
| Recommended beam | 0.022–2.85 mm |
| Frame rate / ADC | 49 fps / 12 bit |
| Exposure | 0.016 to 658 ms |
| Interface / mount | USB 3 micro-B / S-mount (M12 × 0.5) |
| Size / weight / power | 32.5 × 32.5 × 14 mm / 13 g / 0.6–1.2 W |
| Operating temperature | 0 to +85 °C |
SKU 35006
OEM LBP 5 MP CW, bare board
Rolling shutter · CW only- Resolution
- 5 MP
- Active area
- 5.70 × 4.28 mm
- Weight
- 7 g
- Launch pricePrice
- $1,790
Open details
SKU 35006
OEM LBP 5 MP CW, bare board
Rolling shutter · CW onlyThe bare-board version of an engine IZAK has already delivered in a customer system. For CW lasers only (rolling shutter).
- Rolling shutter: CW lasers only, not for pulsed sources
- Live 2D/3D profiling and complete beam parameters
- Test, Pass/Fail, logging and reporting built in
- API for production integration; attenuation and optics options per application
Best for: CW integration with a field-proven engine, as a bare board.
OEM board-level module. Final optics and attenuation are confirmed by IZAK engineering for your laser.
$1,790 launch price per moduleper module
Regular $2,290 · 5+ units $1,700 · 10+ units $1,610 · 25+ units: quote
USD, excl. VAT and shipping. Includes IZAK LBP software license and 3 m USB 3 cable. Launch price valid until 31 March 2027.
Ships in 5–6 weeks after payment12-month warrantyBank transferFlat $80 shipping worldwide
| Camera | Bare-board USB 3 camera, no lens mount |
|---|---|
| Sensor | Monochrome, rolling shutter |
| Spectral range | 300–1100 nm (sensor response) |
| Resolution / pixel | 2592 × 1944 px / 2.2 µm |
| Active area | 5.70 × 4.28 mm (1/2.5″) |
| Recommended beam | 0.022–2.85 mm |
| Frame rate / ADC | 49 fps / 12 bit |
| Exposure | 0.016 to 658 ms |
| Interface | USB 3 Type-C |
| Size / weight / power | 36 × 36 × 8.0 mm / 7 g / 0.6–1.2 W |
| Operating temperature | 0 to +85 °C |
View all six models side by side
| Model | Shutter | Resolution / pixel | Recommended beam | Max rate | Board size |
|---|---|---|---|---|---|
| OEM LBP 1.6 MP Global SKU 35001 | Global shutter · pulsed + CW | 1456 × 1088 px / 3.45 µm | 0.035–2.5 mm | 235 fps | 36 × 36 × 26 mm |
| OEM LBP 5.1 MP Global SKU 35002 | Global shutter · pulsed + CW | 2472 × 2062 px / 2.74 µm | 0.03–3.7 mm | 49 fps | 32.5 × 32.5 × 14 mm |
| OEM LBP 2.3 MP Global SKU 35003 | Global shutter · pulsed + CW | 1920 × 1200 px / 3.0 µm | 0.03–2.4 mm | 101 fps | 29 × 29 × 6.4 mm |
| OEM LBP 12.4 MP Global SKU 35004 | Global shutter · pulsed + CW | 4128 × 3008 px / 2.74 µm | 0.03–5.5 mm | 32 fps | 40 × 29.5 × 25 mm |
| OEM LBP 5 MP CW SKU 35005 | Rolling shutter · CW only | 2592 × 1944 px / 2.2 µm | 0.022–2.85 mm | 49 fps | 32.5 × 32.5 × 14 mm |
| OEM LBP 5 MP CW, bare board SKU 35006 | Rolling shutter · CW only | 2592 × 1944 px / 2.2 µm | 0.022–2.85 mm | 49 fps | 36 × 36 × 8.0 mm |
Included features
The full profiler, on a board
Every OEM model runs the complete IZAK Laser Beam Profiler software.
- Live 2D/3D beam parameters
- Pass/Fail test mode, logging and database
- API for production integration
- USB 3 powered, no external supply
Not sure which model fits? Book a 20-min call with an engineer.
Request an OEM quote
Tell us about your integration
Include the OEM model (SKU), laser wavelength, expected beam diameter, power or energy, pulse regime, expected annual quantity and how the board will be mounted.
Not sure which model fits? Book a 20-min call with an engineer
