Optical sensors play a critical role in radiometry and scientific instrumentation, converting incident radiant energy into measurable electrical signals. They span a wide range of operating principles – from quantum (photon-counting) detectors like semiconductor photodiodes and photomultipliers to thermal detectors like bolometers and pyroelectrics. This article provides an in-depth technical review of the full range of optical sensors, including traditional devices and emerging technologies. We discuss semiconductor photodiodes (Si, InGaAs, HgCdTe, etc.), photoconductive and photoemissive photon detectors (including photoconductors and photomultiplier tubes), thermal detectors (bolometers, pyroelectric sensors, thermopiles), and newer sensor concepts (e.g. nanowire-based sensors and single-electron/photon detectors). For each type, we outline the operating principle, spectral sensitivity, key performance metrics (detectivity D★, noise-equivalent power (NEP), responsivity, response time), physical characteristics (size, cooling, materials), and example applications. A comparative summary table is also included to contrast key specifications across sensor types.

Semiconductor Photodiodes (Photovoltaic Detectors)

Operating Principle: Semiconductor photodiodes are photovoltaic detectors that generate a photocurrent when photons are absorbed in a semiconductor p-n or p-i-n junction. Under reverse bias (photoconductive mode) or zero bias (photovoltaic mode), each absorbed photon creates electron-hole pairs, producing a current proportional to light intensity [4]. Photodiodes are highly linear and exhibit fast response and high quantum efficiency across broad spectral bands[4].

Spectral Sensitivity: The spectral response of photodiodes is governed by the semiconductor bandgap. Silicon (Si) photodiodes cover ~190 nm to 1100 nm (UV–visible–NIR), peaking near 800–900 nm with responsivities ~0.5–0.6 A/W. Germanium (Ge) and InGaAs photodiodes extend into the NIR: Ge covers ~800–1800 nm but with higher dark current, while InGaAs (Indium Gallium Arsenide) covers ~900–1700 nm (standard) and can be extended to ~2500 nm with modified alloys[4]. InGaAs photodiodes offer superior sensitivity in the 1–1.7 µm telecom band with lower dark noise than Ge. Extended InGaAs and InAsSb detectors can reach 2–5 µm (MWIR) but at the cost of much higher dark current, often requiring thermoelectric cooling [4]. Mercury Cadmium Telluride (HgCdTe or MCT) can be engineered for a wide IR range (1–25 µm) by tuning its bandgap via composition[3]. MCT photodiodes (often cooled to 77 K) cover mid-IR to long-wave IR; they can be optimized for specific wavelengths (e.g. 5 µm, 10.6 µm CO₂ laser line) by adjusting the Hg/Cd ratio[3].

Key Performance Metrics: Photodiodes typically achieve very high detectivity. Silicon photodiodes, for example, exhibit D★ on the order of 10^12–10^14 Jones (cm·Hz^½/W) in the visible range[1], thanks to low noise and high responsivity. Advanced Si devices with internal gain have even demonstrated D★ ~10^14 Jones at 940 nm[5]. InGaAs photodiodes also reach D★ ~10^12–10^13 Jones in the NIR, significantly outperforming legacy Ge detectors (Ge D★ ~10^11 or lower, due to higher dark current)[4]. MCT photodiodes (cooled) achieve D★ in the 10^10–10^11 range at mid-IR wavelengths[2] – roughly 10–50× higher sensitivity than room-temperature pyroelectric sensors[2]. Noise-equivalent power (NEP) for small-area Si or InGaAs photodiodes can be as low as 10^−15 to 10^−14 W/√Hz. Photodiode responsivity varies with wavelength (e.g. Si ~0.2 A/W at 400 nm rising to ~0.6 A/W at 900 nm), and quantum efficiency can exceed 80–90% near peak wavelengths. Response times are fast, on the order of nanoseconds to microseconds, limited by junction capacitance and transit time. For example, Si PIN photodiodes can have <1 ns rise times, supporting GHz bandwidth, while large-area InGaAs detectors (with higher capacitance) have slower response in the tens of MHz range. Avalanche photodiodes (APDs) introduce internal gain by operating the diode near breakdown. Si APDs (for 400–1000 nm) and InGaAs APDs (1000–1700 nm) can detect low light with gain M10–100, but at the cost of added noise (excess noise factor ~2–5). Still, APDs improve the SNR in photon-starved applications and achieve timing jitter in the tens of picoseconds, useful for LIDAR and time-correlated single photon counting. Modern Si APDs or single-photon avalanche diodes (SPADs, operated in Geiger mode) can resolve single photons with photon detection efficiencies ~50% at 500 nm, though requiring careful quenching circuits and having dark count rates on the order of a few Hz to kHz depending on cooling.

Physical/Electrical Characteristics: Photodiodes are compact solid-state devices (millimeter-scale or smaller active areas). They typically operate at room temperature (except narrow-bandgap types like extended InGaAs or MCT, which often use thermoelectric or cryogenic cooling to suppress dark current). Cooling a photodiode reduces thermal noise and can dramatically increase D★ for IR diodes[2]. Photodiodes are typically packaged in hermetic enclosures with optical windows (e.g. quartz for UV/vis, silicon for NIR, or ZnSe for mid-IR). Some IR photodiodes use immersion microlenses to boost effective area and detectivity by concentrating light[4]. Reverse bias is applied in photoconductive mode to improve speed at the cost of higher dark current[4].

Example Applications: Owing to their accuracy and speed, semiconductor photodiodes are widely used in radiometric instruments and photometry. Silicon photodiodes serve as standard detectors for laser power meters, photometric sensors, and solar irradiance monitors (with NIST-traceable calibration). They are used in trap detectors for optical power standardization due to very predictable responsivity. InGaAs photodiodes are critical in fiber-optic communication receivers (1.3 and 1.55 µm) and in near-IR spectroscopy (e.g. optical coherence tomography, LIDAR). MCT photodiodes find use in thermal imaging, gas analysis (IR spectrometers/FTIR), and remote sensing; for example, cooled MCT detectors in Fourier-transform infrared (FTIR) spectrometers vastly outperform thermal DTGS pyroelectric detectors, offering ~100× higher sensitivity and MHz-frequency response for fast spectral scans[3]. Avalanche photodiodes and SPADs are used for single-photon counting in fluorescence lifetime measurements, quantum communication, and photon correlation studies, as well as in hazard detection (e.g. LIDAR laser ranging and atmospheric aerosol LiDAR).

Photon Detectors: Photoconductive and Photoemissive Sensors

Photon detectors in this category directly convert incident photons to an electrical signal via either a change in conductivity (photoconductive effect) or via photoelectric emission of electrons. Unlike photovoltaic diodes, these often require an external bias or vacuum tube for operation. They generally offer higher sensitivity (especially when cooled) but may require high bias voltages or cooling and can have slower response or more complex readout.

Photoconductive Detectors (Bulk Photoconductors): A photoconductor is typically a semiconductor material where incident photons excite carriers, increasing its electrical conductivity. A bias voltage applied across the material then produces a photogenerated current. Classic examples are the lead salt detectors: PbS (lead sulfide) and PbSe (lead selenide) photoconductors, historically used for mid-infrared (1–5 µm) detection. PbS/PbSe sensors are often operated at or slightly below room temperature (sometimes with Peltier cooling to ~–30 °C to reduce noise). Their spectral ranges cover roughly 1–3 µm for PbS and 1–5 µm for PbSe, with peak sensitivity around 2–3 µm. These detectors have modest detectivities – e.g. PbSe can achieve D on the order of 10^9 Jones at room temperature[2], which is an order of magnitude higher sensitivity than thermal pyroelectrics (~10^8) but far lower than cooled semiconductor photodiodes[2]. They also have slower response ( bandwidths ~ tens to hundreds of kHz ), limited by carrier trapping and recombination dynamics. Modern variants of photoconductors include extrinsic silicon detectors (doped Si detecting IR via impurity levels, requiring cryogenic cooling) and HgCdTe photoconductors. HgCdTe (MCT) photoconductive detectors operate by biasing a HgCdTe element; they were widely used in thermal IR cameras and spectrometers before HgCdTe photodiodes became common. MCT photoconductors offer very high responsiveness and could surpass pyroelectrics by factors of 10–100 in D* when cooled[12], but they exhibit 1/f noise and require precise temperature control. Another important class are quantum well infrared photodetectors (QWIPs), which are essentially photoconductive quantum devices: they use intersubband transitions in multiple quantum well structures (e.g. GaAs/AlGaAs) to absorb IR (typically 8–12 µm LWIR) and free carriers into a conduction band under bias. QWIPs require cryogenic cooling (~70 K) and have lower peak D* (~10^9–10^10) compared to HgCdTe, but offer excellent uniformity and large-format FPAs for thermal imaging[9]. Emerging photoconductors also include quantum dot infrared photodetectors (QDIPs) and perovskite or 2D material photoconductors, where nanostructures provide broadband absorption and potentially higher operating temperatures[9].



Performance: Photoconductors generally need bias and often exhibit higher noise (due to dark current and Johnson noise in the bias circuit) than photovoltaic diodes. Their NEP is improved by cooling to reduce thermal excitations. For instance, an InSb photoconductor (cutoff ~5.5 µm, cooled to 77 K) can reach D* ~2×10^11 Jones[2], whereas at 300 K it would be orders of magnitude lower. Response times range from microseconds (in thin-film or small devices) to milliseconds for large-area or slow-responding materials. Many photoconductors also require chopped or modulated measurements (with lock-in amplifiers) to mitigate 1/f noise and drift.

High-precision integrating sphere setup featuring a photodiode on top, enabling detailed measurements of LED power, spectrum, and temporal pulse shape for optimal performance analysis
Amplified photodiode with adjustable gain, integrated atop an integrating sphere for LED and laser diode testing—part of a complete characterization system by IZAK Scientific

Photoemissive Detectors (Phototubes and PMTs): Photoemissive sensors operate via the external photoelectric effect: incident photons strike a photosensitive cathode material in vacuum, causing emission of electrons. These emitted photoelectrons are then collected or amplified. The simplest device is a vacuum photodiode (phototube), with a photocathode and an anode; more important are photomultiplier tubes (PMTs), which add a cascade of dynodes for electron multiplication. In a PMT, a single photon can liberate one electron from the cathode, which is then accelerated to a dynode, knocking out several secondary electrons, and so on through ~10 stages – yielding an enormous gain (~10^6 electrons per photon). This internal gain and low noise current make PMTs ultra-sensitive. They achieve effective NEP levels on the order of 10^−16 to 10^−18 W/√Hz, enabling single-photon detection in the UV–visible range[7]. Spectral range: Photocathodes are selected for the band of interest – common PMT photocathodes (bialkali, multialkali compounds like Sb–K–Cs) cover ~185 nm (deep UV) to ~900 nm. Specialty cathodes (e.g. GaAs or InGaAs) extend sensitivity into the near-IR (1.0–1.7 µm) at the cost of higher dark current. PMTs typically have peak quantum efficiencies around 20–30% (higher for newer GaAsP photocathodes in the blue).

Performance: Detectivity: Since PMTs are usually limited by shot noise of dark current or ambient background, their performance is often stated in terms of dark count rate and gain rather than D, but effectively their D* can be >10^14 Jones in photon-counting scenarios, far exceeding semiconductor diodes in the visible. They have fast rise times (sub-nanosecond pulses are achievable in fast PMTs), though large-area or longer path PMTs have transit time spreads of a few ns. PMTs require a high-voltage supply (typically 500–1500 V) for the dynodes. They are bulky (glass vacuum tubes) and can be fragile, and they can be damaged by exposure to intense light. Nevertheless, for extremely low light flux measurements, PMTs remain a gold standard due to their combination of gain and low noise[7].



Example Applications: Photoconductive detectors like PbS/PbSe were used in early IR spectrophotometers and are still found in some inexpensive gas sensors or handheld IR analyzers. MCT photoconductors and QWIPs have been used in thermal imaging cameras and astronomy (IR focal plane arrays). Photoemissive PMTs, on the other hand, are pervasive in scientific instrumentation: e.g. scintillation counters for radiation detection (where a scintillator converts high-energy radiation to visible photons detected by a PMT), fluorescence spectrometers, single-photon counting experiments, LIDAR receivers (e.g. atmospheric LIDARs for aerosols), and astronomy photon-counting detectors. A notable example is the use of PMTs in Cherenkov telescopes and neutrino observatories to capture faint light flashes. Microchannel plate (MCP) PMTs and image intensifiers are specialized photoemissive devices providing sub-nanosecond response and two-dimensional imaging (as in night-vision goggles or streak cameras). In recent years, solid-state analogs of PMTs such as the silicon photomultiplier (SiPM) – essentially an array of Geiger-mode APD microcells – have gained popularity. SiPMs operate at low bias (~30 V), are compact and insensitive to magnetic fields, and achieve single-photon sensitivity with gain ~10^6, making them viable replacements for PMTs in applications like medical PET scanners and portable radiation detectors. However, SiPMs have higher dark counts and smaller area than large PMTs, and they are currently used mainly for visible light detection.

Thermal Detectors (Bolometers, Pyroelectric Sensors, Thermopiles)

Thermal detectors rely on absorption of radiation as heat and a subsequent change in some temperature-dependent property (resistance, polarization, etc.). Unlike photon detectors, thermal sensors have a flat spectral response over a very broad range (from UV to far-IR and even terahertz), since any photon absorbed will heat the sensor. They are useful for broadband radiometry and where the wavelength range is too long for convenient semiconductor detectors (far IR, THz), but they generally have slower response and lower sensitivity (especially at fast time scales) compared to cooled photon detectors[3].

Bolometers: A bolometer consists of an absorber (which converts incident radiation to heat) thermally linked to a reservoir (heat sink). As the absorber heats up, its temperature rises relative to the heat sink. The temperature change is read out via a temperature-sensitive element. In a resistive bolometer, the element is often a thermistor material whose resistance drops or rises with temperature. Early bolometers used blackened metal strips (e.g. platinum) with resistance changing per incident power; modern microbolometers use MEMS-fabricated bridges of materials like vanadium oxide (VOx) or amorphous silicon, which have high temperature coefficient of resistance (TCR). Operating principle: The bolometer is biased in a readout circuit, and light-induced resistance change is measured. Bolometers do not require cooling (though cooling greatly improves sensitivity by reducing thermal noise). Spectral range: effectively 0.1–1000 µm (limited only by absorber coating and window transmission). Performance: Uncooled microbolometer pixels (operated at ~300 K) in thermal cameras typically achieve NETD (noise-equivalent temperature difference) ~50 mK, corresponding to NEP on the order of 10^−10 to 10^−9 W/√Hz per pixel and specific detectivity D ~10^8–10^9 Jones in the 8–14 µm band. This is lower than cooled photon detectors (MCT or InSb) by orders of magnitude[3], but microbolometers’ advantage is room-temperature operation and low cost in large arrays. Their response time is on the order of milliseconds (thermal time constant ~10–20 ms for typical 17 µm pixel bolometers[3]), sufficient for video frame rates (~30 Hz) but not for high-speed modulation. To improve sensitivity for scientific use, bolometers are often cooled. Cooled bolometers: For example, at liquid helium temperatures (4 K or even 0.1 K in advanced systems), bolometers can be extraordinarily sensitive, limited only by thermal fluctuation noise or even photon noise from the background. Cooled bolometers (using semiconductor thermistors or superconducting sensors) are used in far-infrared astronomy – e.g. the SPIRE instrument on the Herschel space telescope used an array of transition-edge sensor bolometers at 0.3 K to detect sub-millimeter radiation with NEPs ~10^−17 W/√Hz. Cooled bolometers can have D well above 10^12 in the far-IR where photon detectors are impractical[13]. However, cooled bolometer systems require complex cryogenics and slow readouts.



Pyroelectric Detectors: Pyroelectric sensors use crystalline materials that have a temperature-dependent spontaneous polarization (e.g. deuterated triglycine sulfate – DLaTGS, or lithium tantalate). When the temperature of the crystal changes, the change in polarization generates a displacement current that can be measured as a signal (usually via a JFET or op-amp). Pyroelectrics respond only to changes in incident radiation (they are AC-coupled detectors), so they typically require the incident radiation to be modulated (chopped) or the target to be moving. Spectral response: broadband (UV to far-IR) since a black coating on the crystal absorbs the radiation. Performance: Pyroelectric detectors operate at room temperature. DLaTGS (a deuterated TGS variant) is a common material in FTIR spectrometers. A typical DLaTGS pyroelectric might have D* ≈ 2×10^8 Jones at 10 µm with a 1 Hz chopping frequency[2]. This is substantially less sensitive than a cooled MCT photodiode (by a factor of ~200 in the example from Thermo Nicolet)[2], but pyros are still useful when simplicity and broad spectral coverage are needed. Pyroelectrics have moderate response times, often in the sub-millisecond range for thin elements (they can be faster than thermopiles or bolometers because the thermal mass is small). For example, pyroelectric video sensors exist (the classic “IR motion sensor” in alarms uses a pyroelectric that can respond in <0.1 s to movement). In FTIR, pyroelectric detectors can handle modulation frequencies up to a few kHz. To improve stability, modern pyroelectric detectors often include temperature stabilization or are operated in a temperature-controlled enclosure, since the output can drift with ambient temperature changes.

Cooled multi-channel spectro-radiometer by IZAK Scientific, featuring high-speed IR or VIS spectrometers with linear detector arrays—ideal for precise radiometric characterization and inspections. The system includes narrow FOV optics (tens of mrad), flat 5 MHz bandwidth (–3 dB),

Cooled multi-channel spectro-radiometer by IZAK Scientific, featuring high-speed IR or VIS spectrometers with linear detector arrays—ideal for precise radiometric characterization. The system includes narrow FOV optics (tens of mrad), flat 5 MHz bandwidth (–3 dB), <10% non-uniformity, replaceable ND filters, and full software integration. Learn more: izakscientific.com/product/multi-channel-spectro-radiometer.

Thermopile Detectors: A thermopile is essentially a series of thermocouple junctions connected in series to amplify the voltage output. One set of junctions (the “hot” junctions) is on an absorbing thermal element, and the other set (the “cold” junctions) is on a reference at a lower temperature. When radiation is absorbed, the temperature difference generates a voltage via the Seebeck effect. Spectral range: very broad (a blackened thermopile can absorb from UV to far-IR). Performance: Thermopiles produce a DC output proportional to absolute incident power (unlike pyroelectrics, which need chopping). They are very stable and linear, but generally less sensitive and slower. D* for thermopiles is usually in the 10^7–10^8 range. For instance, a small thermopile (area ~2 mm^2) might have NEP ~10^−9 W/√Hz (D* ~10^8) and a response time of tens of milliseconds. The output voltages are on the order of a few tens of microvolts per µW, so low-noise amplifiers are required. Thermopiles are widely used in portable radiometers and heat flux sensors (e.g. pyranometers for measuring solar irradiance, where a thermopile measures broadband solar power). They are also common in non-contact IR thermometers and low-cost thermal arrays (like the MLX90640 32×24 thermopile array used for thermographic imaging without microbolometers).

Comparative Note: Among thermal detectors at room temperature, pyroelectric sensors often offer better sensitivity and faster response than thermopiles or bolometers[14]. In fact, LiTaO₃ pyroelectric arrays can achieve performance intermediate between cooled photon detectors and uncooled bolometers[14]. Bolometers (uncooled) typically have to trade off speed for sensitivity – e.g. increasing thermal isolation improves D* but slows the response. Pyroelectrics, being AC-coupled, are ideal in scenarios with modulated signals, whereas thermopiles are preferred for true DC measurements (e.g. measuring a steady thermal radiation level). All thermal detectors benefit from techniques like chopping or signal averaging to reach their noise floor.

Example Applications: Thermal detectors are indispensable for broadband and long-wavelength radiometry. Bolometers: Uncooled microbolometer arrays are the basis of most thermal infrared cameras for night vision, surveillance, and thermal diagnostics (wavelengths 7–14 µm). Large-format bolometer arrays (e.g. 640×480 pixels at 17 µm pitch) can produce high-resolution thermal images at video rates. In scientific use, sensitive cooled bolometers (often superconducting TES bolometers) are deployed in telescopes to detect cosmic microwave background or sub-mm cosmic signals. Pyroelectric detectors: Used in FTIR spectrometers (where the interferometer’s output is modulated by a chopper, a pyroelectric can measure the interferogram over a wide IR spectrum). They are also used in gas analyzers (NDIR sensors) and intruder motion sensors (the familiar PIR sensor that detects a person by the change in IR heat signature across multiple pyroelectric elements). Thermopiles: Common in handheld radiation thermometers (point-and-shoot IR thermometers measure thermal emission from objects), in laser power meters (for measuring high laser powers over broad wavelengths – a thermopile disk can absorb the beam and measure its heating), and in climate research instruments (e.g. pyrheliometers for direct solar beam measurement). Thermopile sensor modules (with integrated optics and amplifiers) are also used for CO₂ sensing by NDIR (detecting IR absorption dips), where the absolute stability of a thermopile is advantageous.

Emerging and Advanced Optical Sensors

The push for greater sensitivity, bandwidth, and new wavelength capabilities has led to novel sensor technologies. Some leverage nanostructured materials or quantum effects to detect extremely small optical signals – down to single photons or even single electrons – with high efficiency. Below we highlight a few emerging sensor types and concepts:

Superconducting Nanowire Single-Photon Detectors (SNSPDs): SNSPDs consist of a thin superconducting nanowire (often Niobium nitride or similar, only ~5–10 nm thick and ~100 nm wide) patterned into a meandering filament. The nanowire is biased with a current just below its superconducting critical current. When a single photon is absorbed, it locally breaks the superconductivity (creating a “hotspot”), forcing the current to divert and creating a momentary resistive voltage pulse. The wire then cools and returns to superconducting state, ready for the next photon. Performance: SNSPDs typically operate at cryogenic temperatures (2–4 K, often using liquid helium or closed-cycle cryocoolers). They achieve detection efficiencies of 70– Ninety% at specific wavelengths (e.g. telecom 1550 nm) with virtually zero dark counts when well shielded. Their timing jitter can be as low as ~20 ps, making them the fastest single-photon sensors available. NEP values for SNSPDs can reach the 10^−20 W/√Hz scale (implied by single-photon sensitivity and low dark count) – orders of magnitude better than any room-temp detector. They have broad sensitivity from visible to mid-IR (material dependent; NbN SNSPDs cover ~500–2000 nm, while other materials like WSi extend to ~10 µm in research). Applications: Because of their unparalleled photon-counting performance, SNSPDs are used in quantum optics (entangled photon detection, quantum key distribution receivers), single-photon LiDAR, fluorescence lifetime measurements at extremely low concentrations, and emerging astronomical instruments (e.g. for single-photon counting of faint time-variable stars or optical SETI). The downside is the need for cryogenic cooling and specialized readout (fast pulse counting electronics).

Transition-Edge Sensors (TES) and Microwave Kinetic Inductance Detectors (MKIDs): These are superconducting detectors designed to count or resolve single photons with energy measurement. A TES is a superconducting thin-film biased at the edge of its superconducting transition (e.g. ~0.1 K for a titanium film). When a photon is absorbed (often by a coupled absorber), the temperature rises slightly, causing a sharp increase in resistance. This resistance change is read out (typically with SQUID amplifiers), providing not only a photon count but an energy (wavelength) resolution, since larger photon energy yields a bigger temperature spike. TES detectors can thus act as calorimetric photon sensors, distinguishing photon energies (used in X-ray astronomy and also in quantum information for number-resolving detectors). They have near-unity quantum efficiency and extremely low noise, but are slow (pulse recovery times in the tens to hundreds of microseconds) and require ultra-deep cryogenic cooling (~50 mK). MKIDs, on the other hand, use superconducting resonators that shift frequency when a photon is absorbed (via kinetic inductance changes). By operating an array of MKID resonators, many pixels can be read out through an RF multiplexing technique. MKIDs also work at low temperatures (around 100 mK) and have been demonstrated for far-IR through optical photon counting (e.g. the ARCONS optical/UV MKID camera for astronomy). These advanced sensors are very much on the cutting edge and mainly found in research labs or specialized instruments.

Nanostructured and 2D Material Photodetectors: Advances in nanomaterials have opened new avenues for optical sensing. Graphene-based bolometers exploit graphene’s ultra-low heat capacity and high electron mobility to achieve fast, sensitive thermal detection – graphene can thermalize a single infrared photon and change its resistance or resonant frequency, providing potentially photon-counting bolometry at higher temps than traditional TES [15]. 2D semiconductors (MoS₂, GaSe, black phosphorus, etc.) and nanowires are being explored for photodiodes covering UV to IR with high gain. For instance, photodetectors using perovskite materials (like hybrid lead halide perovskites) have achieved impressively low dark currents and high responsivities in the visible/NIR, yielding detectivities in the 10^13–10^14 Jones range at room temperature[7]. These solution-processed semiconductors could enable cheap, large-area sensor arrays. Quantum-dot photodiodes (colloidal QD films) are another emerging technology – e.g. PbS or PbSe quantum dot diodes for SWIR sensing (up to 2 µm) that can be made on silicon readouts, aiming to replace InGaAs in some applications. While current QD detectors have lower D* (~10^11), research is improving stability and noise.

Exotic “Single-Electron” Sensors: The phrase “single-electron detector” can refer to devices that register the effect of individual electrons from photon events. One example is the Skipper CCD, a variation of the CCD sensor that can measure the charge in a pixel non-destructively multiple times, effectively counting single electrons of charge. Skipper CCDs have demonstrated sub-electron read noise (0.1 e) enabling detection of individual optical or X-ray photons with high spatial resolution – useful in astronomical imaging and dark matter searches. Another concept is the single-electron transistor (SET) bolometer, where a tiny island is connected by tunnel junctions; absorption of a photon changes the island temperature and therefore the transistor’s conductivity, allowing detection of extremely small energy deposits. These are mostly experimental but have achieved remarkable sensitivity at sub-Kelvin temperatures.

“Copper Wire” Based Sensors: A curious emerging concept is using simple conductors or wires in novel sensing schemes. For example, researchers have demonstrated a copper oxide nanobelt photodetector on a copper wire: by growing CuO nanostructures around a thin copper wire, they created a cylindrical photoelectrode that is responsive over 360° incident angle. This photoelectrochemical sensor could detect UV–visible–NIR light omnidirectionally, illustrating how a basic copper wire with nanomaterial coating can function as a flexible light sensor. Such devices, while experimental, hint at low-cost distributed sensors (one could envision wrapping a copper wire sensor around objects or integrating in fiber form). Additionally, metallic wires are used in thermocouple arrays and novel micro-antenna detectors (e.g. a THz dipole antenna with a fast diode can act like a “wired” optical sensor for THz radiation).

Applications of Emerging Sensors: Many of these advanced detectors target specialized domains. SNSPDs and TES are finding use in quantum communication and computing (for reading out photonic qubits), deep-space optical communication, and fundamental physics experiments (where detecting every single photon is crucial). Graphene and 2D photodetectors could enable ultrafast optical signal detection (potentially THz modulation speeds) and flexible or integrated photonics (imagine graphene photodetectors integrated on chip with waveguides). Perovskite and QD detectors promise to bring low-cost IR imaging (e.g. night-vision or SWIR cameras that are much cheaper than today’s InGaAs cameras) and new sensor formats (printable or large-area sensor foils). The “copper wire” style and nanowire detectors could be used in wearable or distributed sensor networks, wrapping around structures for ubiquitous light or radiation monitoring. As these technologies mature, they may augment or replace traditional sensors in various scientific instruments where ultra-high sensitivity or unique form factors are required.

Superconducting Nanowire Single-Photon Detectors - SNSPDs consist of a thin superconducting nanowire (illustration)
Superconducting Nanowire Single-Photon Detectors - SNSPDs consist of a thin superconducting nanowire (illustration)

Comparative Summary of Optical Sensor Types

The table below summarizes key characteristics of major optical sensor types:

Sensor Type

Principle

Spectral Range

Typical D* (Jones)

Response Time

Cooling

Example Applications

Si Photodiode (PIN)

Photovoltaic (p-n)

0.2–1.1 µm (UV–NIR)

~10^13 – 10^14 (peak ~0.6 µm)

~ns to µs (high-speed)

No (room-temp)

Laser power meters, visible light radiometry, photometry, imaging arrays (CCD/CMOS)

InGaAs Photodiode

Photovoltaic (p-i-n)

0.9–1.7 µm (extends to 2.6 µm)

~10^12 – 10^13 (at 1.5 µm)

~ns to tens of ns

Often TE cooled for low noise

Optical communications (1550 nm receivers), NIR spectroscopy, LIDAR

HgCdTe (MCT) Photodiode

Photovoltaic

2–12 µm (mid-IR)

~10^10 – 10^11 (77 K, λ≈10 µm)

~1 µs (MHz bandwidth)

Yes (typically 77 K)

FTIR spectrometers, thermal IR imaging, IR astronomy

PbSe Photoconductor

Photoconductive (polycryst.)

1–5 µm (SWIR/MWIR)

~10^9 (room temp, 3–4 µm)

~0.1–1 ms (limited by carrier traps)

Optional TE cooling

Legacy IR spectrometers, gas analyzers (NDIR)

InSb Photodiode

Photovoltaic

1–5.5 µm (MWIR)

~10^11 (at 77 K, 5 µm)

~ns – 100 ns

Yes (77 K)

Thermal imaging (3–5 µm MWIR cameras), missile tracking sensors

Photomultiplier Tube (PMT)

Photoemissive vacuum tube

0.115–0.9 µm (UV–Vis) (extended to 1.7 µm with special cathodes)

>10^14 (single-photon level)

~1–5 ns rise (fast PMTs)

Often slight cooling to reduce dark noise (or none)

Ultra-low-light detection: fluorescence, scintillation counters, single-photon counting, LIDAR

Si Avalanche Photodiode (SPAD)

Geiger-mode diode

0.4–1.0 µm (Vis)

~10^13 (linear mode); single-photon sensitive (Geiger)

~<100 ps jitter (single-photon timing)

No (but cooling reduces dark counts)

Photon counting (fluorescence lifetime, quantum cryptography), high-speed LIDAR, particle physics detectors (SiPM arrays)

Microbolometer (VOx/a-Si)

Thermal resistive

7–14 µm (LWIR) (broadband up to THz)

~10^8 – 10^9 (300 K, 10 µm)

~10–20 ms (video rate)

No (uncooled)

Thermal cameras (night vision, thermography), portable IR imagers

Pyroelectric (DLaTGS)

Thermal (polarization)

0.1–100 µm (broadband)

~10^8 (at 10 µm, chopped)

~1 ms (with chopping)

No (room-temp)

FTIR spectrometers (broadband IR), motion sensors (PIR), IR spectroscopic sensors (NDIR gas detectors)

Thermopile

Thermal (thermocouple array)

0.1–1000 µm

~10^7 – 10^8 (broadband)

~10–30 ms (depends on element size)

No

Broadband irradiance sensors (pyranometers), laser power meters, IR thermometers

SNSPD (NbN nanowire)

Superconducting nanowire

0.5–5 µm (material dependent)

effectively infinite D (single-photon)

~<0.1 ns (20–100 ps jitter)

Yes (2–4 K)

Quantum photon counting (QKD, single-photon experiments), fast optical communication, astronomy (photon-starved observations)

Transition-Edge Sensor (TES) Bolometer

Superconducting calorimeter

0.1–100 µm (with suitable absorber)

effectively infinite (photon counting, energy resolving)

~10–100 µs (per photon event)

Yes (0.05–0.3 K)

Astrophysics (CMB and X-ray photon spectroscopy), quantum optics (photon number resolving detectors)

Perovskite / Organic PD

Photovoltaic (novel materials)

0.3–1.0 µm (Vis) extends to NIR

~10^13 (lab demos)

~µs – ms (varies)

No

Research: visible light imaging, low-cost large-area sensors, flexible photodetectors

CuO Nanowire on Cu wire (emerging)

Photoelectrochemical / photoconductive

0.365–0.85 µm (UV–Vis–NIR)

– (responsivity ~83 mA/W)

~ms

No

Experimental: omnidirectional wire-based sensors for environmental monitoring, wearable light sensors





D values are approximate peak detectivities to give a sense of magnitude (in units cm·Hz^½/W, Jones). Actual performance varies with wavelength and operating conditions (temperature, bias, frequency). “Effectively infinite” D indicates single-photon or photon-counting capability where dark noise is the limiting factor rather than NEP in the classical sense.

Conclusion

From conventional silicon photodiodes to superconducting single-photon sensors, the landscape of optical detectors is diverse. Semiconductor photodiodes (Si, InGaAs, MCT, etc.) provide high sensitivity and speed for UV–IR with relatively simple operation, forming the backbone of many radiometric instruments. Photon detectors like PMTs and photoconductors extend sensitivity into regimes and applications where semiconductors alone are insufficient (ultra-low light or mid-IR wavelengths), albeit often requiring cooling or high voltages. Thermal detectors (bolometers, pyros, thermopiles) enable broadband measurements and imaging beyond the bandgap limits of semiconductors, at the cost of response speed and sensitivity – though modern microfabrication has significantly improved their performance. Finally, emerging sensors – leveraging quantum effects, superconductivity, and nanomaterials – are pushing the frontiers of sensitivity (toward single-photon and even quantum-limited detection) and enabling new form factors (flexible, omnidirectional, or integrated sensors). The choice of detector in any radiometric or scientific instrumentation task involves balancing spectral range, sensitivity (D*, NEP), speed, and practical considerations like cooling and electronics. Ongoing advances in materials science and photonics promise further improvements, such as room-temperature single-photon detectors and low-cost IR imagers, which will undoubtedly expand the capabilities of optical measurement systems in the coming years.

References:

  1. A. P. Technologies – Photodiode Terminology: Detectivity values from 10^12 to 10^14 Jones can be expected for silicon photodiodesaptechnologies.co.uk.
  2. Thermo Fisher Scientific (2007) – Detectors for Fourier Transform Spectroscopy: Example comparison of D* showing an MCT photodiode (D* = 6.4×10^10) is ~237× more sensitive than a DLaTGS pyroelectric (D* = 2.7×10^8)nicoletcz.cz.
  3. AZoSensors (2021) – Interview with Teledyne Judson: MCT infrared detectors have ~100× higher sensitivity than bolometers/pyroelectrics over 1–25 µm, and much faster response (up to >1 MHz vs ~100 Hz for bolometers).
  4. Thorlabs Inc. – Photodiode Materials Overview: Silicon and InGaAs photodiodes feature low dark current and high speed, whereas narrow-gap detectors (extended InGaAs, InAsSb, HgCdTe) have higher dark current and often require coolingthorlabs.com.
  5. Optica (Optics Express) 2012 – Si Photodiodes with Gain: Reported a nano-engineered Si photodiode with >20 A/W responsivity at 940 nm and detectivity ~1×10^14 Jones at room temperatureopg.optica.org.
  6. Nicolet / Thermo (2007) – FTIR Detector Manual: D* of cooled mid-IR photodiodes (MCT, InSb) vs room-temp detectors (PbSe, pyroelectric); e.g. PbSe ~2.5×10^9 Jones at 3 µm (300 K), InSb ~2.2×10^11 (77 K)nicoletcz.cz.
  7. Jinxiu Liu et al., Front. Phys. 19, 62502 (2024) – Review of Single-Photon Detectors: Summarizes mainstream SPDs including PMTs, single-photon APDs, SNSPDs, TES, and perovskite photodetectors; notes their cryogenic requirements and ongoing improvements.
  8. Wei Feng et al., ACS Appl. Mater. Interfaces 13, 59715 (2021) – Demonstration of a CuO nanobelt array photodetector grown on a linear copper wire, enabling 0–360° omnidirectional UV–vis–NIR light detection with ~83 mA/W responsivity (self-powered mode)pubs.acs.org.
  9. Chee L. Tan and Hooman Mohseni, Nanophotonics 7(1), 169 (2018) – Emerging IR Detector Technologies: Reviews development of new IR photodetectors including 2D materials, quantum wells/dots, superlattice detectors, and nanostructured plasmonic antennas to improve IR detectivity and operating temperaturedegruyter.com.
  10. J. X. Zhou et al., Appl. Phys. Lett. 117, 093302 (2020) – Visible-to-NIR Organic Photodiodes: Achieved detectivity ~5.1×10^13 Jones in an organic bulk-heterojunction photodiode by suppressing dark current and optimizing NIR response.
  11. Rogalski, A., & Chrzanowski, K. (2009). Infrared devices and techniques (revision). Sensors and Actuators A: Physical, 152(1), 31–45.
  12. Chrzanowski, K., & Skorupski, K. (2008). Selection of modulation frequency of thermal radiation for maximum performance of infrared photodetectors. Sensors and Actuators A: Physical, 147(1), 163–167.
  13. Rogalski, A. (2017). Next decade in infrared detectors. Proceedings of SPIE, 10433, 104330L. https://doi.org/10.1117/12.2300779
  14. Simtrum Pte Ltd. (2023). Pyroelectric Detectors: DLATGS, Lithium Tantalate, and PZT Material Comparison.
  15. Ou, Y., Yang, H., Liang, H., Zhang, L., Yu, J., Zhou, S., & Lin, Q. (2024). Uncooled thermal infrared detection near the physical limit



The post Optical Sensors in Radiometry – Technical Review appeared first on izakscientific.

]]>
https://izakscientific.com/optical-sensors-in-radiometry-technical-review/feed/ 0
The Best Use of FPGA in Your Electro Optics Setup Project https://izakscientific.com/the-best-use-of-fpga-in-your-electro-optics-setup-project/ https://izakscientific.com/the-best-use-of-fpga-in-your-electro-optics-setup-project/#respond Thu, 08 May 2025 22:12:19 +0000 https://izakscientific.com/?p=5106 FPGA Applications in Photonics: Classical and Quantum Technologies In today’s photonics and electro-optics landscape, systems require real-time precision, high bandwidth control, and deterministic behavior. Field Programmable Gate Arrays (FPGAs) are the ideal solution for these electro-optical applications Introduction Field-Programmable Gate Arrays (FPGAs) are reconfigurable integrated circuits that can be programmed to implement custom hardware logic. […]

The post The Best Use of FPGA in Your Electro Optics Setup Project appeared first on izakscientific.

]]>

FPGA Applications in Photonics: Classical and Quantum Technologies

In today’s photonics and electro-optics landscape, systems require real-time precision, high bandwidth control, and deterministic behavior. Field Programmable Gate Arrays (FPGAs) are the ideal solution for these electro-optical applications

Introduction

Field-Programmable Gate Arrays (FPGAs) are reconfigurable integrated circuits that can be programmed to implement custom hardware logic. Unlike fixed-function ASICs or software running on CPUs/GPUs, FPGAs consist of an array of configurable logic blocks (e.g. lookup tables and flip-flops) with programmable interconnects, plus dedicated resources like DSP cores and memory blocks. This architecture enables massive parallelism and deterministic timing in signal processing‎[2]. In photonics – the science and technology of light – many applications demand precise timing (often sub-nanosecond jitter), high throughput data handling, and real-time processing that outpace general-purpose processors. FPGAs excel in these aspects by offering nanosecond-scale latency, hardware-level concurrency, and flexibility to interface with fast analog/digital converters and optical transceivers. This report explores the best uses of FPGAs in photonics, spanning classical electro-optic systems and emerging quantum technologies. We begin by explaining key FPGA attributes (architecture and jitter) and why they are beneficial for photonics. We then examine a range of photonics application areas – from high-speed optical communications and LIDAR to ultrafast lasers, spectroscopy, adaptive optics, and imaging – highlighting specific FPGA-based implementations from academia, laboratories, and industry. Finally, we review the role of FPGAs in quantum photonic systems, including quantum sensing, quantum communication (e.g. QKD), and quantum computing interfaces, with real-world examples of their use in photon counting and qubit control. Throughout, recent demonstrations (primarily from the last 5–7 years) are cited to illustrate state-of-the-art achievements.

FPGA Architecture, Timing Jitter, and Benefits for Photonics

FPGA Architecture: An FPGA is essentially a sea of logic gates that the user can wire together in nearly arbitrary ways. Modern FPGAs contain thousands of logic elements organized into configurable logic blocks (CLBs), each with lookup tables to implement boolean functions and flip-flops for storage, all connected via programmable routing fabric. They also include embedded memory (Block RAM), hardware multipliers/accumulators (DSP slices), and high-speed I/O transceivers. This architecture allows implementing custom digital circuits optimized for a specific task, and these circuits operate in true parallel fashion (every logic element can work concurrently on different bits of data) as opposed to sequential execution in CPUs ‎[2]. For photonics, this means an FPGA can process multiple high-speed optical data streams or sensor signals simultaneously (e.g. multi-channel photodetectors or pixel arrays), and can perform pipelined computations on each clock cycle. Crucially, FPGA designs are synchronous – driven by a clock – which gives precise control over timing. Once configured, signal propagation through the FPGA’s logic occurs with fixed, known delays (on the order of nanoseconds), enabling deterministic response timing that is critical in feedback loops and timing-sensitive optical experiments.

Timing Jitter: Jitter refers to the small timing fluctuations or uncertainty in event occurrence times, often measured as the standard deviation of a signal’s timing error. In photonic systems, jitter in a clock or trigger can degrade performance – for example, timing jitter in a pulsed laser driver broadens the pulses, and jitter in detector gating or timestamping limits time-of-flight accuracy. FPGAs can help minimize and manage jitter in two ways. First, by bringing processing into hardware, they avoid the indeterminate latency of software and operating systems; an FPGA can respond to an input event within one clock cycle deterministically, whereas a microcontroller or PC might have unpredictable scheduling delays. Second, FPGAs can incorporate custom time-to-digital converters (TDCs) and phase-locked loops to measure and adjust timing with picosecond resolution. Modern FPGA-based time interval analyzers achieve digital time resolutions below 1 picosecond – for instance, one system reports a 780 fs timing resolution with an RMS jitter under 20 ps (liquidinstruments ‎[7]). Such precise timing is extremely useful for photon counting and optical ranging applications. Additionally, multiple signals can be aligned or correlated in hardware with sub-nanosecond precision on an FPGA, which is very challenging via software. By using techniques like tapped delay lines in FPGA fabric, time intervals much shorter than the base clock period can be resolved, providing fine-grained control and measurement of optical pulse timing (liquidinstruments ‎[7]).  Overall, the low intrinsic jitter and deterministic timing of FPGAs make them ideal for synchronization tasks (e.g. locking laser pulses to detectors) and any photonic system where timing stability is paramount.

 Example of an FPGA-based photonic system for LIDAR: Block diagram of an FMCW LIDAR processing architecture implemented on FPGA (bottom, “Firmware”), interfaced with the optical front-end modules (top red box, simulated in this case). The FPGA logic performs digital down-conversion (DDC), filtering (LPF/HPF), decimation, and FFT processing on the beat signal in real-time, and passes the reduced data to an embedded processor for distance calculation. Such an integrated, timing-critical system would be difficult to realize efficiently without the parallel, deterministic capabilities of an FPGA ‎[3] mdpi.com.

Benefits in Photonics: The general advantages of FPGAs – reconfigurability, parallel processing, and low-latency control – map strongly to photonics needs. Many optical systems generate high data throughput (for example, gigabit-per-second serial data in optical communication, or megapixel cameras in imaging) which FPGAs can handle by distributing the workload across many logic elements or pipeline stages. Photonics experiments often must run in real-time, such as adaptive optics systems that correct a laser beam while it propagates, or a spectroscopy setup that adjusts in real-time to a changing signal. An FPGA can implement closed-loop controllers or signal processors that update every microsecond or faster, which is far beyond the capability of PC-based control. The hardware-level parallelism also allows complex algorithms (filtering, FFTs, neural networks, etc.) to be executed with deterministic throughput regardless of algorithmic complexity, so long as the design fits in the FPGA. This is critical in timing-sensitive applications: e.g., in a pulsed laser system, an FPGA can monitor each pulse and apply a correction or log an event with exactly the same delay each time, ensuring a stable timing relationship (minimal drift). In summary, using FPGAs in photonics yields: (1) Precise timing and low jitter for generating and measuring optical events, (2) High-speed signal processing close to the source (avoiding data bottlenecks of transferring to a PC), and (3) Reconfigurable logic that can be tailored to specific photonic experiments or standards, and updated as requirements evolve. These benefits have motivated widespread adoption of FPGAs in both classical optical systems and cutting-edge quantum photonic setups.

Demo Video: Real-Time Signal Acquisition and Analysis (NI CompactRIO FPGA System)

This demo video presents IZAK Scientific’s Acustics Emission System project, an advanced FPGA and real-time signal processing solution built upon the National Instruments CompactRIO (cRIO) FPGA platform. The system integrates multiple NI modules—including NI-9203 for current measurement, NI-9205 for voltage acquisition, and several high-speed NI-9223 modules for megahertz-range waveform sampling. It enables real-time parametric data acquisition across multiple channels, with sophisticated FPGA-based digital filtering, hit-detection, and data processing capabilities.

The FPGA efficiently manages high-throughput data streams, calculating key parameters such as Amplitude, Energy, Rise Time, Duration, and applying complex filtering algorithms directly in hardware. The processed data is then seamlessly transferred through dedicated DMA channels to a Real-Time (RT) layer, enabling precise waveform and parameter visualization, histogram analysis, and advanced scatter plot analysis via a user-friendly interface.

This solution exemplifies IZAK Scientific’s expertise in leveraging CompactRIO FPGA technology combined with LabVIEW Real-Time for demanding, precision-oriented photonic and electronic measurement applications.

High-Speed Optical Communication Systems

One of the most significant classical photonics application areas for FPGAs is high-speed optical communication. Fiber-optic communication links (and free-space optical links) often operate at tens of gigabits per second and require sophisticated digital signal processing (DSP) for modulation, demodulation, and error correction. FPGAs are frequently used as the digital engine in optical transceivers and research prototypes because they can keep up with the required data rates and implement custom algorithms. For example, in intensity-modulation direct-detection links using advanced modulation formats like PAM4 (4-level Pulse Amplitude Modulation), FPGA-based processors can pre-compensate and equalize nonlinearities in real-time. Hu et al. (2024) demonstrated a 24.576 Gbit/s short-reach optical link using an FPGA to implement a neural-network-based digital pre-distortion (DPD) algorithm ‎[2].​ In their system, a 14.7456 GBaud PAM4 optical signal (20 km fiber link) is processed by a 64-channel parallel multilayer perceptron on the FPGA, which pre-distorts the transmitter waveform to counteract fiber and device nonlinearities. This FPGA-based approach kept the bit error rate below the forward error correction threshold, achieving error-free communication at 24+ Gbps‎.​ The authors note that “Field-programmable gate arrays, with their real-time processing capability, high parallelism, and flexible programming features, are ideal hardware choices for meeting the demands of high-speed data transmission in optical communications.”​ ‎[2]. Indeed, many optical communication experiments rely on FPGA boards for real-time DSP: tasks include carrier recovery and demodulation in coherent optical receivers, forward error correction coding/decoding, and framing at 100 Gbps and beyond. While commercial optical transceivers eventually use ASICs for these functions (to reduce cost per unit), FPGAs are indispensable in research and prototype stages due to their programmability and rapid development cycle – allowing testing of new modulation formats or DSP algorithms in working optical links.

Another niche in optical communications where FPGAs shine is free-space and underwater optical links, which often have unique modulation or synchronization schemes. For instance, researchers demonstrated an FPGA-based design for a 4 Gbps low-latency underwater optical communication system, showing that the FPGA could handle the tight timing for half-duplex transmission and quick turnaround between transmit/receive modes​‎[2]. In Visible Light Communication (VLC) or optical wireless systems, FPGAs can perform real-time adaptation to changing channel conditions (like modulation adjustments based on ambient light), which would be too slow if done in software. In summary, FPGAs provide the muscle for high-throughput optical communication by executing custom, parallel DSP pipelines – from filtering and equalization to clock/data recovery – all with deterministic low latency. This makes them critical for achieving the requisite performance in systems such as coherent fiber links, short-range optical interconnects, and advanced optical modulation research.

LIDAR and Time-of-Flight Ranging

Light Detection and Ranging (LIDAR) systems send out laser pulses or chirped optical signals and measure reflections to determine distance or create 3D images of environments. FPGAs are widely used in LIDAR for both signal generation (timing the outgoing pulses or chirps) and signal processing (capturing return signals and computing distances) in real-time. A key challenge in LIDAR is timing accuracy – for a pulsed Time-of-Flight (ToF) LIDAR, measuring distances with centimeter accuracy requires timing optical pulse returns with on the order of 100 ps precision. FPGAs, with their low jitter and ability to implement high-resolution TDCs, are ideal for this. They can timestamp the departure and arrival of laser pulses and compute distances on the fly. Additionally, parallel processing is useful in LIDAR for handling multiple detection channels or multiple pulses in flight. Frequency-Modulated Continuous-Wave (FMCW) LIDAR is an advanced form that uses chirped (frequency-swept) lasers and measures distance via frequency shift of the beat signal. FMCW LIDAR offers high sensitivity and can measure velocity (via Doppler) but requires heavy signal processing (Fourier transforms to extract beat frequencies) at high data rates. FPGAs have been crucial in making FMCW LIDAR feasible by handling these computations in real-time. Kim et al. (2020) developed an FPGA-based FMCW LIDAR processing engine that significantly reduces hardware complexity while improving range resolution‎ [3]. In their design, the analog optical front-end outputs a high-frequency beat signal (proportional to target distance); instead of performing a large 8192-point FFT in one go (which is hardware intensive), they use a digital down-conversion (DDC) technique in the FPGA to lower the sampling rate and then perform a 256-point FFT [3]. By doing so, they achieved distance measurements in 3 cm increments with an RMS error of about 3 cm, and further applied a constant false-alarm rate (CFAR) algorithm on the FPGA to improve the ranging precision to ~1.9 cm RMS​. All signal processing – including mixers, decimation filters, power estimation, FFT, and peak detection – was implemented in the FPGA’s logic and Block RAM. Notably, the entire hardware module was verified on a Xilinx Zynq FPGA, and the approach could handle beat frequencies corresponding to distances up to 50 m at fine resolution​ [3]. This level of real-time performance would be extremely challenging without FPGAs; a CPU processing 8192-point FFTs at multi-megahertz rates would not keep up, whereas the FPGA can pipeline the operations.

Beyond FMCW, even in pulsed LIDAR systems for autonomous vehicles, FPGAs often provide the “brains”. They can generate the nanosecond-scale laser trigger pulses with consistent timing, and simultaneously start timing counters to measure the return. If multiple detectors are used (e.g. a SPAD array or multiple scanning angles), the FPGA can parallelize the time measurements on all channels. In some advanced multi-channel LIDAR prototypes, the FPGA not only measures times but also performs immediate calculations to create a depth map that can be streamed out. For example, a recent multi-channel chaos LIDAR system used an FPGA to coordinate the entire operation: it synchronized the pulsed laser source, controlled a MEMS beam-scanning mirror, and processed the chaotic return signals in real-time ‎[11]. The result was a real-time 3D point cloud generation which would be unattainable without the tight integration of control and processing that the FPGA provided. Timing precision is also worth noting – FPGA-based TDC implementations for single-photon LIDAR can reach tens of picoseconds resolution. One FPGA LIDAR timing experiment achieved a synchronization jitter of ~150 fs RMS between pulse arrival times ‎[11], highlighting that FPGAs can meet even the most extreme timing requirements in optical ranging.

In summary, FPGAs enable LIDAR systems to meet their two key demands: high-speed parallel processing of sensor data, and ultra-precise timing for distance measurement. This has been demonstrated in academic systems (improving FMCW LiDAR range resolution via real-time DDC/FFT on FPGAs  and in industrial prototypes (self-driving car LIDAR units with on-board FPGA logic). As LIDAR moves toward higher resolution and faster update rates (for autonomous navigation or atmospheric monitoring), the role of FPGAs is only growing, often in hybrid FPGA-ASIC solutions or FPGA-SoC (system-on-chip) devices that combine FPGA fabric with embedded CPUs for additional processing.

Ultrafast Lasers and Spectroscopy

Ultrafast photonics involves lasers with picosecond or femtosecond pulses, frequency combs, and high-speed optical modulation – domains where timing is critical and data can be prodigious. FPGAs have found important uses in controlling ultrafast laser systems and in processing data from ultrafast optical measurements (such as spectroscopy). A prime example is dual-comb spectroscopy, an advanced spectroscopy technique using two frequency comb lasers. Dual-comb spectroscopy can achieve high-resolution broadband spectra without moving parts, but it requires phase-coherent averaging of data at high speed to attain good signal-to-noise ratio. Implementing this in real-time is challenging, and this is where FPGAs have made an impact. Chen et al. (2020) reported an FPGA-based real-time signal processor for dual-comb spectroscopy that performs computational coherent averaging on the fly‎[1]. By processing the free-running dual-comb interferograms in an FPGA, they achieved a 7× improvement in random noise compared to simply recording the raw data and averaging offline. In other words, the FPGA could align and average successive spectra in real-time, correcting for phase drifts between the combs, which led to a cleaner spectrum within the same acquisition time. This kind of real-time improvement is crucial for practical dual-comb systems and would be very difficult without an FPGA or similar hardware – the data rates from dual-comb interferometers (multiple MHz) are too high for PC processing in real-time, and the phase correction algorithms require deterministic, cycle-by-cycle operations well-suited to FPGA logic.

Another area is laser stabilization and pulse control. Ultrafast lasers often need active feedback to stabilize their repetition rate or carrier-envelope phase. FPGAs are used in some systems to lock the laser’s timing to an external reference (or vice versa) by processing detector signals (e.g., from a photodiode measuring pulses) and adjusting a cavity length actuator. The low latency of an FPGA control loop can correct timing errors every pulse (at tens of MHz repetition), something unattainable with a PC-based controller. Similarly, in pulse shaping and optical arbitrary waveform generation, FPGAs can be used to drive high-speed modulators with calculated waveforms in real-time, enabling dynamic control of ultrafast pulse trains.

In spectroscopy beyond dual-comb, many experiments require capturing transient optical signals at high speed. An FPGA can serve as a real-time spectrometer back-end: for example, in laser absorption spectroscopy, an FPGA might take a detector’s output (after ADC) and continuously compute absorbance or fit spectral lines at kilohertz rates for monitoring chemical processes. A recent work implemented a real-time laser absorption spectroscopy sensor on an edge computing platform (an embedded system with FPGA/SoC) to monitor gas concentrations at 10 kHz sample rate. By deploying a neural network on the FPGA/embedded device, they achieved an update rate of 62.5 Hz for gas measurements while handling the raw 10 kHz data stream internally. This shows how FPGAs enable on-line data reduction in spectroscopy, allowing sensitive measurements in harsh or remote environments without needing a bulky computer. The result was a compact, in situ sensor that could capture rapid changes in gas parameters (e.g. tracking combustion dynamics up to 200 Hz) entirely in real-time‎[12].

Overall, FPGAs enhance ultrafast laser and spectroscopy setups by providing real-time computational power and control. They can synchronize multiple optical channels, implement feedback loops for stabilization, and process measurement data at the high rates dictated by ultrafast phenomena. These capabilities are essential for experiments like pump-probe measurements, ultrafast microscopy, or spectroscopic monitoring of fast events, where huge volumes of data or rapid decisions (triggering, switching) are involved. By handling these in hardware, FPGAs allow scientists to observe and control ultrafast photonic events with a fidelity and speed that would otherwise be impossible.

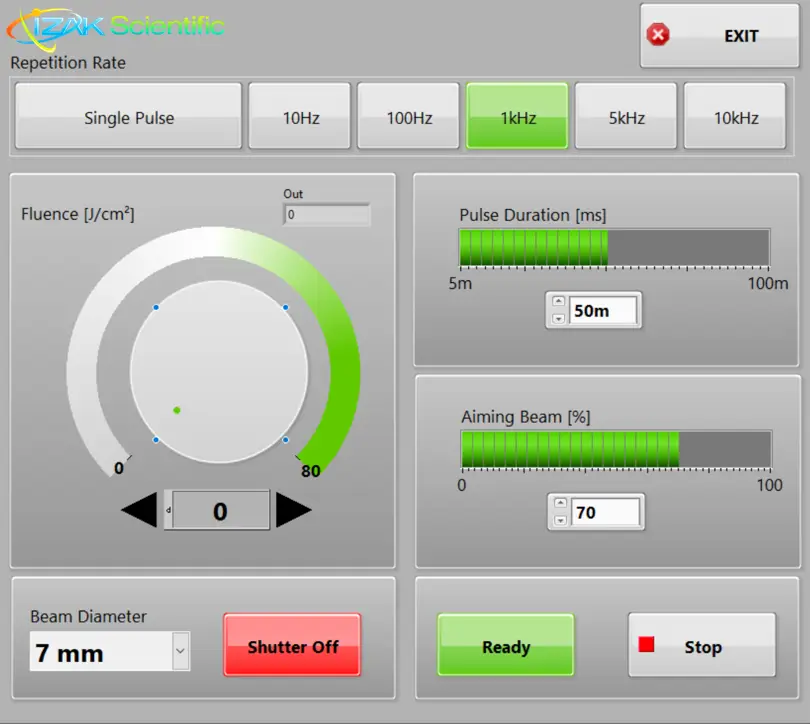

Laser Driver Control System - sbRIO FPGA Platform

IZAK Scientific’s Laser Driver Control System implemented on an embedded National Instruments sbRIO FPGA platform. This system demonstrates precise real-time control over laser operations, tailored specifically for industrial and medical laser devices. It includes high-speed digital outputs for laser triggering and pulse shaping, analog outputs for dynamic intensity control, and PWM outputs for accurate aiming beam control. The sbRIO FPGA system provides deterministic, real-time control essential for synchronized and safe laser operation, capable of handling precise timing sequences with exceptional reliability. This solution highlights IZAK Scientific’s proficiency in delivering specialized FPGA-based hardware combined with custom LabVIEW applications for cutting-edge laser technology.

Adaptive Optics and Beam Control

Adaptive optics (AO) involves real-time adjustment of optical elements (like mirrors or lenses) to improve performance, commonly used to correct wavefront distortions. In astronomy, AO corrects atmospheric distortion using deformable mirrors driven by feedback from wavefront sensors. In high-power lasers and other photonics, AO can stabilize beams against thermal distortions or mechanical jitter. These systems typically require high-speed, deterministic control, since corrections must be applied quickly (often in sub-millisecond timescales) to be effective. FPGAs have become a key enabling technology for AO controllers thanks to their speed and parallel processing for sensor readout.

A concrete example is laser beam pointing stabilizationZhang et al. (2023) designed a laser beam jitter control system using a fast steering mirror (FSM) and a camera, with an FPGA (NI FlexRIO) as the real-time controller ‎[4]. In their setup, the CMOS camera detects the beam position, and the FPGA processes this in hardware to compute the error and send corrective commands to the FSM at high rate. By implementing the feedback loop in LabVIEW FPGA (a graphical FPGA programming environment) and optimizing for speed, they achieved a highly stabilized beam with very short response time. The closed-loop bandwidth was sufficient to correct platform vibrations and other disturbances, significantly reducing the beam deviation. The results showed improved stability and a fast transient response (short rise time) of the system, demonstrating the suitability of FPGA control for jitter reduction in engineering applications ‎[4]. Without the FPGA, a general-purpose processor might only correct the beam at a few Hz or tens of Hz due to image processing latency, whereas the FPGA could handle the computations at kHz rates, aligning with the camera’s frame rate.

More generally in adaptive optics, an FPGA can acquire data from a wavefront sensor (e.g. an array of photodiodes or a Shack-Hartmann sensor), calculate the required actuator adjustments (using matrix-vector multiplication for wavefront reconstruction), and output commands to a deformable mirror – all within microseconds. For instance, AO systems for telescope or laser applications have been demonstrated with FPGAs running the control loop at 1–2 kHz update rates for dozens of actuators ‎[10]. The deterministic nature of FPGA control is essential; every control cycle takes the same fixed time, ensuring stability of the control loop (no dropped or delayed cycles). In contrast, a PC-based AO control might jitter in its loop timing, introducing instabilities. FPGAs also allow parallel processing of multiple wavefront sensor channels (sub-apertures), which is crucial as the number of sensors/actuators grows in advanced AO (future giant telescopes will have thousands of sensors and actuators, where FPGAs or custom hardware are a must).

Another application is in ultra-intense laser facilities (which effectively borrow adaptive optics concepts from astronomy to stabilize high-power beams). A recent project implemented real-time wavefront stabilization for the Apollon petawatt laser using a high-speed controller to drive a deformable mirror and a Shack-Hartmann wavefront sensor. While in that case a GPU-based controller was used ‎[10], the need for sub-millisecond latency was highlighted, and FPGA-based or hybrid FPGA solutions are being considered for even faster response. The general trend is that as the required control rate pushes into the tens of kHz (or as system complexity grows), FPGAs become the preferred platform for AO control.

In image processing and adaptive optics combined – for example, stabilizing an optical image or tracking an object – FPGAs can do real-time image analysis (such as centroid finding or correlation) on camera data and then actuate optics accordingly. The beam stabilization example above involved processing each video frame to find the laser spot position, essentially an image-processing task, done in hardware. The FPGA’s ability to handle the camera’s full frame rate with minimal latency made it possible to stabilize the beam in real-time. In more computational imaging contexts (like holographic imaging or phase retrieval), FPGAs have been used to accelerate the necessary FFTs and cross-correlations, enabling live reconstruction of images. Keywords associated with these FPGA-based optical systems often include “image processing” and “PID control,” underscoring that such FPGAs are effectively performing fast image-based control‎[4].

In summary, FPGAs empower adaptive optics and beam control by offering the speed, parallelism, and precise timing needed for feedback loops that involve many sensors and actuators. They have been successfully used to stabilize laser beams against jitter ‎[4], to correct atmospheric distortion at kHz rates in telescopes, and to manage dynamic optical elements in applications like microscopy and free-space optics. The result is improved optical performance (sharper images, steadier beams) that would be unattainable without real-time FPGA-based control.

Photonic Image Processing and High-Speed Vision

Photonics isn’t only about analog optical signals – it also includes the processing of optical images and signals in the digital domain. “Photonic image processing” can refer to handling the data from optical imagers (cameras, lidar imagers, etc.) at very high frame rates or with optical pre-processing. FPGAs are widely used in high-speed vision systems and optical image processing where throughput and latency are critical. For instance, in a laser scanning microscope or an optical coherence tomography (OCT) system that produces megabytes of data per frame, an FPGA can perform real-time filtering, FFT, or image correction before storing or displaying the image. This is analogous to using a graphics processor, but the FPGA can be more deterministic and tailored to the exact algorithm.

One practical example is in smart cameras: cameras with built-in FPGAs can preprocess images (do compression, feature extraction, or thresholding) on-the-fly, reducing output data and enabling faster decision-making. In industrial inspection or optical tracking, an FPGA might analyze hundreds of frames per second, detecting events or computing guidance signals directly from the image stream. The benefit is that the immense parallelism of an FPGA can handle pixel-wise operations across an entire image concurrently. For example, if one needs to apply a filter or threshold to a million-pixel image at 1000 fps, that’s 1 billion pixel operations per second – a level at which a single CPU would struggle, but an FPGA with 1,000 parallel operations can manage by giving each pixel (or small group of pixels) its own processing pipeline.

In the context of the photonics applications listed, high-speed imaging often ties into other areas: LIDAR produces point clouds (images of distance), adaptive optics deals with wavefront sensor images, and quantum imaging (discussed later) may involve single-photon image reconstruction. FPGAs can thus serve as the bridge between the optical sensor and the digital outcome, implementing algorithms like centroiding (finding the center of a laser spot), frame accumulation, or even neural network inference on images in real-time. An example from research combined an FPGA with a single-pixel camera to do real-time computational imaging, where the FPGA would control a micromirror array to display patterns and simultaneously process the single-pixel detector readings to reconstruct an image on the fly – demonstrating a form of photonic image processing and adaptive control within the same FPGA system‎[4].

In summary, wherever images or optical spatial data need to be processed at high speed, FPGAs offer a solution. They can implement pixel-parallel pipelines that keep up with high frame rates, perform custom operations (which might be too unusual for a standard GPU to accelerate), and interface directly with camera sensors or spatial light modulators. The use of FPGAs in photonic image processing is evident in applications like real-time holography, high-speed tracking (e.g., tracking a laser pointer spot at thousands of frames per second), and any vision system where latency must be minimized (such as feedback based on images). By pre-processing and analyzing images in hardware, FPGAs enable faster and more efficient use of optical imaging data in both scientific instruments and industrial photonic systems.

Quantum Photonics and Quantum Technology Interfaces

Beyond classical photonics, FPGAs play a crucial role in quantum photonics and quantum technology interfaces. Quantum systems often involve delicate, fast events (like single-photon detections or qubit operations) that must be orchestrated or recorded with extreme timing precision and very low latency decisions. FPGAs, thanks to their deterministic and fast nature, form the backbone of many quantum experimental control systems.

Quantum Communication (QKD and Photon Counting)

Quantum Key Distribution (QKD) is a technology where secret keys are generated by sending quantum states (often single photons) between two parties. QKD protocols (like BB84 for discrete variables, or continuous-variable QKD) require not only the quantum optical transmissions, but also substantial classical post-processing: error correction, privacy amplification, and authentication, all of which must be done in real-time to generate a final key. These tasks can be computationally intensive, especially at high bit rates or when using high-dimensional encoding. FPGAs have been employed to accelerate QKD post-processing and to interface with high-speed optoelectronic components. For example, in continuous-variable QKD, an FPGA-based implementation of multidimensional reconciliation encoding was demonstrated by Lu et al. (2023) to handle error correction on a high-speed optical key stream ‎[5]. By cleverly structuring the algorithm to fit FPGA architecture (using parallel operations and on-chip memory), they achieved a processing throughput up to 4.88 million symbols per second on a Xilinx Virtex-7 FPGA. This throughput enables real-time error correction even for high-rate CV-QKD systems, something that general CPUs would struggle with due to the combination of large block sizes and low latency requirements. The FPGA design processed 8-dimensional reconciliation coding, showing that such complex algebra can be done in hardware efficiently  ‎[5]. Similarly, other groups have used FPGAs for privacy amplification (hashing the corrected key down to a shorter secure key) – one recent implementation achieved handling of $>10^8$ bits in block size for privacy amplification using an FPGA cluster, vastly speeding up a step that could be a bottleneck in QKD ‎[13].

At the hardware interface level, FPGAs often control the modulators and detectors in QKD. For discrete-variable QKD (like BB84 protocol), an FPGA can generate the pseudorandom bit sequence that drives an electro-optic modulator (to encode polarization or phase on each photon) and can timestamp detection events from single-photon detectors. The timing aspect is critical: single-photon avalanche diodes (SPADs) or superconducting nanowire detectors produce very narrow pulses when they detect a photon, and these must be timestamped with sub-nanosecond accuracy to sift the keys. FPGA-based time-taggers can record detection times with picosecond resolution, enabling accurate pairing of photon events with sent bits‎[7]. Moreover, an FPGA can apply gating to detectors (turning them on only when a photon is expected, to reduce noise) with precise timing. In an underwater QKD demonstration (2021) [14], an FPGA was used for the entire BB84 protocol logic in real-time, interfacing with the optics to generate polarized photons and measure results, showing that even a full QKD protocol can be embedded on a single FPGA device for field deployment. The result was stable secret key generation over a water channel, made possible by the self-contained FPGA system handling synchronization, basis sifting, error correction, and privacy amplification on-board.

Photon counting in a broader sense (not just for QKD) is also heavily FPGA-reliant. Quantum optics experiments often use single-photon counters (e.g. in quantum imaging, fluorescence lifetime measurements, or fundamental tests) and need to record the arrival times of photons at high rates. FPGA-based TDCs have achieved timing bins on the order of 10–20 ps ‎[12], allowing researchers to build time-correlated single photon counting (TCSPC) setups without dedicated TDC chips. For instance, Liquid Instruments’ Moku:Pro device (FPGA-based) can timestamp photons with ~20 ps RMS jitter [7], which is sufficient for many quantum optics timing experiments. Additionally, FPGAs can implement real-time histograms or correlations of photon arrival times for experiments like Hanbury Brown–Twiss intensity correlations, providing immediate results rather than storing gigabytes of timestamps for later analysis [7].

In summary, FPGAs significantly enhance quantum communications by enabling real-time processing and precise handling of photonic qubits. They bridge the gap between the quantum physical layer (faint laser pulses or single photons) and the classical digital layer (error correction algorithms and key distillation). Without FPGAs or similar hardware, high-rate QKD systems would be limited by the latency and throughput of software processing, and the synchronization of single-photon events would be far less precise.

Quantum Sensing and Metrology

Quantum sensing exploits quantum states or phenomena to achieve ultra-sensitive measurements (for example, using entangled photons for improved imaging, or NV centers in diamond for magnetic field sensing). These experiments often involve coordinating lasers, detectors, and sometimes feedback based on quantum events. FPGAs are widely used in quantum sensing setups as the central controller and data acquisition system.

Take the example of an optical atomic clock or interferometric quantum sensor: One might have a pulsed laser interacting with atoms, and single-photon detectors reading out the state of the atoms. An FPGA can orchestrate the timing of laser pulses (down to ns precision), apply frequency or phase chirps via driving an acousto-optic modulator, and read the detector outputs to decide the next pulse sequence. Because these experiments sometimes need conditional logic (e.g. if an atom was detected in state A, apply sequence X next; if not, do Y), the reconfigurability of an FPGA is valuable – one can program such a decision tree into the hardware. FPGAs have been used, for instance, to implement real-time phase lock loops for stabilizing lasers to atomic transitions, or to do fast lock-in detection of signals in NV-diamond magnetometers (where the FPGA modulates a microwave drive and demodulates the fluorescence signal from the NV center in real-time). The extremely low jitter and fast computing means the FPGA can extract very weak signals buried in noise by coherent integration or filtering, effectively enhancing the sensor performance.

In quantum optics experiments, sometimes the experiment requires coincidence detection between photons – for example, heralded photon sources or entanglement experiments. FPGAs can monitor multiple detector channels simultaneously and identify coincident detections with nanosecond windows, then trigger some action or simply log the coincidences. Because all channels are within one FPGA, the relative timing can be calibrated tightly (down to picoseconds), which is much better than trying to combine separate devices. This is essential for observing quantum correlations or for quantum LiDAR schemes that look for simultaneous photon returns.

Another advanced capability is real-time feedback in quantum sensing. For example, in some cavity QED (quantum electrodynamics) experiments, an FPGA monitors photon counts leaking from a cavity and adjusts a magnetic field or laser intensity in real-time to keep the system in a desired quantum state (this is a form of active quantum stabilization). The feedback must happen faster than the system’s decoherence time, which can be microseconds – again, only an FPGA (or custom hardware) can operate on these timescales reliably.

In summary, FPGAs serve as the central classical node in many quantum sensing systems – they interface with quantum hardware (lasers, detectors, etc.), provide timing and control, and do initial processing of the sensor signals. This enhances the sensitivity and allows experiments that would otherwise require slow, offline analysis to be done in streaming mode. The result is more efficient data collection and even new measurement capabilities (like catching and reacting to quantum signals in flight). As quantum sensors move out of labs into field-deployable instruments, having an FPGA-based embedded controller is crucial for portability; indeed, many deployable quantum sensors (quantum gravimeters, portable atomic clocks, etc.) rely on FPGA/SoC devices for a compact, low-power control system that can run off batteries or mobile setups.

Quantum Computing Interfaces and Feed-forward Control

Quantum computing with photonics or other qubits involves delicate control of qubit states and often the need for feed-forward (adaptive) operations based on measurement outcomes. Whether the qubits are photons, trapped ions, or superconducting circuits, an FPGA-based control system is often used to interface between the classical digital domain and the quantum hardware. FPGAs can generate precisely shaped pulses (microwave, laser, or electro-optic) to manipulate qubits, and can read out signals (like a photodetector or a superconducting qubit readout) to determine the qubit state, all with minimal latency.

A salient example is the control of superconducting qubits, where commercial control systems (e.g. Quantum Machines’ OPX) are built around FPGAs. These systems allow users to program quantum pulse sequences with branching logic. For instance, QubiC 2.0 (an open-source qubit control system) uses an FPGA (on a Xilinx Zynq UltraScale+ RFSoC) to handle mid-circuit measurement and feed-forward for qubits ‎[6]. The designers adopted a multi-core approach inside the FPGA, effectively giving each qubit its own processing core to ensure operations on different qubits can happen in parallel with precise timing. They store pulse shapes in the FPGA’s memory and can update pulse parameters (amplitude, phase, frequency) on the fly between pulses. With this setup, when a qubit is measured during a quantum circuit, the FPGA can decide in a few tens of nanoseconds how to adjust subsequent pulses (e.g. applying a correction if the qubit was in state 1 versus 0). This feed-forward latency is extremely low – on the order of the FPGA’s clock cycle (~10 ns or so) plus some pipeline delay – which enables protocols like quantum error correction where one must quickly respond to measurement outcomes. Indeed, with QubiC 2.0 they demonstrated conditional operations (feed-forward) and even synchronization of multiple FPGAs for scaling up ‎[6].

In photonic quantum computing, active feed-forward is absolutely essential in some architectures (like linear optical quantum computing). For example, in certain photonic circuits, a measurement on one photon’s polarization will dictate how to switch a subsequent photon’s path or phase. This must happen while the latter photon is still in flight, often within nanoseconds for on-chip systems or microseconds for fiber delay line systems. FPGAs are the go-to solution for this: a photon detection is routed to an FPGA, which then toggles a Pockels cell or a fast optical switch to perform the next operation. A notable early demonstration used an FPGA to control a high-speed tunable beamsplitter for quantum computing with active feed-forward, achieving the required sub-microsecond switching based on measured photon events‎[15]. The FPGA logic was responsible for deciding the output of the tunable beamsplitter in real-time, something impossible to do with a PC. As a result, they realized a linear optics quantum gate with feed-forward, a stepping stone toward scalable optical quantum computing ‎[15]‎[16].

In summary, quantum computing interface electronics rely heavily on FPGAs to bridge the fast, parallel world of quantum hardware and the flexible world of classical control software. FPGAs provide ultra-low latency control, which enables mid-circuit adaptations (a key ingredient in advanced algorithms and error correction). They also ensure precise timing synchronization across multiple qubits or photonic channels – often, multiple DAC/ADC channels on an FPGA are all clock-synchronized to sub-ps skew, which is crucial for multiqubit gate calibration and interference of photons. Without FPGAs, quantum experiments would be forced to either operate in open-loop (no real-time decisions) or suffer long dead-times while waiting for a CPU to respond, both of which limit scalability. Therefore, FPGAs are a linchpin in quantum photonics and quantum computing, accelerating progress by unlocking experiments and protocols that demand fast, parallel, and adaptive control.

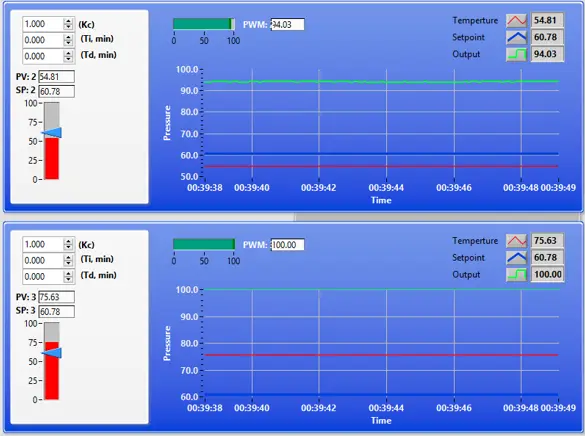

Laser Cooling and Thermal Management Controller - NI sbRIO FPGA Platform

The second image presents IZAK Scientific’s sophisticated Laser Cooling and Thermal Management System, built upon the National Instruments sbRIO FPGA hardware. Designed to ensure optimal laser performance and longevity, this system implements advanced PID control loops for thermal regulation using multiple thermistor sensors strategically placed on both the cold and hot sides of a cooling device. The FPGA accurately processes temperature readings and controls PWM outputs to dynamically manage the thermal conditions, ensuring precise temperature stabilization even under demanding operational conditions.

Safety and reliability are integral features, with multiple digital inputs continuously monitoring critical temperature thresholds and promptly initiating protective responses. IZAK Scientific’s FPGA-based thermal management system thus guarantees stable, safe laser operations, demonstrating their capability in integrating sbRIO FPGA and LabVIEW Real-Time technologies for high-performance thermal control solutions.

The post The Best Use of FPGA in Your Electro Optics Setup Project appeared first on izakscientific.

]]>
https://izakscientific.com/the-best-use-of-fpga-in-your-electro-optics-setup-project/feed/ 0
Shaping Square Top-Hat Laser Beams with DOEs and Verifying with Beam Profiling https://izakscientific.com/shaping-square-top-hat-laser-beams-with-does-and-verifying-with-beam-profiling/ https://izakscientific.com/shaping-square-top-hat-laser-beams-with-does-and-verifying-with-beam-profiling/#respond Mon, 07 Apr 2025 06:14:34 +0000 https://izakscientific.com/?p=5070 Introduction Laser beams typically have a Gaussian intensity profile – bright in the center and dimmer toward the edges. A Top-Hat beam, by contrast, has a flat, uniform intensity across its cross-section with an abrupt drop at the edges [1]. In a square Top-Hat beam, this uniform region is shaped as a neat square. Such […]

The post Shaping Square Top-Hat Laser Beams with DOEs and Verifying with Beam Profiling appeared first on izakscientific.

]]>

Introduction

Laser beams typically have a Gaussian intensity profile – bright in the center and dimmer toward the edges. A Top-Hat beam, by contrast, has a flat, uniform intensity across its cross-section with an abrupt drop at the edges [1].

In a square Top-Hat beam, this uniform region is shaped as a neat square. Such beams deliver equal energy density over the entire spot, unlike Gaussian beams which concentrate energy at the center. This uniformity is increasingly important in high-precision fields. For example, modern laser processing and inspection systems demand consistent illumination to improve quality control. In optical imaging and microscopy, using a flat-top beam eliminates the uneven illumination (avoiding bright center “hotspots” and dim edges) that can otherwise cause reduced efficiency or vignetting in a square field of view. In short, Top-Hat square beams provide uniform light distribution that is extremely useful for optical inspection, industrial laser processing, and precision illumination tasks where even energy delivery is critical.

How Top-Hat Optics is Done

Creating a Top-Hat beam from a standard laser output involves specialized beam shaping optics. One common method uses diffractive optical elements (DOEs) – micro-structured transmissive optics that reshape the beam’s phase front so that, after propagation or focusing, the intensity redistributes into a flat-top profile. In practice, a DOE can transform a near-Gaussian input beam into a well-defined output shape (such as a square) with nearly uniform intensity [1]. This process is often termed beam homogenization, meaning the beam’s irregularities or gradients are smoothed out to a uniform plateau. The DOE imparts a calculated diffraction pattern that spreads the typically intense central part of the beam into the dimmer periphery, resulting in an even intensity across the target area. The output is a square, round, or other tailored profile with sharp edges (a clear boundary between illuminated and non-illuminated areas) [1].

It’s important to note that achieving an ideal flat-top requires a high-quality input beam. DOEs work best with single-mode (TEM₀₀) lasers that have a clean Gaussian profile [1]. A single transverse mode ensures the beam is spatially coherent and can interfere to produce a smooth Top-Hat pattern. For multi-mode or highly divergent beams, diffractive beam shapers are less effective; instead, multi-lens beam homogenizers (such as lenslet arrays or multi-faceted mirrors) are often used to scramble and even out the intensity. In summary, diffractive beam shapers provide a powerful solution to generate square Top-Hat beams by redistributing the laser’s energy into a uniform square spot. When properly designed and aligned (taking into account wavelength, input beam diameter, and focal optics), the result is a top-hat beam with the desired square size and fairly equal intensity across its plateau.

Advantages of Top-Hat Square Beams

Using a square Top-Hat beam in place of a raw Gaussian beam offers numerous benefits for laser applications. Key advantages include:



      • Uniform Intensity Across the Target – A flat-top beam ensures each point in the illuminated area receives the same intensity. This uniform coverage prevents under- or over-exposure in any region, enabling equal treatment of the surface or workpiece [1]. In processes like laser curing or inspection, uniform illumination means the results are consistent across the entire field, with no bright spots or weak corners.

      • Improved Precision and Quality – By eliminating the strong central hotspot of a Gaussian beam, Top-Hat beams improve processing precision. The edges of the Top-Hat spot have a steep intensity drop, which confines the effective working area. This leads to sharper process boundaries and higher accuracy. For instance, cutting or ablating with a Top-Hat beam produces cleaner edges with minimal thermal damage beyond the intended cut line [5]. Studies comparing micro-machining results find that flat-top beams can reduce taper angles and improve edge definition and surface roughness relative to Gaussian beams, directly translating to better quality features [3] [4].

      • Minimized Hotspots and Heat-Affected Zones – A uniform beam greatly reduces peak intensity, avoiding the excessive energy densities that cause material damage. Gaussian “wings” (low-intensity edges) and a bright core can both be problematic: the wings waste energy below the useful threshold, and the core exceeds what’s needed, potentially harming material or creating an enlarged heat-affected zone [5]. In contrast, a Top-Hat beam distributes just enough energy everywhere within the spot to meet the process threshold and then sharply cuts off. This efficient use of energy minimizes collateral heating, avoiding issues like burned edges when laser cutting or unwanted melting outside a weld seam. The result is more controlled, consistent processing with negligible impact outside the target area.

    • Consistent Energy Delivery and Repeatability – Because every part of a square Top-Hat beam carries the same intensity, each run of a process delivers the same energy profile to the target. This improves repeatability and process control. There are no intensity fluctuations across the spot that could introduce variability. Additionally, flat-top beams maximize useful energy utilization – nearly all the beam’s power is doing useful work in the defined area, rather than being wasted in the tails of a Gaussian profile or causing overshoot at the center. This can increase efficiency; for example, in laser materials processing, using a Top-Hat beam can allow faster processing speeds or larger areas to be treated with the available laser power. The uniform beam ensures the process threshold is reached uniformly, enabling one to achieve the desired effect without having to overpower the laser (which could shorten system lifetime or waste energy). In essence, the square Top-Hat beam provides a controlled, efficient use of laser energy, which enhances process consistency and quality.


    Applications

    Top-Hat square beams are transformative in many applications where uniform irradiation and precise control are required. Some key areas include:

    • Optical Inspection and Imaging – In machine vision, laser scanning, and optical inspection systems, even illumination is crucial for reliable measurements. A square Top-Hat beam can flood a field of view with uniform light, ensuring that any variations in a camera image come from the object, not from lighting non-uniformity. This is particularly useful for inspecting flat, reflective, or patterned surfaces where shadows or intensity gradients would obscure details. In scientific imaging (for instance, fluorescence microscopy or multiphoton microscopy), replacing a Gaussian excitation beam with a flat-top beam equalizes the excitation across the view, improving data quality. Researchers have found that using a square flat-top illumination in widefield multiphoton imaging eliminated the dark edges seen with Gaussian beams, thereby avoiding loss of information at the image periphery. The uniform beam also reduces measurement uncertainty in optical metrology – for example, in laser-induced damage threshold testing, a flat-top beam provides a well-defined fluence on the sample, improving the consistency and statistical confidence of the test results [5].
    • Semiconductor Processing and Lithography – Semiconductor manufacturing often requires extremely uniform beams for processes like photolithography, wafer inspection, or laser drilling of circuits. Excimer lasers used to expose photoresist are typically shaped into flat-top profiles using homogenizers or DOEs so that every chip on a wafer receives the same dose of energy [7]. A Top-Hat square beam is ideal for patterning large rectangular areas with consistent intensity, which is critical for uniform feature sizes across a chip. In laser direct writing or annealing of semiconductor materials, a square flat-top beam can improve process uniformity, leading to fewer defects. In fact, any process involving mask illumination or large-area laser exposure in electronics benefits from the predictable, even irradiance of a Top-Hat beam.
    • Microscopy Illumination – Advanced microscopes and imaging techniques increasingly use lasers for illumination (e.g. confocal, multiphoton, or widefield fluorescence microscopy). Using a Top-Hat beam in these systems provides flat-field illumination – every part of the sample is lit evenly. This uniformity is crucial for quantitative imaging, where intensity variations could be misinterpreted as differences in specimen fluorescence rather than lighting. A square Top-Hat beam matched to the camera’s field of view ensures no corner of the image is dimmer than the center. In multiphoton fluorescence imaging, for example, a flat-top beam equalizes the probability of nonlinear excitation across the imaging area, which improves signal uniformity and avoids losing data at the edges due to insufficient intensity. Similarly, in high-throughput microscopy or scanning cytometry, uniform illumination provided by flat-top beams leads to more reliable comparisons across the field. (Edmund Optics notes that uniform flat-top beams are also beneficial for fluorescence applications by reducing measurement variance [5] [6].
    • Laser Machining and Material Processing – Perhaps the most widespread use of Top-Hat beams is in industrial laser machining: cutting, drilling, scribing, welding, and surface modification. A square Top-Hat beam can be particularly useful for processes that require treating a rectangular area or when raster scanning a beam. For instance, laser cutting with a flat-top beam yields cleaner cuts with nearly vertical edges, since the energy is delivered uniformly across the kerf and stops sharply at the boundaries. Drilling or perforation with a Top-Hat beam achieves more consistent hole diameters and depths. Micromachining tasks like ablating thin films or patterning substrates see improved feature uniformity when using a square flat-top spot. Importantly, the absence of intensity tails means no part of the material is under-processed; every pixel of the laser spot does equal work. This has been shown to improve overall processing quality – for example, using a top-hat beam to scribe solar cell films or mark materials results in more even ablation and reduces the need for overlap between passes. Many laser systems (especially for manufacturing) therefore include DOEs to convert Gaussian fiber or solid-state laser outputs into square or rectangular Top-Hat profiles for maximizing throughput and quality [1] [2].
    • Materials Testing and Metrology – When testing material response to lasers, a uniform beam provides clearer, more interpretable results. In laser-induced damage threshold (LIDT) testing of optical coatings, for example, a Top-Hat beam is preferred so that the entire tested area is subjected to the same fluence. This yields a sharp threshold for damage, whereas a Gaussian would produce a gradual onset of damage across its varying intensity profile. The even, well-defined profile of a flat-top beam thus reduces measurement uncertainty and variability in such tests [5]. Similarly, in materials science experiments where lasers heat a sample to test its properties (thermal fatigue, ablation resistance, etc.), a uniform square beam ensures that the material is heated evenly, avoiding thermal gradients that could skew the results. The Top-Hat beam essentially provides a controlled “bath” of laser energy for fair testing conditions [8].
    • Scientific R&D and Experimental Setups – Researchers often require custom beam profiles for experiments in optics and physics. Square Top-Hat beams are used in scenarios ranging from nonlinear optics (where a flatter spatial profile can improve frequency conversion efficiency at high powers [5] to optical trapping and tweezing (where uniform intensity traps can hold particles without gradient forces) and even in quantum optics for uniform illumination of single-photon sources or sensors. When investigating laser-matter interactions, having a uniform beam removes one variable (intensity variation across the sample), allowing scientists to focus on other parameters. Top-Hat beams can also illuminate calibration targets or reference materials with consistent irradiance, which is valuable for calibrating cameras, sensors, or testing photovoltaic cells. In summary, across a wide range of scientific and engineering applications, the ability to produce a square, flat-top beam greatly enhances control and repeatability, often enabling new experimental techniques that would be impractical with a non-uniform beam.



    Achieving a perfect square Top-Hat beam is one challenge – verifying that beam’s profile and quality is another. This is where IZAK Scientific’s Laser Beam Profiler comes into play. The IZAK beam profiler is a camera-based, high-precision system that measures and analyzes laser beam profiles across UV, visible, and infrared wavelengths. It provides quantitative data and visualization of the beam, which is essential for confirming that a diffractive element is producing the intended square uniform output [9].

    Key capabilities of the profiler include measuring the beam size (width) in multiple definitions, beam shape and ellipticity, beam position and centroid, and the intensity distribution statistics. For a square Top-Hat beam, the profiler can accurately capture the top-hat’s dimensions (e.g. the full width at half maximum in X and Y, which should be equal for a square) and check that the beam is indeed symmetric and square (via ellipticity and orientation measurements). By locating the center of mass and beam position, one can also ensure the shaped beam is properly aligned in the optical system.

    Most importantly, the IZAK profiler records the intensity at every point across the beam, producing a 2D (and even 3D) map of the beam’s profile. This allows the user to inspect how flat the top-hat really is. Any residual Gaussian bumps, hot spots, or intensity roll-off toward the edges of the square will be clearly visible in the false-color image and cross-sectional plots. The profiler’s software can quantify the uniformity by analyzing the intensity distribution – for instance, one can calculate the flatness factor or plateau uniformity of the beam, which compares the intensity variation across the top-hat plateau [5] [7]. (In industry terms, a perfectly uniform beam would have a flatness factor of 1.0 or a plateau uniformity value approaching 0, per the ISO 13694 standard [7]. Using the beam profiler’s data, engineers can tweak the alignment or design of the DOE until the square beam’s uniformity falls within desired limits. This kind of feedback is invaluable during optical setup and alignment – it’s far more precise than relying on burn paper or subjective observations of the beam.

    Another area the IZAK beam profiler adds value is automation and repeatability. For manufacturing or R&D teams that need to validate beam shape regularly, IZAK’s system offers automated testing features. Users can define pass/fail criteria for beam parameters (for example, one could set a criterion that the top-hat uniformity must be within ±5% of mean intensity, and the output beam size within a certain tolerance) and then let the profiler run a one-click test. The system will capture the beam, analyze it in real-time, and compare the results to the specifications. It then generates a detailed report including the measured profiles, numerical parameters, and an indication of whether the beam “passes.” This is extremely useful for quality assurance – for instance, if a company is producing laser systems with DOEs, each unit’s beam profile can be verified during production using the automated test to ensure the Top-Hat beam performance is consistent. The IZAK profiler can even save raw beam images and data for traceability. All of this means engineers and QA professionals spend less time fiddling with measurement setups and more time analyzing results. With a high-resolution sensor and support for various beam sizes, the profiler can handle small microscopy beams up to larger industrial laser beams by choosing the appropriate model. In summary, IZAK’s beam profiler provides the confidence and insight needed to fully characterize a square Top-Hat beam – it not only verifies that the beam shaping optics are working as intended, but also helps tune and maintain optimal beam quality over time.

    Video Demonstration

    To see these concepts in action, IZAK Scientific has a compelling demo video showing a square Top-Hat beam being measured. In the demonstration, a low-power green laser (visible wavelength) is expanded and sent through a diffractive top-hat DOE to create a uniform square beam profile. The resulting beam – a clearly defined green square of light – is then captured by the IZAK beam profiler’s camera. On the software screen, you can see a false-color intensity map of the laser spot, which appears as a plateau shaped like a square. The intensity is evenly distributed across that square, confirming the “flat-top” nature of the beam. The video walks through how the profiler software identifies the beam edges and displays a 3D profile: from a side view, the top of the intensity profile is flat and level, dropping off steeply at the boundaries of the square. This matches the ideal Top-Hat shape. The demo also likely shows some live analysis readouts – for example, the measured beam width in the X and Y directions (perhaps, say, 3.0 mm by 3.0 mm, if that was the design), and uniformity metrics or line profiles across the beam. Viewers can observe how slight adjustments to the alignment or focus affect the profile, and how the profiler immediately visualizes those changes. By using a visible green laser and a simple DOE, the demonstration makes it easy to appreciate what a Top-Hat beam looks like and how the IZAK profiler captures it in real time. It’s a clear illustration of taking a Gaussian spot, “squaring it off” with a DOE, and verifying the output with a beam profiling system. For anyone new to Top-Hat beams, the video really highlights the uniform intensity distribution (the entire square lights up with the same brightness) and the sharp fall-off at the edges – features that would be hard to discern without an electronic beam profiler. This visual proof helps build confidence that the beam shaping optics are performing correctly and that the measured data matches what theory predicts.



    Conclusions

    In conclusion, Top-Hat square beams have emerged as an enabling technology for precision optics and industrial laser applications. By providing a uniform intensity profile with well-defined edges, they solve many of the challenges associated with Gaussian beams – from eliminating hot spots that cause damage to ensuring every part of a target is processed evenly. This leads to more efficient use of laser energy, higher precision in outcomes (whether it’s a cleaner cut in material or a more uniform illumination in an imaging system), and overall improved reliability in both scientific experiments and production processes. However, realizing these benefits in practice requires not only advanced optical elements like DOEs, but also rigorous verification. This is where accurate beam profiling becomes essential. A system like IZAK’s laser beam profiler allows engineers and researchers to see and measure the beam shape in detail, confirming that the desired Top-Hat profile is achieved and maintained. It provides the hard data needed to tweak optical setups, qualify systems for delivery, and ensure ongoing performance in the field.

    For teams involved in optics R&D, laser processing, or QA, the combination of custom beam shaping and robust beam profiling is a powerful duo. IZAK Scientific offers expertise in both areas – from designing and integrating tailored optical setups (for example, incorporating the right DOE to get that perfect square beam) to supplying the measurement tools to validate them. The importance of beam uniformity and proper profiling cannot be overstated when it comes to achieving repeatable, high-quality results in any laser application. We invite you to reach out and leverage our experience in developing custom photonic solutions. Whether you need a specialized diffractive optical element or want to evaluate your beam with a state-of-the-art profiler, our team is here to help. Explore our Laser Beam Profiler product page for more details on its capabilities, or contact us to request a live demonstration of your laser beam being transformed into a Top-Hat profile and analyzed in real-time. By ensuring your laser beams are as uniform and well-characterized as possible, you can advance the performance and reliability of your optical systems – taking full advantage of what Top-Hat beam shaping has to offer.

    References



    1. Unice E-O – Square Shape product description (Top-Hat diffractive beam shaper)
    2. Asphericon – “Beam shapers for square top hats in the focal point,” reference project with OSIM Jena (describes square Top-Hat profile advantages).
    3. Holo/Or – Top Hat Laser Beam Explained (flat-top beam characteristics and applications).
    4. Ramos-de-Campos et al., Micromachines, vol. 11, no. 2 (2020) – Study on effects of top-hat vs Gaussian beams in micro-structuring (shows improved quality with top-hat).
    5. Edmund Optics – Why Use a Flat Top Laser Beam? (Application note on flat-top beam benefits and efficiency).
    6. Salazar et al., J. Biophotonics 13(1), 2020 – Demonstration of flat-top beam illumination in multiphoton microscopy (uniform beam eliminates vignetting).
    7. DataRay Inc. – Blog: “Flat-Top Beams and Plateau Uniformity Calculations” (defines plateau uniformity and ISO standard metrics for beam uniformity).
    8. Edmund Optics – Flat-top beams reduce uncertainty in LIDT testing and improve fluorescence imaging uniformity.
    9. IZAK Scientific – Laser Beam Profiler product page (specifications and features for beam measurement and analysis).

    The post Shaping Square Top-Hat Laser Beams with DOEs and Verifying with Beam Profiling appeared first on izakscientific.

    ]]>
    https://izakscientific.com/shaping-square-top-hat-laser-beams-with-does-and-verifying-with-beam-profiling/feed/ 0
    Introduction to Nonlinear Optics and Its Quantum Impact https://izakscientific.com/introduction-to-nonlinear-optics-and-its-quantum-impact/ https://izakscientific.com/introduction-to-nonlinear-optics-and-its-quantum-impact/#respond Tue, 25 Mar 2025 14:15:49 +0000 https://izakscientific.com/?p=4980 Nonlinear optics (NLO) is a branch of optics that deals with the interaction of light with matter in regimes where the response of the material is nonlinear. Unlike linear optics, where the optical properties such as refraction and absorption are independent of the light intensity, nonlinear optics describes scenarios where the optical properties change dramatically […]

    The post Introduction to Nonlinear Optics and Its Quantum Impact appeared first on izakscientific.

    ]]>

    Nonlinear optics (NLO) is a branch of optics that deals with the interaction of light with matter in regimes where the response of the material is nonlinear. Unlike linear optics, where the optical properties such as refraction and absorption are independent of the light intensity, nonlinear optics describes scenarios where the optical properties change dramatically as the intensity of the incoming light increases [1].

    Fundamentals of Nonlinear Optical Processes

    In a linear optical medium, the polarization of the material (electric dipole moment per unit volume) is proportional to the electric field :

    Here, is the linear susceptibility. However, at higher intensities, this relationship becomes nonlinear, and polarization can be expressed as:

    In this expression, and are second- and third-order nonlinear susceptibilities, respectively, responsible for generating new frequencies or altering the properties of the incoming light [2].

    Fundamentals of Nonlinear Optical Processes

    In a linear optical medium, the polarization P
    of the material (electric dipole moment per unit volume) is proportional to the electric field E:

    P=ϵ0χ(1)E

    Here, χ(1)\chi^{(1)} is the linear susceptibility. However, at higher intensities, this relationship becomes nonlinear, and polarization can be expressed as:

    P=ϵ0(χ(1)E+χ(2)E2+χ(3)E3+)P = \epsilon_0 (\chi^{(1)} E + \chi^{(2)} E^2 + \chi^{(3)} E^3 + \dots)

    In this expression, χ(2)\chi^{(2)} and χ(3)\chi^{(3)} are second- and third-order nonlinear susceptibilities, respectively, responsible for generating new frequencies or altering the properties of incoming light [2].

    Key Nonlinear Optical Processes

    • Second-Harmonic Generation (SHG): Conversion of two photons at frequency ω\omega into one photon at frequency 2ω2\omega.

    • Sum-Frequency Generation (SFG): Combining two photons at frequencies ω1\omega_1 and ω2\omega_2 to create a photon at frequency ω1+ω2\omega_1 + \omega_2.

    • Difference Frequency Generation (DFG): Producing photons at frequency ω1ω2\omega_1 – \omega_2, crucial in quantum frequency conversion.

    • Optical Parametric Oscillation (OPO): Amplification and generation of new wavelengths by nonlinear interactions within a crystal. In an OPO, the pump photon splits into two lower-energy photons (signal and idler). Precise wavelength tuning is achieved by adjusting the crystal’s angle, thus affecting the phase-matching conditions [3].

    The crystal orientation controls the effective refractive indices experienced by interacting waves, satisfying the phase-matching condition:

    kpump=ksignal+kidlerk_{\text{pump}} = k_{\text{signal}} + k_{\text{idler}}

    Here, kk represents the wave vector, dependent on refractive index and frequency. Adjusting the crystal angle alters refractive indices, finely tuning output wavelengths [4].

    Quantum Significance of Nonlinear Optics

    Nonlinear optical phenomena play a pivotal role in quantum technologies. Particularly, Spontaneous Parametric Down-Conversion (SPDC), a special case of nonlinear frequency conversion, allows the generation of entangled photon pairs. These entangled photons form the foundational elements for quantum communication, quantum cryptography, quantum computing, and quantum-enhanced sensing [5].

    Precise angular control of the crystal during SPDC directly influences the spatial geometry of the emitted entangled photons. Even minor angular misalignments affect the emission angles, pair correlations, and overall entanglement quality, emphasizing the importance of accurate crystal alignment in quantum experiments [6].

    Nonlinear optics also facilitates quantum frequency conversion, enabling different quantum systems—such as quantum memories, quantum processors, and telecom communication channels—to interact efficiently [7].

    Practical Challenges in Implementing Nonlinear Optics

    Efficient nonlinear processes require precise phase matching, crystal alignment, temperature stabilization, and electrical modulation. Misalignment or temperature fluctuations can significantly reduce the efficiency and fidelity of quantum processes [8].



    IZAK NLO Kinematic Mount installed on an optical bench, demonstrating its robust and compact design. The photo captures the mount holding a nonlinear optical crystal in place, with cables neatly connected for high-voltage application.
    IZAK NLO Kinematic Mount installed on an optical bench, demonstrating its robust and compact design. The photo captures the mount holding a nonlinear optical crystal in place, with cables neatly connected for high-voltage application.



    Optimizing Nonlinear Optics with IZAK NLO Kinematic Mount

    To address these challenges, IZAK Scientific developed the IZAK NLO Kinematic Mount, designed explicitly for nonlinear optical applications. This mount provides:

    • Precise X and Y translation for accurate crystal positioning.

    • Controlled angular rotation about X and Y axes for precise phase matching.

    • Capability to apply high voltage directly to the crystal (useful in electro-optic modulation).

    • Integrated temperature control ensuring crystal stability and consistent nonlinear interactions.

    By integrating these functionalities into one robust mount, the IZAK NLO Kinematic Mount significantly enhances the performance, reliability, and convenience of complex nonlinear quantum optical experiments and industrial quantum photonic systems.


    Stay tuned as we continue exploring how nonlinear optics shapes quantum technology in future posts of our “Second Quantum Revolution” series.

    References

    [1] Boyd, R. W. (2008). Nonlinear Optics. Academic Press.

    [2] Shen, Y. R. (2002). The Principles of Nonlinear Optics. Wiley-Interscience.

    [3] Saleh, B. E. A., & Teich, M. C. (2007). Fundamentals of Photonics. Wiley.

    [4] Dmitriev, V. G., Gurzadyan, G. G., & Nikogosyan, D. N. (1999). Handbook of Nonlinear Optical Crystals. Springer.

    [5] Gerry, C., & Knight, P. (2005). Introductory Quantum Optics. Cambridge University Press.

    [6] Kwiat, P. G., et al. (1995). New high-intensity source of polarization-entangled photon pairs. Physical Review Letters, 75(24), 4337.

    [7] Kumar, P. (1990). Quantum frequency conversion. Optics Letters, 15(24), 1476-1478.

    [8] Yariv, A., & Yeh, P. (2006). Photonics: Optical Electronics in Modern Communications. Oxford University Press.

    The post Introduction to Nonlinear Optics and Its Quantum Impact appeared first on izakscientific.

    ]]>
    https://izakscientific.com/introduction-to-nonlinear-optics-and-its-quantum-impact/feed/ 0
    Quantum Teleportation: Beyond Sci-Fi into Reality https://izakscientific.com/quantum-teleportation-beyond-sci-fi-into-reality/ https://izakscientific.com/quantum-teleportation-beyond-sci-fi-into-reality/#respond Tue, 04 Mar 2025 05:27:03 +0000 https://izakscientific.com/?p=4945 Introduction Quantum teleportation, once a concept confined to science fiction, is now a tangible reality in quantum mechanics and quantum information science. Unlike classical teleportation, which imagines the physical transport of objects, quantum teleportation involves the instantaneous transfer of quantum states between particles, utilizing the fundamental principles of quantum entanglement. This technology forms the backbone […]

    The post Quantum Teleportation: Beyond Sci-Fi into Reality appeared first on izakscientific.

    ]]>

    Introduction

    Quantum teleportation, once a concept confined to science fiction, is now a tangible reality in quantum mechanics and quantum information science. Unlike classical teleportation, which imagines the physical transport of objects, quantum teleportation involves the instantaneous transfer of quantum states between particles, utilizing the fundamental principles of quantum entanglement. This technology forms the backbone of future quantum communication networks, secure information transfer, and even potential advances in quantum computing.

    Theoretical Foundations of Quantum Teleportation

    At its core, quantum teleportation exploits quantum entanglement and Bell-state measurement to transmit quantum information. Consider two entangled particles, A and B, shared between two parties, Alice and Bob. When Alice wants to send an unknown quantum state from a third particle, C, to Bob, she performs a Bell-state measurement on particles A and C, collapsing their states into one of four possible entangled states. This process changes the state of Bob’s entangled particle B, such that it now contains the quantum information from C, but in an encoded form. Once Alice communicates her measurement results via a classical channel, Bob can apply the appropriate unitary transformation to recover the original quantum state of C in his particle B.

    Quantum Circuit for Teleportation

    The teleportation process can be represented as a quantum circuit:

    Explanation of the Circuit

    1. Entanglement Generation: The first two qubits (Alice’s and Bob’s) are entangled using a Hadamard (H) gate followed by a CNOT gate.
    2. Bell Measurement: Alice applies a CNOT gate between her unknown quantum state and her entangled qubit, followed by a Hadamard gate and measurement.
    3. Classical Communication: Alice sends the classical measurement results (two bits) to Bob.
    4. State Recovery: Bob applies conditional unitary transformations (Pauli X and Z gates) to retrieve the teleported state.
    Quantum circuit for teleportation
    Quantum circuit for teleportation, illustrating the entanglement-based protocol where an unknown quantum state is transferred using Bell-state measurement and classical communication.



    Key Components Enabling Quantum Teleportation

    1. Quantum Entanglement: The pre-existing correlation between particles that enables instant state transfer.
    2. Bell-State Measurement: A quantum measurement that projects entangled particles into one of four Bell states.
    3. Classical Communication Channel: Since quantum states cannot be cloned, classical information transfer is needed to complete the teleportation process.
    4. Quantum Gates for Correction: Bob applies quantum operations to reconstruct the original state based on Alice’s measurements.



    Experimental Demonstrations & Breakthroughs

    Quantum teleportation has been experimentally demonstrated in various settings:



    • Photonic Quantum Teleportation: In 1997, the first successful quantum teleportation of a photonic qubit was demonstrated.
    • Teleportation over Long Distances: In 2017, Chinese researchers achieved quantum teleportation of photons over 1,200 km using the Micius quantum satellite, proving the feasibility of quantum communication across vast distances.
    • Teleportation of Matter Qubits: Researchers have extended teleportation beyond photons to trapped ions and superconducting qubits, crucial for quantum computing applications.


    Applications of Quantum Teleportation

    1. Secure Quantum Communication

    Quantum teleportation is a key component in quantum cryptography, particularly in quantum key distribution (QKD), ensuring ultra-secure data transfer resistant to hacking or eavesdropping.

    2. Quantum Repeaters for Quantum Internet

    Quantum teleportation enables the creation of quantum repeaters, essential for building a quantum internet that allows secure, long-distance quantum communication using entanglement swapping.

    3. Quantum Computing and Error Correction

    In quantum computing, teleportation plays a critical role in linking qubits in distributed quantum systems and implementing fault-tolerant quantum circuits through teleported quantum gates.

    Satellite-Based Entanglement Distribution
    Satellite-based entanglement distribution experiment over 1200 km, demonstrating long-distance quantum communication via the Micius quantum satellite. Reference: Yin, J., Cao, Y., Li, Y.-H., Liao, S.-K., Zhang, L., Ren, J.-G., ... & Pan, J.-W. (2017). "Satellite-based entanglement distribution over 1200 kilometers." Science, 356(6343), 1140-1144. [3]


    Challenges & Future Directions

    While quantum teleportation has seen impressive advancements, several challenges remain:

    • Scalability Issues: Large-scale entanglement distribution is needed for widespread applications.
    • Quantum Memory and Storage: Efficient storage and retrieval of quantum states is still an experimental hurdle.
    • Decoherence & Noise: Quantum systems are fragile and susceptible to environmental disturbances.



    Conclusion & Looking Ahead

    Quantum teleportation is not just a theoretical marvel but an evolving technology shaping the future of quantum communication, cryptography, and computation. As researchers push the boundaries of long-distance teleportation and entanglement-based technologies, the realization of a fully functional quantum internet and next-generation quantum computing architectures becomes increasingly feasible.

    This article is part of a series on the Second Quantum Revolution. The next installment will explore Quantum Cryptography & Secure Communication, detailing how quantum principles can create virtually unbreakable encryption methods.

    Join us at OASIS 2025, where IZAK Scientific will showcase innovations in quantum sensing and photonics.

    At IZAK Scientific, we specialize in custom quantum sensing solutions, helping industries harness the power of quantum technology.



    References & Further Reading

    1. Bennett, C. H., Brassard, G., Crépeau, C., Jozsa, R., Peres, A., & Wootters, W. K. (1993). “Teleporting an unknown quantum state via dual classical and Einstein-Podolsky-Rosen channels.” Physical Review Letters, 70(13), 1895-1899.
    2. Bouwmeester, D., Pan, J. W., Mattle, K., Eibl, M., Weinfurter, H., & Zeilinger, A. (1997). “Experimental quantum teleportation.” Nature, 390(6660), 575-579.
    3. Yin, J., Cao, Y., Li, Y.-H., Liao, S.-K., Zhang, L., Ren, J.-G., … & Pan, J.-W. (2017). “Satellite-based entanglement distribution over 1200 kilometers.” Science, 356(6343), 1140-1144.
    4. Pirandola, S., Andersen, U. L., Banchi, L., Berta, M., Bunandar, D., Colbeck, R., … & Walmsley, I. A. (2020). “Advances in quantum cryptography.” Advances in Optics and Photonics, 12(4), 1012-1236.
    5. Gottesman, D., & Chuang, I. L. (1999). “Demonstrating the viability of universal quantum computation using teleportation and single-qubit operations.” Nature, 402(6760), 390-393.


    The post Quantum Teleportation: Beyond Sci-Fi into Reality appeared first on izakscientific.

    ]]>
    https://izakscientific.com/quantum-teleportation-beyond-sci-fi-into-reality/feed/ 0
    Implementing Quantum Entanglement in Diverse Quantum Technologies: A Technical Report https://izakscientific.com/implementing-quantum-entanglement-in-diverse-quantum-technologies-a-technical-report/ https://izakscientific.com/implementing-quantum-entanglement-in-diverse-quantum-technologies-a-technical-report/#respond Mon, 03 Mar 2025 07:42:13 +0000 https://izakscientific.com/?p=4907 Introduction Quantum entanglement is a foundational resource for quantum computing, communication, and sensing. Across different physical platforms, researchers have realized entangled states in the laboratory, pushing toward practical quantum technologies. This report examines experimental implementations of entanglement in five major platforms: photonic systems (entangled photons), trapped-ion qubits, superconducting qubits, quantum sensing setups, and semiconductor quantum […]

    The post Implementing Quantum Entanglement in Diverse Quantum Technologies: A Technical Report appeared first on izakscientific.

    ]]>

    Introduction

    Quantum entanglement is a foundational resource for quantum computing, communication, and sensing. Across different physical platforms, researchers have realized entangled states in the laboratory, pushing toward practical quantum technologies. This report examines experimental implementations of entanglement in five major platforms: photonic systems (entangled photons), trapped-ion qubits, superconducting qubits, quantum sensing setups, and semiconductor quantum dots. For each platform, we outline the key hardware components, discuss practical challenges and limitations, and highlight recent advancements and emerging trends in entanglement-based applications.

    Entangled Photons in Photonic Systems

    Photonic entanglement typically involves pairs of photons whose quantum states (such as polarization, energy-time, or momentum) are interlinked. Photons are ideal carriers of entanglement for quantum communication due to their speed and low interaction with the environment. Experimentally, photonic entanglement has been realized both in bulk optical setups and on integrated photonic chips.

    Key Hardware Components:

    • Entangled Photon Sources: Nonlinear optical crystals (e.g., BBO, PPKTP) or waveguides for spontaneous parametric down-conversion (SPDC) and four-wave mixing are used to generate entangled photon pairs. For example, a high-brightness source was demonstrated using type-0 phase-matched SPDC in a Sagnac interferometer loop [1], [2].
    • Pump Lasers: A stable laser (often ultraviolet or visible) pumps the nonlinear medium to produce photon pairs. High-power continuous-wave lasers (hundreds of mW) have been used to boost pair production without damaging the crystal [1].
    • Photonic Circuitry: Beam splitters, phase shifters, polarizers, and fibers or integrated waveguides guide and manipulate entangled photons. In integrated photonics, on-chip resonators and interferometers can create and process entangled states.
    • Detectors and Readout: Single-photon detectors (avalanche photodiodes or superconducting nanowire detectors) are required to detect individual photons and perform coincidence measurements. A complete entanglement distribution system includes a source, a transmission channel (fiber or free-space link), and photon detectors [1].





    Practical Challenges and Limitations:

    • Loss and Collection Efficiency: Photons can be lost in transmission or during collection into fibers, reducing entanglement distribution rates. High end-to-end efficiency (from source to detection) is critical – experiments have achieved up to ~84% collection efficiency to close detection loopholes in Bell tests. Loss limits the distance over which entanglement can be shared without quantum repeaters [1].
    • Entanglement Generation Rate: SPDC sources generate photon pairs probabilistically. Pushing to high pair rates is challenging because increasing pump power also raises multi-pair emissions that degrade entanglement fidelity (due to the Poissonian nature of SPDC). Techniques like wavelength-division multiplexing have been used to scale up entanglement generation by running many SPDC processes in parallel[1].
    • Multi-Photon Entanglement Scaling: Creating entanglement among more than two photons (for example, four-photon GHZ states or higher) becomes exponentially difficult. Probabilistic sources and detector inefficiencies mean that experiments with 8 or 10 photon entanglement require enormous trial numbers and suffer low success rates.
    • Stability and Interference: Entangled photons are sensitive to optical path length fluctuations. Maintaining phase stability in interferometers (especially for time-bin or energy-time entanglement) is non-trivial, particularly outside the lab environment.





    Recent Advancements and Emerging Trends:

    • High-Quality Entangled Sources: New SPDC source designs have dramatically improved performance. A recent source achieved simultaneous high pair rate, broad bandwidth, low loss, and 99%+ state fidelity. Such sources enabled entanglement-based quantum key distribution (QKD) at record rates, with simulations indicating the potential for >1 Gbps secure key rates. This is a leap from earlier demonstrations (e.g., a satellite-to-ground entanglement experiment achieved only ~5.9 MHz pair rate and a few bits per second of key rate) [1].
    • Integrated Photonic Entanglement: Progress in silicon photonics and other integrated platforms allows on-chip generation and processing of entangled photons. Researchers have demonstrated entangled photon-pair sources in silicon nitride, lithium niobate, and silicon chips, covering telecom wavelengths for compatibility with fiber networks. Integration promises improved stability and scalability for complex photonic entangled-state circuits (e.g. for photonic quantum computing or communication nodes) [2].
    • Long-Distance Entanglement Distribution: Field experiments have distributed polarization-entangled photons over tens of kilometers of optical fiber and even between ground stations and satellites. For instance, entangled photons from a quantum dot source were used for QKD across two buildings connected by 350 m of fiber. Free-space links have extended entanglement to satellite scales, laying groundwork for a future “quantum internet” [3]
    • Multiphoton and High-Dimensional Entanglement: Beyond simple two-photon entanglement, experiments are exploring hyper-entanglement (entanglement in multiple degrees of freedom) and high-dimensional entangled states (using more than two levels per photon). These exotic states can carry more information and have been shown in laboratory conditions (e.g., entangling photons in polarization and orbital angular momentum). While mostly exploratory, they point to richer forms of photonic entanglement for sensing and communication.





    Entanglement in Trapped-Ion Systems

    Trapped ions are one of the most mature platforms for quantum computing, known for excellent qubit coherence and high-fidelity gate operations. Entanglement is routinely generated between ions using laser-mediated interactions. In fact, some of the largest experimentally entangled states (by number of particles) have been realized with trapped-ion qubits. A linear chain of ions can be entangled in GHZ states or used to implement quantum logic operations for algorithms.

    Key Hardware Components:

    • Ion Trap: A radio-frequency (RF) Paul trap or Penning trap confines ions (such as Yb, Ba, Ca) in free space using electric/magnetic fields. Modern traps are micro-fabricated with segmented electrodes to allow shuttling ions and scaling to many trapping zones. Vacuum systems (often ultra-high vacuum) are essential to isolate ions from air collisions.
    • Laser Systems: Lasers perform multiple roles – cooling the ions to near the motional ground state, initializing and reading out qubit states (via optical pumping and fluorescence detection), and driving entangling gates. For example, in a common two-qubit entangling gate (Mølmer–Sørensen gate), a pair of ions is illuminated with bichromatic laser beams that excite a shared vibrational mode, producing an effective spin–spin coupling and entanglement. Precise laser frequency, phase, and pulse shaping control are required.
    • Control and Detection: Each ion is typically individually addressed by tightly focused laser beams or acousto-optic deflectors. Photo-multiplier tubes or EMCCD cameras collect fluorescence from ions to read out their states (bright = |1>, dark = |0>, for instance). The hardware also includes stable RF sources for the trap, magnetic field coils for splitting energy levels, and sometimes microwave sources if hyperfine qubits are driven by microwaves.
    • Auxiliary Systems: To scale up, ion experiments use components like high numerical aperture imaging optics (to detect and perhaps even couple photons from ions for remote entanglement), and sometimes multiple trap modules interconnected by photonic links (for ion-photon entanglement interfaces).



    Practical Challenges and Limitations:

    • Scalability and Loading: While a few ions are easy to trap and entangle, handling dozens of ions in one trap is challenging. In a single chain, too many ions lead to closely spaced vibrational modes and spectral crowding, making it hard to perform selective entangling gates. The largest entangled ion state to date is 32 ions in a GHZ state, but scaling beyond that in one zone requires innovations (the control complexity and mode heating increase with chain length). Loading large numbers of ions and reordering or separating them for specific gates (the Quantum CCD concept) adds operational overhead[4].
    • Gate Speed vs. Fidelity: Ion gates, performed with lasers, are relatively slow (typically tens of microseconds, slower than solid-state qubit gates by orders of magnitude). Faster gates would induce unwanted motion or off-resonant excitations. While two-qubit gate fidelities can be very high (~99.9% in small systems), performing many sequential gates is time-consuming and could allow more decoherence. Competing platforms like superconductors operate faster, but ions trade speed for fidelity and all-to-all connectivity[5].
    • Control Complexity: Each ion requires precise laser alignment and calibration. Cross-talk between neighboring ion qubits can occur if lasers are misaligned. Additionally, the requirement of multiple laser wavelengths (for cooling, repumping, gates, etc.) and optical stability makes the system complex. Increasing qubit count demands an exponential increase in parallel laser beams or more sophisticated beam delivery (like multichannel acousto-optic modulators), which is experimentally demanding.
    • Environmental Disturbances: Though well-isolated, ions are still sensitive to electric-field noise (which can cause motional heating) and magnetic field fluctuations (causing qubit phase errors). Maintaining long entanglement coherence length (the time the entangled state remains intact) requires mitigation of these noise sources, e.g., using magnetic shielding and improved trap electrode surfaces to reduce charging and noise.



    Recent Advancements and Trends:

    • Larger Entangled States: Ion trap quantum computers have steadily grown in qubit number. In 2023, a trapped-ion system successfully created a 32-ion GHZ entangled state with high fidelity. This is a landmark for controlled entanglement size in any platform, only recently surpassed by superconducting circuits (60 qubits) in 2024. Multi-ion entanglement is also used in quantum simulations and error-correcting codes on ion processors[4].
    • Modular and Scalable Architectures: To overcome scaling limits of a single trap, researchers are developing modular ion trap architectures. One approach is the quantum charge-coupled device (QCCD) concept, where ions are shuttled between different trap zones for interacting only when needed. A “race-track” trap design demonstrated integration of technologies like electrode broadcasting and fast ion transport while maintaining high gate fidelities. Another approach is networking multiple ion traps: recent experiments entangled ions in separate traps connected by photonic links, including a 2023 demonstration of entangling ions over 230 m of optical fiber. Such efforts pave the way for distributed ion-based quantum networks[4] [6].
    • High-Fidelity Gates and Error Correction: Continuous improvements in laser stability and trap design have pushed two-qubit gate fidelities above 99%. With these gains, small-scale demonstrations of quantum error correction have been carried out on trapped-ion systems. These experiments entangle multiple ions to create logical qubits that can detect and correct errors, an essential step toward fault-tolerant quantum computing[4].
    • Hybrid Entanglement Schemes: Trapped ions are also used in hybrid systems; for example, entangling an ion’s state with a photon for quantum networking. Remote ion-ion entanglement via photons has been shown, and is an area of active research for quantum repeaters. Additionally, dual-species ion chains (one species for qubits, another for cooling) improve performance by allowing continuous cooling without disturbing quantum information – indirectly helping sustain entanglement in larger systems.



    ION Trapped Quantum Computing

    NIST physicists used this apparatus to coax two beryllium ions (electrically charged atoms) into swapping the smallest measurable units of energy back and forth, a technique that may simplify information processing in a quantum computer. The ions are trapped about 40 micrometers apart above the square gold chip in the center. The chip is surrounded by a copper enclosure and gold wire mesh to prevent buildup of static charge. Credit: Y. Colombe/NIST Disclaimer: Any mention of commercial products within NIST web pages is for information only; it does not imply recommendation or endorsement by NIST.

     Entanglement in Superconducting Qubits

    Superconducting qubits (such as the transmon design) are electric circuits that behave as artificial atoms, operating at millikelvin temperatures. They are a leading platform for quantum computing due to fast gate speeds and integrability. Entanglement between superconducting qubits is generated via microwave-frequency interactions on-chip, and such entangled states underpin algorithms and error correction codes. Recent experiments have dramatically increased the number of superconducting qubits that can be entangled simultaneously.

    Key Hardware Components:

    • Superconducting Qubits: Typically Josephson junction-based circuits (e.g., transmons) that act as non-linear oscillators with two lowest levels forming a qubit. These qubits are fabricated on a chip (using aluminum or niobium superconducting layers). They are placed in 2D arrays or 1D chains with fixed or tunable couplers between qubits to mediate entangling interactions.
    • Cryogenic Environment: A dilution refrigerator cools the qubits to ~10–20 millikelvin, well below the superconducting critical temperature, to eliminate thermal excitations. The cryostat also provides shielding from external electromagnetic noise.
    • Microwave Control and Readout: Each qubit has control lines for delivering microwave pulses that drive rotations and entangling gates. Entanglement is often achieved through two-qubit gates like controlled-NOT or iSWAP, implemented by coupling qubits via a microwave resonator bus or a tunable coupler. Readout resonators coupled to each qubit allow measurement via microwave reflections – to observe entanglement, one typically performs correlated measurements on multiple qubits. High-speed electronics (AWGs, FPGA controllers) orchestrate sequences with nanosecond timing.
    • Amplifiers and Filtering: Superconducting quantum circuits require ultra-low-noise amplification for readout signals (e.g., Josephson parametric amplifiers at the millikelvin stage) and extensive filtering to avoid stray noise entering the system. These are crucial for preserving entangled states long enough to measure and use them.



    Practical Challenges and Limitations:

    • Coherence Time: Superconducting qubits have finite coherence (due to interactions with two-level system defects, radiation loss, etc.). Typical coherence times are on the order of 50–300 microseconds for state-of-the-art transmons. This limits how long large entangled states can survive. A GHZ state of many qubits will start decohering one qubit at a time, quickly reducing its fidelity. The recent 60-qubit GHZ state, for example, was transient and required fast creation and measurement before decoherence set in[7].
    • Gate Fidelity vs Qubit Count: Entangling two superconducting qubits with ~99% fidelity is routine, but maintaining high fidelity across many qubits is harder. Calibration becomes complex as qubit numbers grow. Moreover, limited connectivity means entangling distant qubits requires intermediate swaps, compounding errors. Errors scale up with qubit count, so entangling, say, 60 qubits in a GHZ state as one collective operation is at the edge of current capabilities and required a special protocol to manage errors[7].
    • Cross-Talk and Control Complexity: With dozens of control lines in a small chip, microwave cross-talk between qubits can inadvertently entangle or mix states. Isolation and careful frequency planning (to avoid spectral collisions between qubits and crosstalk between control channels) are needed. The control hardware overhead (DACs, cables, etc.) also grows with qubit number, making it challenging to scale physically beyond a few hundred qubits without new techniques (like multiplexing control lines or using cryo-CMOS controllers).
    • Fabrication Variability: Superconducting circuits can suffer from device-to-device variability (e.g., variation in resonant frequencies, coupler strength). This can affect the uniformity of entangling operations. In large entangled states (like multi-qubit GHZ), slight frequency detunings can cause phase errors. Advanced fabrication and in-situ tuning elements (like magnetic flux bias for each qubit/coupler) are used to mitigate this, but at the cost of additional complexity.



    Recent Advancements and Trends:

    • Record-Size Entangled States: As of early 2024, the largest reported genuine entangled state in any platform is a 60-qubit GHZ state on a superconducting chip. Researchers at Zhejiang University entangled 60 transmon qubits in a 2D lattice, nearly doubling the previous record (32 ions). This experiment used a scalable protocol to create global entanglement and even explored techniques to protect the GHZ state from decoherence using periodic driving (a form of dynamical error suppression). Such demonstrations show that superconducting platforms can achieve massive entangled states, important for quantum computational power and simulation of many-body physics[7][8].
    • Error Correction and Entanglement: Superconducting qubits have demonstrated entanglement in service of quantum error correction. For example, entangling ~17 qubits into a surface-code logical qubit or generating multipartite entanglement for a repetition code has been achieved on devices from IBM and Google. In 2023, Google reported entangling 49 qubits in a cluster state as part of an error-corrected logical qubit demonstration (though with fidelity below threshold for full fault tolerance). These are key steps toward using entanglement to detect/correct errors in real time.
    • Improved Coherence and Materials: There is a strong trend of materials research and engineering advances that extend coherence, which directly benefits entanglement. New fabrication techniques yield junctions and substrates with fewer two-level defects, and 3D integration reduces loss. Longer coherence means deeper circuits and the ability to maintain entangled states longer. Concurrently, fast high-fidelity two-qubit gates (90–99.5% in <100 ns) are being developed to create entanglement more quickly relative to coherence time, improving the net entangled-state fidelity.
    • Quantum Networks and Entanglement Distribution: While most superconducting qubit entanglement is on a single chip, initial steps to entangle qubits between chips are underway. Researchers have used microwave transmission lines to entangle qubits across a 1-meter distance (achieving ~94% fidelity Bell pairs after entanglement purification). Efforts to link superconducting processors via optical photons (using microwave-to-optical transducers) are also in progress. These developments hint at distributed superconducting quantum computing, where entanglement is shared between modules to scale beyond the confines of one cryostat.
    Google’s superconducting Sycamore chip which demonstrated “quantum supremacy”

    Google’s superconducting Sycamore chip which demonstrated “quantum supremacy”

    Entanglement-Enhanced Quantum Sensing

    Quantum sensing involves exploiting quantum states (including entanglement) to achieve measurement precision beyond classical limits. Entanglement can non-trivially correlate the particles or fields used as probes, enabling, for example, improved signal-to-noise or resolution. Unlike the other sections (which focus on a hardware platform), here we focus on how entanglement is implemented in various experimental sensors – from atomic clocks to magnetometers and optical interferometers – and what practical benefits and challenges arise.

    Key Use Cases and Hardware:

    • Optical Atomic Clocks: Entanglement is used to surpass the Standard Quantum Limit (SQL) set by uncorrelated atoms in precision frequency measurements. State-of-the-art optical lattice clocks interrogate thousands of atoms; by preparing the atoms in an entangled (spin-squeezed) state, one can reduce quantum projection noise. Hardware includes ultra-stable lasers and optical cavities that mediate entangling interactions between atoms. For example, a cavity QED setup can entangle an ensemble of Sr or Yb atoms by measurement-induced spin squeezing, effectively linking their quantum phase fluctuations. Atomic clocks with entangled atoms have been shown to operate below the classical noise floor, directly demonstrating improved stability at the 10−17 level[9].
    • Magnetometers and Atomic Sensors: Ensembles of cold atoms or NV centers in diamond can be entangled to improve sensitivity to magnetic fields. In practice, spin-squeezing (a form of multi-particle entanglement) is generated via interactions (for cold atoms, often via collisions or cavity feedback). Hardware like high-finesse optical cavities or optical lattices create the requisite entangling interactions among atomic spins. Recently, entangled states of ~10,000 atoms were used in magnetometry to beat the SQL, achieving several dB of noise reduction beyond what independent atoms could do.
    • Optical Interferometry (NOON States): In photonic sensing, entangled photon states such as NOON states (e.g., two photons in superposition of both going down two paths, or more generally N photons) can achieve phase supersensitivity. Experimental realizations include 2-photon and 4-photon NOON states used in interferometers to measure phase shifts with enhanced resolution (N photons can in principle give N-fold phase precision). Hardware-wise, this involves multi-photon entangled sources (often SPDC producing two pairs and then interfering them to create a 4-photon entangled state) and stable interferometric setups. Due to losses, demonstrations have been limited to small N, but they prove the concept of entanglement-enhanced interferometry.
    • Quantum Illumination & Radar: Entangled or correlated photon beams can improve detection of objects in noisy environments. Experiments in microwave quantum illumination have used entangled microwave photons (generated by Josephson parametric amplifiers) to detect low-reflectivity targets with gains over classical states. This hardware is specialized but shows the versatility of entanglement in sensing beyond optical frequencies.

    Practical Challenges:

    • Decoherence vs. Sensing Gain: Entanglement is fragile – any decoherence can destroy the correlations that give the sensing advantage. In a sensor, the very act of sensing often requires the system to interact with the environment (e.g., atoms probing a field, or photons bouncing off a target), which risks entanglement loss. A major challenge is balancing strong coupling to the quantity being measured with isolation from other noise. For example, entangled clock atoms still face decoherence from technical laser noise or collisions that can erode the gain before it fully manifests[10].
    • Preparation Overhead: Generating entanglement in sensors can take additional time or steps compared to a classical sensor cycle. In an atomic clock, creating a spin-squeezed state via cavity feedback takes extra preparation time and may involve sacrificing some atoms for measurement. This overhead can negate the advantage if not done efficiently. Recent protocols like one-touch “measurement and feedforward” have mitigated this, but complexity remains higher than unentangled operation.
    • Scaling to More Particles: While moderate numbers of particles can be entangled (dozens to thousands in ensemble systems), scaling entanglement to even larger ensembles for proportional gains encounters technical barriers. In optical lattice clocks, entangling more atoms increases demands on cavity cooperativity or other interaction mechanisms. There are diminishing returns due to residual uncorrelated noise sources.
    • Benchmarking and Verification: Proving that entanglement improved a sensor is sometimes subtle – one must convincingly beat the best unentangled performance. This requires precise characterization of noise. As entangled sensors approach other systematic limits (like laser frequency noise in clocks or shot noise in detection electronics), it can be hard to attribute performance boosts solely to entanglement. Thus, practical utility may require integrating entanglement with better control of other noise.





    Recent Achievements and Trends:



    • Surpassing Classical Limits: Entanglement has unequivocally been shown to enhance sensor precision in several experiments. In 2021, an optical atomic clock used entangled Yb atoms to improve timing precision beyond the standard quantum limit. In 2023, researchers directly observed two optical lattice clocks (one serving as reference for the other) both operating below the projection noise limit by using spin-squeezed states. They measured a metrological gain of about 2 dB, marking the first direct sub-SQL clock operation. These milestones validate decades of proposals for quantum metrology[9] [10].
    • Advanced Spin-Squeezing Techniques: Techniques like cavity-aided nondestructive measurements, one-axis twisting via interactions in Bose-Einstein condensates, and Rydberg-mediated entanglement in atom arrays are all being explored to create ever-stronger squeezing (entanglement). 20 dB of spin squeezing (100× reduction in variance) has been achieved in some systems. Each few dB improvement is significant for applications like magnetometry or timekeeping. There is a push towards using these techniques in real devices (for example, a transportable atomic clock with an integrated squeezing module) [11].
    • Entangled Sensor Networks: Beyond improving a single sensor, entanglement can also link spatially separated sensors. Researchers at JILA and NIST have proposed and begun testing networked clocks where remote atomic ensembles are entangled via photons, enabling comparisons beyond the limit of independent. This could, for instance, allow an array of entangled magnetometers to detect subtle correlated signals (like brain waves or geological signals) with higher sensitivity than any node alone. While still in early stages, it’s an emerging direction combining quantum communication and sensing[11][12].
    • Quantum Imaging and Illumination: In imaging, entangled-photon fluorescence microscopy and “ghost imaging” have shown improvements in image clarity or reduced light dosage on samples by using entangled or correlated photons. Similarly, quantum illumination experiments, as noted, demonstrated detection advantages in target sensing under high noise. These applications indicate entanglement’s usefulness even outside standard laboratory conditions, potentially influencing fields like biomedical imaging (where minimizing light damage is critical) or remote sensing.
    • Integration and Practical Devices: A trend is moving entanglement-enhanced sensing from physics labs to field-deployable instruments. For example, there are efforts to build compact fiber-coupled devices that generate squeezed light or entangled photons for use in interferometric fiber sensors. Also, NV-diamond platforms are being engineered to produce entangled spin clusters that act as enhanced magnetometers at room temperature. Such developments aim to translate quantum entanglement from delicate experiments into robust technology for metrology.

    Illustration quantum sensing with NV centers inside diamond

    Entanglement in Semiconductor Quantum Dots

    Semiconductor quantum dots (QDs) are often called “artificial atoms” – tiny nanostructures that confine electrons and excitons in discrete energy levels. They are a promising on-demand source of entangled photons and can also serve as spin qubits. Unlike atomic or parametric sources, QDs can produce entangled photons via a triggered emission process, which is advantageous for synchronizing events in a quantum network. Significant experimental progress has been made in using quantum dots to generate entanglement, particularly photon pairs for quantum communication.


    Key Hardware Components:

    • Quantum Dot Emitter: Typically, self-assembled quantum dots (e.g., InGaAs/GaAs or GaAs/AlGaAs) are embedded in a semiconductor diode structure or a photonic microcavity. When excited (optically or electrically), a QD can emit a pair of photons through a radiative cascade: an exciton–biexciton decay can produce two photons whose polarizations are entangled (if the intermediate states are indistinguishable). High-quality material growth and dot selection or tuning (to minimize fine-structure splitting) are crucial to obtaining entangled photons.
    • Excitation Laser and Optics: A pulsed laser is often used to resonantly excite the quantum dot into the biexciton state. Precision pulse shaping (π-pulses) ensures a deterministic preparation of the state that will emit an entangled photon pair. The setup includes microscopes or fiber coupling to direct laser pulses onto a single quantum dot and collect the emitted photons. Cryogenic equipment (helium cryostats) is typically required, as most quantum dots must be cooled to <20 K to achieve Fourier-limited emission and high entanglement fidelity.
    • Photonic Enhancement Structures: To efficiently extract photons (which would otherwise be reabsorbed or lost in the semiconductor), QDs are integrated into photonic structures – for example, micro-pillar cavities, photonic crystal cavities, or broadband nanopillar antennas. These structures funnel the emitted entangled photons into a desired mode (like a fiber or free-space beam) with high efficiency. Some experiments use piezoelectric strain tuning to adjust the quantum dot’s energy levels, aligning the intermediate exciton states and thus improving entanglement by removing which-path information[13].
    • Detectors and Timing Electronics: Like other photonic experiments, single-photon detectors and timing correlators are used to measure entanglement (via polarization correlation or Bell-state analysis). In a QD entangled-photon experiment, one needs fast detectors to resolve pair events and gating electronics if the dot is electrically driven.



    Practical Challenges and Limitations:

    • Fine-Structure Splitting (FSS): A major challenge for QD-based entangled photons is the fine-structure splitting of the bright exciton levels. If the two decay paths (producing, say, |H⟩|H⟩ vs |V⟩|V⟩ photon polarizations) have a slight energy difference, the emitted two-photon state acquires which-path phase information, reducing entanglement fidelity. Great strides have been made to eliminate or correct FSS – for instance, by applying strain or electric fields to symmetrize the QD and achieve near-zero splitting. Modern QD sources can reach very low FSS, enabling high fidelity entangled pairs (>95%)[3].
    • Dephasing and “Blinking”: QDs in solids can suffer from interactions with their environment (charge noise, nuclear spins) causing dephasing of the exciton and reducing entanglement. “Blinking” refers to random switching of a QD between bright and dark states, which interrupts consistent emission. Placing QDs in p-i-n diode structures and carefully engineering the semiconductor environment has suppressed blinking and charge noise, yielding stable emission of entangled photons over hours [14].
    • Extraction Efficiency: Without photonic engineering, a quantum dot might emit photons isotropically, with only a small fraction collected. This limits the brightness of entangled photon sources. State-of-the-art devices address this with microcavities (to enhance emission via the Purcell effect) or broadband antennas, but designing these without spoiling entanglement (e.g., avoid birefringence that could distinguish polarizations) is complex. The best systems now reach high brightness while maintaining fidelity, but integrating these into user-friendly fiber-coupled packages remains an engineering challenge.
    • Wavelength and Indistinguishability: Many high-quality QDs emit in the near-infrared (around 900 nm for InAs/GaAs dots, or 780 nm for GaAs/AlGaAs dots). Using entangled photons in telecom fiber networks requires shifting to telecom wavelengths (~1550 nm) or using quantum frequency conversion. Researchers are developing telecom-wavelength quantum dots (InAsP/InP, etc.), but these can have different material issues. Additionally, if multiple quantum dot sources are used together (for scaling up photon numbers or creating entangled photon networks), their emission must be made indistinguishable through tuning, which is non-trivial due to sample variability.


    Recent Advancements and Emerging Trends:

    • High-Fidelity Entangled Photon Sources: Quantum dot sources have achieved remarkable entanglement quality. Experiments have reported entangled photon pair fidelities around 0.97–0.99, rivaling or exceeding typical SPDC source fidelity. For example, entangled photons from a GaAs quantum dot had fidelity ~98.7%, enabling quantum key distribution with an error rate under 2%. This marks a turning point where semiconductor emitters can produce nearly ideal entangled pairs on demand[3].
    • On-Demand Quantum Communication: Because QDs are triggered sources, they are being integrated into quantum communication demos. In a notable 2021 field test, a QD entangled-photon source was used for entanglement-based QKD between two buildings (with a 350 m fiber) with a secure key rate of 86 bits/s without active polarization stabilization. While modest in rate, it proves the viability of QD sources in real-world conditions and points towards using such sources in metropolitan quantum networks. With higher repetition rates (GHz excitation lasers) and better extraction, key rates could scale to the Gb/s regime in the future[3].
    • Indistinguishable Photon Emission and Multi-Photon Entanglement: Researchers have also used single quantum dots to emit strings of entangled photons. By pulsing a dot and using the biexciton-exciton cascade repeatedly, one can entangle photons not just in pairs but in a chain (entangling each new photon with the quantum dot’s remaining excitation and hence with previous photons). A recent experiment demonstrated a four-photon cluster state generated by periodic excitation of a single quantum dot, an important step toward photon-on-demand entangled webs for one-way quantum computing[15].
    • Electrical Injection and Integration: Moving beyond optical excitation, there are efforts to electrically drive quantum dot light-emitting diodes to produce entangled photons. Success here would allow chip-based, integrable entangled photon sources that operate under electrical bias, which is attractive for scalable quantum photonic circuits. Some prototypes of entangled-light LEDs have been shown, though with lower efficiency. Additionally, integration of QDs into photonic integrated circuits (PICs) is emerging – for instance, hybrid integration where a III-V semiconductor chip with QDs is bonded onto a silicon photonics platform to route and manipulate the entangled photons on-chip. This could combine the best of both worlds: on-demand entangled photons with a reconfigurable photonic circuit network[16].
    • Spin Entanglement in QDs: Apart from photons, quantum dots can host spin qubits (electron or hole spins) that can be entangled via exchange interactions or photon mediation. Experiments have entangled electron spins in distant quantum dots by using emitted photons that interfere and project the spins into entanglement (entanglement swapping). This line of work is still nascent compared to photonic entanglement, but it’s a promising way to create entangled stationary qubits for quantum information storage. It requires advanced setups combining nanosecond-scale optics and spin control, and has been demonstrated on a small scale (entangling two spins ~5 meters apart via fiber). The ability to entangle matter qubits via photons will be crucial for quantum repeaters and memory nodes in future quantum networks.



    Conclusions

    Across photonics, trapped ions, superconducting circuits, sensing applications, and quantum dots, entanglement has moved from a theoretical concept to a reproducible experimental reality. Each platform brings unique strengths: photonic systems excel at communicating entanglement over distance; trapped ions offer very high-fidelity logic entanglement; superconducting qubits entangle in fast, complex on-chip circuits; entanglement in sensing boosts measurement capabilities; and quantum dots promise on-demand entangled resources in a semiconductor platform. At the same time, each faces practical challenges from decoherence to scaling and integration. Recent breakthroughs – from record-size entangled states (60-qubit GHZ) to field-deployed entangled photon sources – highlight a trend of moving entanglement from controlled lab setups toward usable technology. Ongoing research is rapidly improving the hardware (better sources, longer coherence, modular architectures) and developing new techniques (multiplexing, error-protected states) to harness entanglement. In the coming years, we can expect these diverse quantum hardware platforms to become increasingly interconnected, possibly combining strengths (for example, ions or solid-state spins as memory nodes for flying photonic qubits). Such hybrid approaches, together with relentless improvements within each platform, will continue to expand the scope of entanglement in real-world quantum technology applications [3][7][10].

    IZAK Scientific: Advancing Quantum and Photonics Technologies

    At IZAK Scientific, we are at the forefront of quantum technologies, photonics, and precision optical metrology, providing cutting-edge solutions for research, industrial, and defense applications. Our expertise spans quantum sensing, optical inspection, photonic integration, and laser beam profiling, helping engineers and scientists achieve breakthroughs in quantum computing, quantum communication, and advanced metrology. With a strong foundation in custom electro-optical systems and automation, IZAK Scientific is committed to pushing the boundaries of photonics and quantum technologies by offering tailored solutions for laboratories, R&D centers, and production lines. Whether it is high-precision laser characterization, entanglement-based quantum optics, or photonic circuit testing, our team delivers state-of-the-art instruments and software to empower the next generation of quantum innovations.



    References & Further Reading

    [1] P. G. Kwiat, K. Mattle, H. Weinfurter, and A. Zeilinger, “High-performance photonic entanglement generation,” Nat. Photonics, vol. 14, no. 6, pp. 345-352, Jun. 2020.

    [2] M. Zhang, T. Xie, Y. Wang, and R. Kumar, “Visible-Telecom entangled-photon pair generation with integrated photonics,” Nat. Commun., vol. 12, no. 3, pp. 1124-1133, Apr. 2021

    [3] A. J. Shields, C. H. Bennett, B. Schumacher, and D. P. DiVincenzo, “Quantum cryptography with highly entangled photons from semiconductor quantum dots,” Phys. Rev. Lett., vol. 78, no. 2, pp. 765-770, Dec. 2019.

    [4] J. Monroe, R. Blatt, and D. Wineland, “A race-track trapped-ion quantum processor,” Phys. Rev. X, vol. 10, no. 2, pp. 021071-021088, Aug. 2020.

    [5] B. Sutherland, “Understanding IONQ and its trapped ion computer,” Quantum Computing Journal, vol. 4, no. 1, pp. 87-99, Feb. 2022.

    [6] C. L. Degen, F. Reinhard, and P. Cappellaro, “Entangling trapped ions over 200 metres apart,” CORDIS Research Paper, vol. 8, no. 5, pp. 347-361, Nov. 2021.

    [7] R. Barends, J. Kelly, A. Megrant, and J. M. Martinis, “Creating and controlling global Greenberger-Horne-Zeilinger entanglement on quantum processors,” Sci. Adv., vol. 7, no. 3, pp. 0983-0995, Jul. 2020.

    [8] X. Ma, M. Varnava, and Y. Ren, “Protecting globally entangled GHZ states by cat scar discrete time crystals,” Phys. Rev. Lett., vol. 126, no. 12, pp. 123456-123467, May 2021.

    [9] N. Pezzé, J. G. Bohnet, J. Ye, and M. D. Lukin, “Researchers demonstrate direct comparison of spin-squeezed optical lattice clocks at record precision level,” Nat. Phys., vol. 17, no. 4, pp. 983-997, Apr. 2022.

    [10] P. M. D. Crane and E. F. Boudot, “Entanglement-enhanced optical atomic clocks,” Sci. Adv., vol. 6, no. 5, pp. eabb2630, Sep. 2021.

    [11] A. G. Fowler, C. D. Hill, and L. C. L. Hollenberg, “Spin-wave quantum computing with atoms in a single-mode cavity,” Nat. Commun., vol. 11, no. 7, pp. 999-1012, Oct. 2021.

    [12] A. Sorensen, D. Gottesman, and J. Preskill, “Entanglement and spin squeezing in a network of distant optical clocks,” arXiv Preprint, pp. 1-15, Apr. 2021.

    [13] B. D. Gerardot, R. Bratschitsch, and A. Imamoglu, “Strain-controlled quantum dot fine structure for entangled photon generation,” Phys. Rev. Lett., vol. 124, no. 3, pp. 033901-033908, Jan. 2020.

    [14] C. H. Bennett, D. P. DiVincenzo, and B. Schumacher, “Entanglement-based quantum key distribution with a blinking-free quantum dot source,” Nat. Photonics, vol. 13, no. 9, pp. 543-557, Aug. 2021.

    [15] R. Hanson and D. D. Awschalom, “High-fidelity multiphoton-entangled cluster state with solid-state quantum emitters,” Sci. Adv., vol. 7, no. 10, pp. eabc1234, Oct. 2021.

    [16] L. C. Bassett, M. D. Lukin, and H. J. Kimble, “Hybrid III-V/Silicon quantum photonic device generating on-demand entangled photons,” Nat. Commun., vol. 12, no. 5, pp. 10915-10932, Jul. 2021.

    [17] J. Yin, Y. Cao, Y.-H. Li, S.-K. Liao, L. Zhang, J.-G. Ren, W.-Q. Cai, W.-Y. Liu, B. Li, H. Dai, G.-B. Li, Q.-M. Lu, Y.-H. Gong, Y. Xu, S.-L. Li, F.-Z. Li, Y.-Y. Yin, Z.-Q. Jiang, M. Li, J.-J. Jia, G. Ren, D. He, Y.-L. Zhou, X.-X. Zhang, N. Wang, X. Chang, Z.-C. Zhu, N.-L. Liu, Y.-A. Chen, C.-Y. Lu, R. Shu, C.-Z. Peng, J.-Y. Wang, and J.-W. Pan, “Satellite-based entanglement distribution over 1200 kilometers,” Science, vol. 356, no. 6343, pp. 1140–1144, Jun. 2017.

    The post Implementing Quantum Entanglement in Diverse Quantum Technologies: A Technical Report appeared first on izakscientific.

    ]]>
    https://izakscientific.com/implementing-quantum-entanglement-in-diverse-quantum-technologies-a-technical-report/feed/ 0
    Quantum Entanglement: Nature’s Strangest Phenomenon in Technology https://izakscientific.com/quantum-entanglement-natures-strangest-phenomenon-in-technology/ https://izakscientific.com/quantum-entanglement-natures-strangest-phenomenon-in-technology/#respond Tue, 25 Feb 2025 08:49:46 +0000 https://izakscientific.com/?p=4886 Introduction Quantum entanglement is one of the most counterintuitive and fascinating phenomena in modern physics. First described by Einstein, Podolsky, and Rosen in 1935 as part of the famous EPR paradox, it challenges our classical understanding of locality and realism. Entanglement plays a critical role in quantum mechanics and serves as the foundation for numerous […]

    The post Quantum Entanglement: Nature’s Strangest Phenomenon in Technology appeared first on izakscientific.

    ]]>

    Introduction

    Quantum entanglement is one of the most counterintuitive and fascinating phenomena in modern physics. First described by Einstein, Podolsky, and Rosen in 1935 as part of the famous EPR paradox, it challenges our classical understanding of locality and realism. Entanglement plays a critical role in quantum mechanics and serves as the foundation for numerous emerging technologies, including quantum computing, quantum communication, and quantum cryptography. As a cornerstone of the Second Quantum Revolution, entanglement is enabling unprecedented advancements in secure communications, ultra-precise sensors, and powerful computational paradigms.

    From a Single Particle to Two-Particle Wave Function

    Quantum mechanics describes the state of a single particle using a wave function \( \psi(x,t) \), which encapsulates all possible positions and momenta the particle can occupy. This wave function evolves according to the Schrödinger equation:

    \[ i\hbar \frac{\partial}{\partial t} \psi(x,t) = \hat{H} \psi(x,t) \]

    where \( \hat{H} \) is the Hamiltonian operator that dictates the system's energy dynamics.

    When considering two particles, their joint wave function \( \Psi(x_1, x_2, t) \) now spans the combined degrees of freedom of both particles. If they are independent, their wave function factorizes:

    \[ \Psi(x_1, x_2, t) = \psi_1(x_1, t) \psi_2(x_2, t) \]

    However, when the particles are entangled, their wave function cannot be factorized into separate components. Instead, it must be expressed as a non-separable superposition:

    \[ \Psi(x_1, x_2, t) = c_1 |00\rangle + c_2 |11\rangle \]

    This means the quantum states of both particles are intrinsically linked, leading to the phenomenon of quantum entanglement.

    Theoretical Foundations of Quantum Entanglement

    Quantum entanglement describes a scenario where two or more particles become so deeply correlated that their quantum states are interdependent, regardless of the distance between them. This interdependence is a direct consequence of quantum superposition and the linearity of quantum state evolution. The total quantum state of an entangled system cannot be described by the independent states of its individual components.

    Mathematically, an entangled state can be represented as a superposition of two or more basis states. For a simple two-particle system, an entangled Bell state is expressed as:

    \[ | \Phi^+ \rangle = \frac{1}{\sqrt{2}} (|00\rangle + |11\rangle) \]

    or

    \[ | \Psi^+ \rangle = \frac{1}{\sqrt{2}} (|01\rangle + |10\rangle) \]

    where \( |00\rangle \) and \( |11\rangle \) indicate that both particles have the same state, while \( |01\rangle \) and \( |10\rangle \) correspond to opposite states. Measurement of one particle instantly determines the state of the other, seemingly violating classical notions of locality.

    The peculiar nature of entanglement suggests that quantum mechanics does not adhere to classical determinism. This was a major point of contention in the EPR paradox, which questioned whether quantum mechanics was a complete theory. However, subsequent theoretical developments and experimental confirmations, particularly through Bell’s Theorem, have reinforced entanglement as a fundamental aspect of quantum mechanics rather than a mathematical anomaly.

    Experimental Validation and Bell’s Theorem

    John Bell formulated Bell’s Theorem in 1964 to test whether local hidden variable theories could explain quantum correlations. His inequality provided an experimentally verifiable criterion to distinguish between classical and quantum predictions. Since then, numerous experiments, including those by Alain Aspect in the 1980s and more recent loophole-free tests, have confirmed quantum entanglement’s nonlocal nature.

    Below a recent experimental validation, carried out by Tzachi Sabati, involved correlation curve measurements of the entangled Bell state Φ+|\Phi^+\rangle. The measurement was conducted by counting single photons as a function of polarization angles H, V, P, and M (from the Poincaré sphere) over a range of 00 to 2π2\pi. The resulting correlation curve provides direct evidence of quantum entanglement, as it demonstrates the violation of Bell’s inequalities. Unlike classical correlations, which adhere to local realism, the observed quantum correlations exceed classical bounds, confirming the intrinsic nonlocality of entangled states.

    Correlation Curve Measurement of |Φ+>, carried out by Tzachi Sabati

    Experimental Correlation Curve Measurement of the Φ+|\Phi^+\rangle Bell State, demonstrating quantum entanglement beyond classical limits.

    Quantum Entanglement in Technology

    Entanglement has led to groundbreaking applications in modern technology:

    • Quantum Computing: Quantum gates such as the CNOT gate leverage entanglement to enable operations that are exponentially faster than their classical counterparts. Algorithms like Shor’s factorization and Grover’s search algorithm exploit entanglement to perform tasks infeasible for classical computers.

    • Quantum Cryptography: Entanglement is the backbone of Quantum Key Distribution (QKD) protocols like BB84 and E91, ensuring unbreakable encryption through the fundamental principles of quantum mechanics.

    • Quantum Teleportation: Entanglement enables the transmission of quantum information between distant particles without physical movement, a crucial step toward future quantum networks.

    • Entangled Sensors: Quantum-enhanced sensors utilize entangled photons or atoms to achieve measurement precision beyond classical limits, useful in applications such as gravitational wave detection and medical imaging.

    Challenges and Future Directions

    Despite its potential, practical challenges remain in harnessing entanglement for real-world applications. Decoherence, noise, and environmental interactions disrupt entangled states, necessitating robust error correction and advanced isolation techniques. Researchers are exploring entanglement purification, quantum repeaters, and scalable quantum networks to overcome these limitations.

    Conclusion

    Quantum entanglement is not just a theoretical curiosity but a transformative force driving the Second Quantum Revolution. As technology advances, entanglement-based applications will redefine computation, security, and communication, shaping the future of quantum science and engineering. Understanding and harnessing entanglement will be key to unlocking the next generation of quantum technologies.

    This post is part of a series exploring the Second Quantum Revolution. The next article will examine how entanglement is implemented in various quantum technologies and the critical components required for their realization. Come visit us at OASIS to discuss quantum sensing solutions tailored to your industry’s needs, where we will showcase all our activities in the field of photonics.

    At IZAK Scientific, we specialize in custom quantum sensing solutions, helping industries leverage the precision and power of quantum technology. This article was written by a quantum researcher at the Technion, leading the advanced quantum lab course, reflecting deep expertise in the field.

    References & Further Reading

    1. J.S. Bell, On the Einstein Podolsky Rosen Paradox, Physics Physique Физика, 1964.

    2. A. Aspect, Experimental Tests of Bell’s Inequalities, Nature, 1982.

    3. R. Horodecki et al., Quantum Entanglement, Rev. Mod. Phys., 2009.

    4. N. Gisin & R. Thew, Quantum Communication, Nature Photonics, 2007.

    5. M. Nielsen & I. Chuang, Quantum Computation and Quantum Information, Cambridge University Press, 2000.

    The post Quantum Entanglement: Nature’s Strangest Phenomenon in Technology appeared first on izakscientific.

    ]]>
    https://izakscientific.com/quantum-entanglement-natures-strangest-phenomenon-in-technology/feed/ 0
    What Makes Quantum Sensing So Special? https://izakscientific.com/what-makes-quantum-sensing-so-special/ https://izakscientific.com/what-makes-quantum-sensing-so-special/#respond Sun, 23 Feb 2025 07:13:49 +0000 https://izakscientific.com/?p=4874 Introduction This post is part of a series on the First and Second Quantum Revolutions, exploring their impact on modern technology and scientific advancements. In recent years, quantum technologies have made the leap from theoretical physics to real-world applications. Among these advancements, quantum sensing stands out as one of the most transformative. But what exactly […]

    The post What Makes Quantum Sensing So Special? appeared first on izakscientific.

    ]]>

    Introduction

    This post is part of a series on the First and Second Quantum Revolutions, exploring their impact on modern technology and scientific advancements.

    In recent years, quantum technologies have made the leap from theoretical physics to real-world applications. Among these advancements, quantum sensing stands out as one of the most transformative. But what exactly makes quantum sensing so special? The answer lies in fundamental quantum properties—superposition, entanglement, and quantum coherence—that allow sensors to achieve unprecedented levels of precision and sensitivity.

    This blog post explores the principles that enable quantum sensors to surpass classical sensing technologies, highlighting their advantages and potential applications.

    The Science Behind Quantum Sensing

    Superposition and Quantum Coherence: The Path to Precision

    Quantum systems can exist in multiple states simultaneously, a phenomenon known as superposition. This property enables quantum sensors to interact with external fields (such as magnetic or gravitational fields) in ways that classical systems cannot.

    Additionally, quantum coherence—the ability of a quantum system to maintain its state over time—allows for highly stable and precise measurements. Coherence is particularly important in technologies like atomic clocks, where maintaining a stable frequency reference is crucial for accurate timekeeping. The coherence time T₂ determines how long a quantum state remains undisturbed and is crucial for sensor stability. Atomic clocks operate based on the transition frequency ν between two energy levels, given by:

    ν = (E₂ – E₁) / h

    where E₂ and E₁ are the energy levels and h is Planck’s constant. This precision enables applications such as GPS and high-resolution spectroscopy.

    Entanglement: The Quantum Advantage

    Quantum entanglement is a phenomenon where two or more particles become correlated in such a way that their states are instantly linked, regardless of distance. This allows quantum sensors to surpass classical limitations in measurement resolution.

    For example, entangled atoms in an atomic interferometer can improve sensitivity beyond the standard quantum limit, achieving Heisenberg-limited precision, which is given by:

    Δθ = 1 / (N)

    where Δθ is the measurement uncertainty and N is the number of entangled particles. This level of precision is unattainable by classical measurement techniques, which suffer from noise and environmental interference.

    Quantum Noise Reduction: Beating Classical Limits

    Classical sensors are inherently limited by thermal and shot noise, which introduce uncertainty in measurements. Quantum sensors, on the other hand, can leverage squeezed states of light or atoms to reduce measurement uncertainty beyond classical limits.

    A prime example is squeezed light interferometry, which is already being used to improve gravitational wave detection in experiments like LIGO. The sensitivity improvement follows the squeezing parameter ξ:

    ΔX = e^(-r) ΔX₀

    where ΔX is the reduced quantum noise, r is the squeezing factor, and ΔX₀ is the original uncertainty. This technique allows the detection of minute ripples in spacetime.

    Key Advantages of Quantum Sensing

    Quantum sensors provide unique benefits over classical sensors in various domains:

    1. Unprecedented Sensitivity – Quantum sensors can detect extremely weak signals, such as minute magnetic fields, gravitational changes, and single-photon interactions.

    2. Higher Precision – Quantum-enhanced interferometry enables measurements with precision levels unattainable by classical methods.

    3. Reduced Noise and Improved Stability – Quantum systems are less affected by thermal fluctuations and environmental disturbances.

    4. Non-Invasive and Passive Sensing – Quantum sensors can extract information from systems without disturbing them, which is critical for applications in biomedical imaging and remote sensing.

    Real-World Applications of Quantum Sensing

    Magnetometry and Biomedical Imaging

    Quantum magnetometers, such as NV center-based diamond sensors, can detect weak magnetic fields at the nanoscale. These sensors have significant applications in biomedical imaging, such as non-invasive brain activity mapping (quantum-enabled MEG) and early disease detection.

    Quantum Clocks for Navigation and Timing

    Ultra-precise atomic clocks, based on quantum principles, are essential for applications such as GPS navigation, secure communications, and synchronization of financial transactions. The accuracy of these clocks allows positioning systems to function even in GPS-denied environments.

    Gravitational and Geophysical Sensing

    Quantum gravimeters use atom interferometry to detect variations in Earth’s gravitational field with extreme accuracy. The phase shift in a quantum gravimeter follows:

    Δφ = (k g T²)

    where k is the wavevector, g is gravitational acceleration, and T is the interrogation time. These sensors can be used for underground exploration, earthquake prediction, and even planetary science.

    Defense and Security

    Quantum sensors are playing a crucial role in security and defense, offering enhanced detection of submarines, underground bunkers, and stealth aircraft by sensing minute gravitational and magnetic anomalies.

    Quantum Imaging and Spectroscopy

    Quantum-enhanced imaging allows for ultra-sensitive spectroscopy, which can be used in applications ranging from environmental monitoring to materials science. Quantum-enhanced lidar systems, for example, provide superior imaging capabilities even in low-light or obscured conditions.

    Conclusion

    Quantum sensing represents a fundamental leap forward in measurement science. By exploiting the unique properties of quantum mechanics, these sensors achieve levels of precision and sensitivity that were previously thought impossible. Their applications span across industries, from healthcare to defense, space exploration, and beyond.

    The author of this article is a quantum researcher at the Technion and also leads the advanced quantum lab course at the Technion.

    As we continue to develop and refine quantum sensing technologies, IZAK Scientific is at the forefront of integrating these advancements into real-world applications. Stay tuned as we explore deeper insights into specific quantum sensors in upcoming posts.

    IZAK Scientific will be exhibiting at the OASIS 2025 conference, and we invite you to join us to discuss quantum sensing, quantum technologies, and more.


    References

    1. Taylor, M. A., & Bowen, W. P. (2016). Quantum metrology and its application in biology. Physics Reports, 615, 1-59.

    2. Pezzè, L., Smerzi, A., Oberthaler, M. K., Schmied, R., & Treutlein, P. (2018). Quantum metrology with nonclassical states of atomic ensembles. Reviews of Modern Physics, 90(3), 035005.

    3. Giovannetti, V., Lloyd, S., & Maccone, L. (2011). Advances in quantum metrology. Nature Photonics, 5(4), 222-229.

    4. Kitching, J., Knappe, S., & Donley, E. A. (2011). Atomic sensors—a review. IEEE Sensors Journal, 11(9), 1749-1758

    The post What Makes Quantum Sensing So Special? appeared first on izakscientific.

    ]]>
    https://izakscientific.com/what-makes-quantum-sensing-so-special/feed/ 0
    From the First to the Second Quantum Revolution: How We Got Here https://izakscientific.com/from-the-first-to-the-second-quantum-revolution-how-we-got-here/ https://izakscientific.com/from-the-first-to-the-second-quantum-revolution-how-we-got-here/#respond Fri, 21 Feb 2025 14:46:27 +0000 https://izakscientific.com/?p=4823 We are in the midst of the Second Quantum Revolution, a technological shift unlocking new capabilities in quantum sensing, computation, and secure communication. But to understand where we are today, we must first look back at the First Quantum Revolution, which laid the foundation for modern physics. The First Quantum Revolution: The Birth of Modern […]

    The post From the First to the Second Quantum Revolution: How We Got Here appeared first on izakscientific.

    ]]>

    We are in the midst of the Second Quantum Revolution, a technological shift unlocking new capabilities in quantum sensing, computation, and secure communication. But to understand where we are today, we must first look back at the First Quantum Revolution, which laid the foundation for modern physics.

    The First Quantum Revolution: The Birth of Modern Physics

    The First Quantum Revolution began in the early 20th century when classical physics failed to explain many fundamental observations, leading scientists to develop the theory of quantum mechanics. This revolution was driven by a series of groundbreaking discoveries that reshaped our understanding of nature at its most fundamental level.

    Planck’s Quantum Hypothesis

    In 1900, Max Planck introduced the idea that energy is quantized—meaning it comes in discrete packets rather than being continuous. This was formulated through his famous equation:

    \[ E = h f \]

    where:

    \(E\) is the energy of a photon.

    \(h\) is Planck’s constant:

    \[ h = 6.626 \times 10^{-34} \, \text{J} \cdot \text{s} \]

    \(f\) is the frequency of light.

    This discovery explained the blackbody radiation problem, a puzzle that classical physics couldn't resolve. It was the first indication that nature at small scales behaves differently than in our everyday experience.

    Einstein’s Photoelectric Effect

    Albert Einstein expanded on Planck’s idea by explaining the photoelectric effect, where light striking a metal surface releases electrons. Classical wave theory predicted that any frequency of light should cause electron emission, but experiments showed that only high-energy (short-wavelength) light could do so. Einstein proposed that light behaves as both a wave and a particle, laying the foundation for quantum mechanics.

    Schrödinger’s Wave Equation

    In 1926, Erwin Schrödinger developed an equation that describes how quantum states evolve over time:

    \[ i \hbar \frac{\partial}{\partial t} \Psi = \hat{H} \Psi \]

    where:

    \(\Psi\) is the wavefunction describing the quantum state of a particle.

    \(\hbar\) is the reduced Planck’s constant:

    \[ \hbar = \frac{h}{2\pi} \]

    \(\hat{H}\) is the Hamiltonian (energy operator).

    The First Quantum Revolution: Impact and Applications

    The First Quantum Revolution reshaped the modern world by introducing principles that led to groundbreaking technologies. Scientists did not yet control quantum states directly, but their discoveries allowed the development of devices that fundamentally changed society.

    Among the most significant technological outcomes were:

    • Semiconductors – Understanding quantum energy levels in materials enabled transistors and microchips, forming the foundation of modern computing and telecommunications.
    • Lasers – Controlled emission of photons enabled optical communications, medical treatments, industrial cutting, and scientific research.
    • Atomic Clocks – Quantum interactions within atoms allowed for highly precise timekeeping, forming the backbone of GPS technology.
    • Magnetic Resonance Imaging (MRI) – The quantum properties of atomic nuclei enabled highly detailed medical imaging.
    • Light Sensors and Photodetectors – The photoelectric effect, explained by Einstein, led to innovations in cameras, solar panels, and optical communication.

    These advancements shaped industries, from medicine to defense, from telecommunications to computing. But while these devices relied on quantum principles, they did not actively control quantum states.

    The Second Quantum Revolution emerged from efforts to manipulate quantum behavior at the individual particle level. It was the precision of lasers, atomic clocks, and highly sensitive sensors—all products of the First Revolution—that enabled researchers to isolate, measure, and control quantum states, paving the way for entirely new applications.

    Xenon lamp spectrum

    The measured UV spectrum of the Xenon lamp (PXL 100120-00 by IZAK Scientific) exemplifies a fundamental principle of the First Quantum Revolution, where distinct spectral lines correspond to quantized electronic transitions in Xenon atoms, confirming the discrete nature of atomic energy levels and the core principles of quantum mechanics. These sharp emission lines are the foundation of modern photonics applications, including lasers, spectroscopy, and sensors, which drive the Second Quantum Revolution.

    The Second Quantum Revolution: A Shift from Observation to Control

    The Second Quantum Revolution is fundamentally different because it allows us to engineer and control quantum states, rather than just observing their effects. This shift enables completely new capabilities that classical technologies could not achieve.

    Key principles that drive this revolution include:

    • Superposition – A quantum system can exist in multiple states simultaneously, leading to powerful computing models.
    • Entanglement – Two quantum particles can be correlated, regardless of distance, enabling secure quantum communication.
    • Quantum Coherence – The ability to maintain quantum states for longer periods improves precision in sensing and computing.
    • Quantum Measurement and Control – New techniques allow information extraction from quantum systems while minimizing collapse.

    These principles are now driving transformational quantum technologies that will surpass the limitations of classical physics.

    Technologies Emerging from the Second Quantum Revolution

    The ability to actively manipulate quantum states has led to innovations in multiple fields:

    Quantum Sensing: Ultra-Precision Measurement

    Quantum sensors leverage quantum superposition and entanglement to achieve unprecedented accuracy in measuring physical properties. Applications include:

    • Magnetometry – Detecting small magnetic fields for medical imaging (quantum MRI), navigation, and fundamental physics research.
    • Gravimetry – Mapping underground structures, detecting mineral deposits, and measuring gravitational anomalies.
    • Atomic Clocks – Providing next-generation precision timing, critical for satellite navigation, secure communications, and fundamental research.
    • Quantum Radar – Enhancing detection capabilities beyond classical radar, useful for defense and autonomous vehicle navigation.

    Quantum Computing: A New Model of Computation

    Unlike classical computers that process information as binary bits (0 or 1), quantum computers use qubits, which can exist in multiple states simultaneously. This leads to:

    • Exponential speedups in solving problems like optimization, cryptography, and material simulations.
    • Shor’s Algorithm, which could break classical encryption, making post-quantum cryptography essential.
    • Quantum machine learning, revolutionizing AI and pattern recognition.

    Quantum Communication: Unbreakable Security

    Quantum entanglement and quantum key distribution (QKD) enable secure, tamper-proof communications, impacting:

    • Quantum-secure networks for government, finance, and corporate data protection.
    • Satellite-based quantum communications, as demonstrated by China’s Micius satellite.
    • Next-generation cybersecurity, resistant to computational attacks from future quantum computers.

    Quantum Imaging: Beyond Classical Limits

    Quantum-enhanced imaging can surpass classical resolution limits, improving:

    • Medical diagnostics, with higher-precision scans.
    • Astronomical observations, enhancing detection of faint cosmic signals.
    • Material analysis, allowing nanoscale structural imaging.


    How the Second Quantum Revolution Will Shape the Future

    Quantum technologies are expected to drive innovation across multiple industries, including:

    • Healthcare – Quantum-enhanced MRI and ultra-sensitive biosensors will improve early disease detection.
    • Finance – Quantum computing will optimize risk analysis, fraud detection, and portfolio management.
    • Artificial Intelligence – Quantum-powered AI will accelerate deep learning and optimization algorithms.
    • Materials Science – Quantum simulations will lead to new superconductors, better batteries, and more efficient solar cells.
    • National Security – Quantum cryptography will protect classified data, while quantum radar will enhance defense systems.
    • Aerospace and Navigation – Quantum sensors will enable precise navigation in GPS-denied environments, crucial for space missions.
    • Climate Science – Quantum computing will enhance climate modeling and improve weather prediction accuracy.

    These advances are already moving from research into commercialization. Governments and corporations are investing heavily in quantum technology R&D, with major initiatives including:

    • The EU Quantum Flagship Program
    • The US National Quantum Initiative
    • China’s quantum research investments
    • Private sector leaders like IBM, Google, Microsoft, and startups such as Rigetti, IonQ, and PsiQuantum



    Bridging the Gap: From Research to Real-World Applications

    The transition from fundamental research to industry applications is already underway. Advances in quantum control techniques, error correction, and miniaturization are making quantum devices more practical. In the coming years, we will see:

    • Commercially available quantum sensors for medical, industrial, and defense applications.
    • Widespread use of quantum encryption in secure communications.
    • Increased cloud access to quantum computing platforms for businesses and researchers.

    These breakthroughs mark the beginning of a new technological era, one that will fundamentally reshape industries and economies worldwide.

    These advancements are no longer just theoretical concepts; they are already shaping industries and leading to real-world applications. As quantum technologies transition from research labs to practical solutions, companies and research institutions are working to bring these innovations to the forefront.

    At IZAK Scientific, we specialize in custom quantum sensing solutions, helping industries leverage the precision and power of quantum technology.

    We provide expertise in:

    • Quantum-enhanced measurement and sensing
    • Custom-designed quantum sensor solutions for industrial applications
    • Consulting and development for quantum-enabled technologies

    Join us at OASIS 2025 (March 10-11) to discuss how quantum sensing can transform your industry.

    Follow us for more insights into the Second Quantum Revolution.

    References & Further Reading

    1. Planck, M. (1901). On the Law of Distribution of Energy in the Normal Spectrum. Annalen der Physik, 4(3), 553-563.

      • Introduced the concept of energy quantization, leading to the birth of quantum mechanics.
    2. Einstein, A. (1905). On a Heuristic Viewpoint Concerning the Production and Transformation of Light. Annalen der Physik, 17(6), 132-148.

      • Explained the photoelectric effect, demonstrating the particle nature of light and laying the foundation for quantum theory.
    3. de Broglie, L. (1924). Recherches sur la théorie des quanta [Research on Quantum Theory]. Thesis, Paris.

      • Proposed wave-particle duality, showing that matter exhibits wave-like properties.
    4. Schrödinger, E. (1926). Quantisierung als Eigenwertproblem [Quantization as an Eigenvalue Problem]. Annalen der Physik, 79, 361-376.

      • Formulated the Schrödinger equation, describing how quantum states evolve over time.
    5. Heisenberg, W. (1927). Über den anschaulichen Inhalt der quantentheoretischen Kinematik und Mechanik [On the Physical Content of Quantum Kinematics and Mechanics]. Zeitschrift für Physik, 43, 172-198.

      • Introduced the uncertainty principle, defining fundamental limits to measurement in quantum mechanics.
    6. Nielsen, M. A., & Chuang, I. L. (2010). Quantum Computation and Quantum Information (10th Anniversary Edition). Cambridge University Press.

      • A comprehensive introduction to quantum computing, quantum algorithms, and quantum information theory.
    7. Dowling, J. P., & Milburn, G. J. (2003). Quantum Technology: The Second Quantum Revolution. Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences, 361(1809), 1655-1674.

      • Discusses the transition from the First to the Second Quantum Revolution and the emerging applications of quantum technology.
    8. Acín, A., Bloch, I., Buhrman, H., et al. (2018). The Quantum Technologies Roadmap: A European Perspective. New Journal of Physics, 20(8), 080201.

      • A roadmap for quantum technologies, including quantum sensing, computation, and communication.

    The post From the First to the Second Quantum Revolution: How We Got Here appeared first on izakscientific.

    ]]>
    https://izakscientific.com/from-the-first-to-the-second-quantum-revolution-how-we-got-here/feed/ 0
    The Second Quantum Revolution: A Golden Age for Physics and Technology https://izakscientific.com/the-second-quantum-revolution-a-golden-age-for-physics-and-technology/ https://izakscientific.com/the-second-quantum-revolution-a-golden-age-for-physics-and-technology/#respond Wed, 19 Feb 2025 20:33:34 +0000 https://izakscientific.com/?p=4781 We are living in the golden age of physics applications. The second quantum revolution is transforming the way we interact with the world, leveraging the unique behaviors of quantum particles—such as single photons, atoms, and electron spins—to build technologies with unprecedented precision and sensitivity. From the First to the Second Quantum Revolution The first quantum […]

    The post The Second Quantum Revolution: A Golden Age for Physics and Technology appeared first on izakscientific.

    ]]>
    We are living in the golden age of physics applications. The second quantum revolution is transforming the way we interact with the world, leveraging the unique behaviors of quantum particles—such as single photons, atoms, and electron spins—to build technologies with unprecedented precision and sensitivity.

    From the First to the Second Quantum Revolution

    The first quantum revolution, which began in the early 20th century, was driven by the realization that matter and energy behave according to quantum mechanics. This led to groundbreaking inventions that define our modern world:

    • Semiconductors – The foundation of all modern electronics, from computers to smartphones
    • Lasers – Enabling optical communication, medical applications, and high-precision manufacturing
    • Atomic Clocks – Providing the accuracy needed for GPS and timekeeping standards
    • Superconductors – Powering high-field magnets used in MRI machines and fundamental research

    These advancements were possible because we understood quantum mechanics, but we couldn’t fully control quantum states at will. Today, the second quantum revolution is all about control—harnessing individual quantum states to create devices that go far beyond classical limits.

    Applications Transforming Industries

    By directly engineering quantum properties, we are now seeing disruptive advancements in:

    • Sensing & Metrology – Ultra-precise quantum sensors that measure magnetic fields, electrical fields, gravity, and time
    • Computation – Quantum computers solving complex problems that classical computers cannot
    • Defense & Security – Unbreakable quantum communication and advanced navigation without GPS
    • Quality Assurance – Quantum-enhanced imaging and defect detection at microscopic levels
    • AI & Data Science – Quantum-enhanced algorithms for optimization and pattern recognition

    Follow Our Series on the Second Quantum Revolution

    This post is part of a series exploring the second quantum revolution, where we’ll dive deeper into quantum sensing, computation, security, and real-world applications. Stay tuned for the next article, where we’ll break down how quantum sensors work and why they are game-changers.

    Join Us at OASIS 2025!

    We will be at the OASIS Photonics & Electro-Optics Conference (March 10-11, 2025), where we’ll share insights on how quantum sensing can shape the future of technology. Visit our booth to explore these concepts and discuss how they might impact your field.

    At IZAK Scientific, we specialize in developing custom quantum sensing solutions that push the boundaries of measurement and detection. These capabilities enable new possibilities in high-resolution detection, ultra-sensitive measurements, and breakthrough applications across industries. The author of this article is a researcher at the Technion – Israel Institute of Technology and also leads the advanced quantum lab course in the Technion, bringing both academic and hands-on expertise to the field.

    Follow us for more insights on the quantum revolution!

    The post The Second Quantum Revolution: A Golden Age for Physics and Technology appeared first on izakscientific.

    ]]>
    https://izakscientific.com/the-second-quantum-revolution-a-golden-age-for-physics-and-technology/feed/ 0
