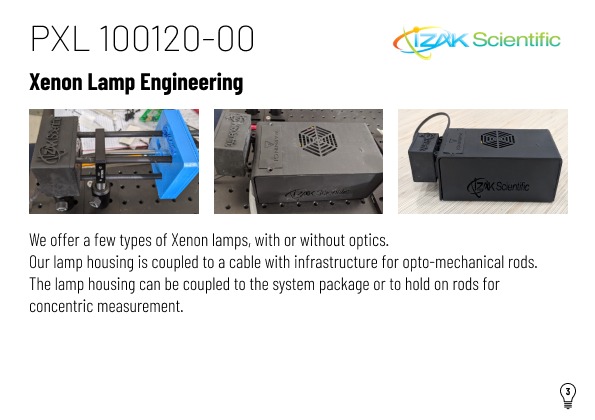

PXL Scientific - Pulsed Xenon Lamp Module

Pulsed Xenon Lamp Module for UV-VIS-IR emission operated as standalone or software driven or with analog input harness.

Operation modes

Standalone
The lamp is operated at a set repetition rate (e.g.1Hz) with a 12VDC input. The voltage can be set manually.

Software Driven
The Lamp is operated via embedded onboard software or software on a host PC via USB cable. A lamp control software application is needed.

Analog input
The lamp is separated with an external  16-pin analog harness. Users can set and get al parameters with an external controller. the system can optionally be packaged with NI sbRIO single-board controller and software application.

Description

Main Features:
  •  Voltage settings: 500V to 850V in 8 steps
  • Repetition rate: 0.2Hz to 2Hz or single pulse
  •   Electrical energy: up to few J/pulse (can be modified)
  • 12VDC input
Do you need more?
Most electronic, mechanical, and optical parameters can be customized upon request.
For more information contact us!

PXL Operation Modes

1.Standalone: The lamp is operated at a set repetition rate (e.g. 1Hz) with a 12VDC input. The voltage level can be set manually.

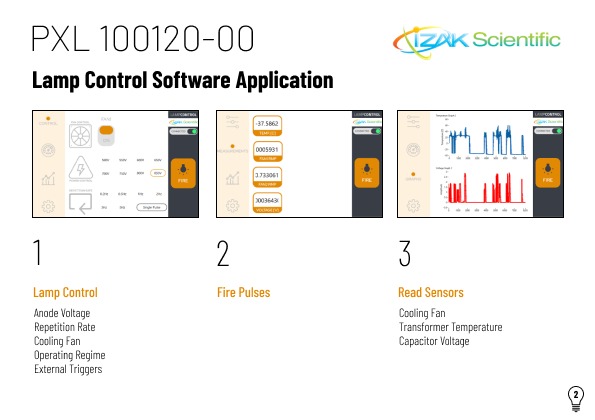

2.Software driven: The lamp is operated via embedded on-board software or software on a host PC via USB cable. Lamp Control software application is included.

3.Analog input: The lamp is operated with an external 16-pin analog harness. Users can set and get all parameters with an external controller. The system can optionally be packaged with an NI sbRIO single-board controller and software application.
